Broiler Breeder Automated Poultry Feeding System

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F03
Minimum Order Quantity: 1 house
Price: 3000 - 60000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Name: Female Male Parent Broiler Breeder Farming House Life Span: Over 15 Years
Breeder Feeder Pan: 8-9 Males/feed Pan Breeder Drinker: 8-10 Breeder/nipple Drinker
Application: Breeder Farming House Type: Fully Automatic Operation
High Light:

Automated Poultry Feeding System


100Kg poultry feeding system


175g broiler feeding system

Product Description

Automatic Broiler Breeder Female Male Farming Equipment for Parent Poultry House


Automatic Breeder House:


Female Male Parent Broiler Breeder Feeding Equipment For Automatic Breeding System House

Pan feeding line:There is a feed sensor at the end of each feeding line which controls motor on and off to achieve automatic feed delivery.

Installation layout picture of main feed line in chicken house:



Main features of broiler feed pan:

* Outside adjustment feed pan has 6 gears of feed amount,and the other kinds has 13 gears.

* Feed pan slide switch could adjust feed flow until it is filled.

* Outside adjustment feed pan is more convenient,accurate and quick to adjust feed flow,the operation is to hand by the out side grids and rotate up and down.

* Pan bottom can be disassembled on the fround,working for day-old chickens.

* V-Pan plate design can reduce feed storage on bottom,so birds can always eat fresh feed .The design can also prevent the birds from staying too long on the plate.

* The edge of pan plate tilt towards the center,which can avoid waste of food.

* The smooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.

* Feed pan installation has fixed type or swing type.



Automatic Breeder Farming House Equipment:



Name Specification
Feed box 250kgs/150kgs
Galvanized sheet
1.2mm thickness
Drive motor It could be adapted to any house situation.
High chain speed:36m/min
Motor output:1.5kw or 2.2kw depending on chain length
90° Corner The height of feed trough can be adjusted according to different raising period
Feed channel leg Height:23cm, width:9.5cm
Grille 1.5m/section
Have 4/5/6 wires to prevent cock
Width between two grills is 42mm
Feed channel Galvanized sheet
High tensile strength
Smooth chain works within feed channel



Female Breeder Chain Feeding System:


Driving motor:

use cycloidal-pin wheel reduce device, more stable and reliable convey feed equality, reduce noice than toothed wheel.

Feed trough bracket and connection:

They are liftable. We can adjust their height according different breeding stages. Bracket surface use hot galvanized

process, anti-corrosion, more suitable for poultry house environment.

90 degree corner wheel:

The wheel is after special hardening process, alloy bearing don't need oiling, have good wear resistance and long service


Feed trough:

made of wear-risistant and anti-rust material, have 44mm wide limited food grill, which can separate the hens and roosters

apart effectively, the limited food grill distance can also be customized.


imported from South Africa, have strong feed delivery speed, can reach 36m/minute.


We have 260Kg main hopper and 100Kg vice hopper, they are made of high quality galvanized sheet, there is cover plate

between hopper and trough interface, which is easy to adjust the height of feed level and to prevent feed spill.




Broiler Breeder Automated Poultry Feeding System 0


Female Breeder Pan:


Quantity(Birds/pa n) 14-16 -
Density(Birds/m2) 5-6.5 -
Max daily feed intake 175g -
Product specification - -
Feed pan Diameter 360mm
Feed pan Material pp
Feed pan Grill spacing width 40-50mm
Feed pipe Material Hot galvanized sheet
Feed pipe Distance between two pans 750mm,800mm,900mm
Drive unit Drive motor 2.2kw
Drive unit Conveying capacity more than 2000kg per h
Drive unit Conveying speed 36m per s
Feed hopper Capacity 250kgs or 400kgs
Feed hopper Max/1loop/1 drive unit 110m
Feed hopper Max/l loop/2 drive unit 110-300m



Breeders nipple drinking system:


1). Outside shell is made of pure engineering plastic, inner valve rod is made of stainless steel.

2). Feeding capability: 8-10 birds/drinker.

3). All nipples are anti-rusting, service life over 10 years.

4). Double-sealing structure, with good seal ability, avoid water leakage and its bad influence to chicken farm.

5). Valve rod is movable in 360 degree, it's suitable for all breeders to drink, from day-old chicks to adult chickens.

Pressure regulator( double barreled with large flow capacity)

1). Good regulating stability, high switching performance.

2). Sufficient water supply.

3). Recoil cleaning with good cleaning result, save time& water.

4). Good quality movable valve, easy to change

Waterline front system:

Front part is controller of water, it's main function is to adjust water supply pressure and stabilizing drinking volume.

This part is usually installed in control room.

1). Pressure regulator: make sure to supply stable water to drinking line. Anti-backlash device can discharge the

impurity in pipe.

2). Filter: clean water and avoid blocking nipples.

3). Water meter: measure water usage volume.

4). Doser: add medicine exactly to prevent disease.

Lifting& suspension system:

Correct height for drinking system is very important for chicken( both higher and lower can result chicken bone's

distortion, which is bad for chicken growth, also lead to water waste), it's easy to adjust drinking line height by winch.

Water display level tube:

Use high transparency& impact resistant meterial, it's sturdy and durable, easy to watch water level, easy to take down

and clean with this advanced design.



Automatic Breeder Nest System:



1. 1520(length)*1285(wideth)*1020 (height)mm size(with prevent perching line), 24 holes design, one nest hole size 380*250mm.


2. High quality 0.5mm Galvanized plate ,one set weight 47kg, zinc weight 275g/m2, reach international standards.


3. Use high-quality PVC pedal ,smooth and no thorns,better than wood.

4.The plastic trays made of modified material, strong and good toughness. Also can be galvanized sheet.



  • PVC don't deform, but the wood will bends after use some time.
  • PVC don't have burr, won't hurt chicken feet.
  • The wood is easy to produce the bacteria, PVC won't.
  • PVC material don't need fumigation, reduce the cost for exporting.
  • The using life of PVC is longer than wood.

Broiler Breeder Automated Poultry Feeding System 1

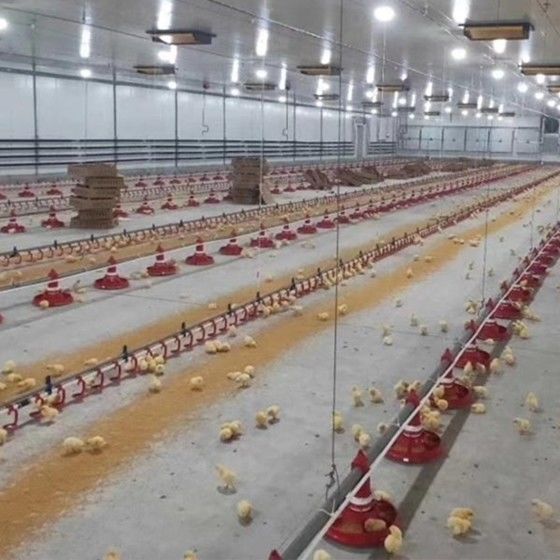

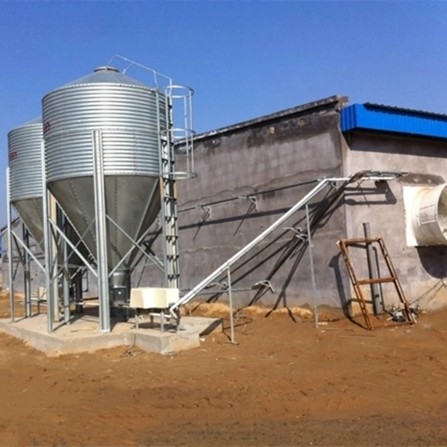

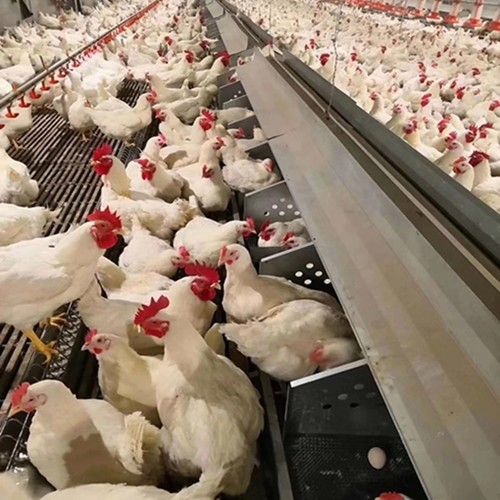

System Pictures:


Broiler Breeder Automated Poultry Feeding System 2


Broiler Breeder Automated Poultry Feeding System 3


Broiler Breeder Automated Poultry Feeding System 4
