24 Holes PVC Pipe Chicken Feeders And Water Systems

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F03
Minimum Order Quantity: 1 house
Price: 3000 - 50000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Name: Parent Breeder Farm House Life Span: Over 15 Years
Chicekn Feeder: 8-9 Males/feed Pan Chicken Drinker: 8-10 Breeders/nipple Drinker
Application: Breeder Raising Operation: Automatically
High Light:

PVC Pipe Chicken Feeders And Water Systems

,

47kg pvc pipe chicken feeder

,

24 Holes chain feeding system


Product Description

Automatic Broiler Breeder Female Male Farm Equipment for Poultry House



Automatic Poultry House:



1. Main feed line system: Silo /manpower hopper is the beginning of main feed line.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
2. Automatic pan feeding line system: There is a feed sensor at the end of each feeding line which controls motor one and off to achieve automatic feed delivery to each feed pan.
3. Automatic Nipple drinking line system: supply clean water to each nipple steady, chicken can drink water from 360
degree
freely
4. Ventilation system: make chicken shed keep suitable temperature for different stage chicken
5. Environment control system: A variety of environment controllers are customized from Israel,it can reach a most advanced control leave in poultry house control.
6. Cooling pad system: The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.
7. Fogging system: It is effectively tools for cooling,damping,dedusting and disinfecting the house.
8. Heating system: In winter or chicks,it make chicken house has a suitable temperature.





Automatic Poultry Keeping system:



1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.

2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.

4. Environmental control system: Automatically control the temperature, humidity, light, etc.

5. Fogging system: Regularly disinfecte the poultry house.

6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.

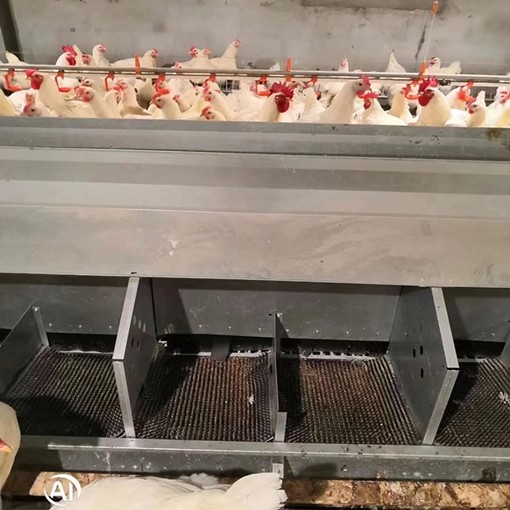

Automatic Breeder Nest System:





1. 1520(length)*1285(wideth)*1020 (height)mm size(with prevent perching line), 24 holes design, one nest hole size 380*250mm.



2. High quality 0.5mm Galvanized plate ,one set weight 47kg, zinc weight 275g/m2, reach international standards.



3. Use high-quality PVC pedal ,smooth and no thorns,better than wood.

4.The plastic trays made of modified material, strong and good toughness. Also can be galvanized sheet.



Advantages:

  • PVC don't deform, but the wood will bends after use some time.
  • PVC don't have burr, won't hurt chicken feet.
  • The wood is easy to produce the bacteria, PVC won't.
  • PVC material don't need fumigation, reduce the cost for exporting.
  • The using life of PVC is longer than wood.

24 Holes PVC Pipe Chicken Feeders And Water Systems 0





Female Breeder Chain Feeding System:



Driving motor:

use cycloidal-pin wheel reduce device, more stable and reliable convey feed equality, reduce noice than toothed wheel.

Feed trough bracket and connection:

They are liftable. We can adjust their height according different breeding stages. Bracket surface use hot galvanized

process, anti-corrosion, more suitable for poultry house environment.

90 degree corner wheel:

The wheel is after special hardening process, alloy bearing don't need oiling, have good wear resistance and long service

life.

Feed trough:

made of wear-risistant and anti-rust material, have 44mm wide limited food grill, which can separate the hens and roosters

apart effectively, the limited food grill distance can also be customized.

Chain:

imported from South Africa, have strong feed delivery speed, can reach 36m/minute.

Hopper:

We have 260Kg main hopper and 100Kg vice hopper, they are made of high quality galvanized sheet, there is cover plate

between hopper and trough interface, which is easy to adjust the height of feed level and to prevent feed spill.







24 Holes PVC Pipe Chicken Feeders And Water Systems 1



Coner wheel:

90 degree hgih strength angle wheel, drive gear and corner wheel are made of wear resistant material, and after hgih frequency quenching, high hardness, wear resistance.

Chain: South Africa champion brand chain, the world's best chain, high tensile strength, long service life.

Layout

24 Holes PVC Pipe Chicken Feeders And Water Systems 2





Patented plastic scraper chain feeding system for female breeder



1.To obtain a national invention patent.

2.Equipment in operation, if a failure to achieve automatic alarm and stop, protect the system from damage.

3.Fast Feed conveying speed, significantly reduce the feed intake differences, improve the uniformity of flocks.

4.As the scraper is a plastic product, in the feeding process, almost no wear galvanized chicken layer, can significantly improve the service life of equipment.

5.Due to the unique structure of the reason, chain scraper maintenance is extremely simple, one operation, a few minutes to complete.

6.New chicken scraper chain conveyor feeder Since its inception, after many poultry farms using practise approved that: the advantages are very prominent, can completely replace or eliminate the traditional chain plate feeding system.

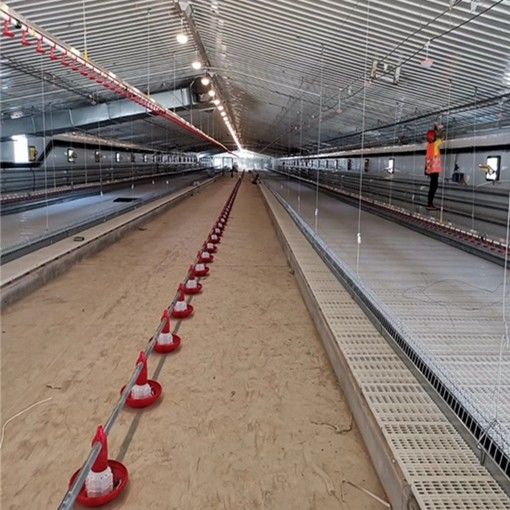

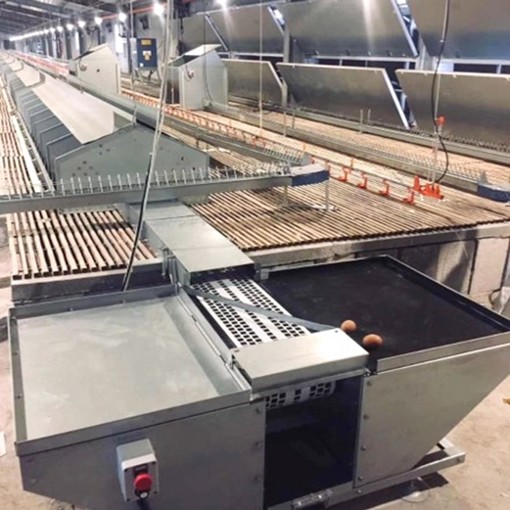

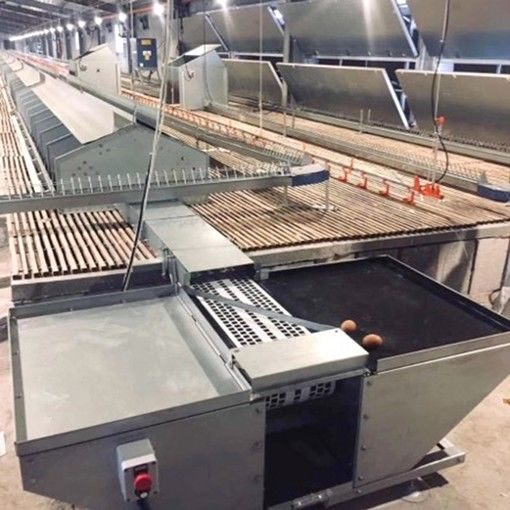

System Pictures:



24 Holes PVC Pipe Chicken Feeders And Water Systems 3



24 Holes PVC Pipe Chicken Feeders And Water Systems 4



24 Holes PVC Pipe Chicken Feeders And Water Systems 5
