Farming Equipment Poultry Pan Feeding System Automatic Breeder Parent Chicken Drinking

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 100 pcs
Price: 45 - 60 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Breeder Feed System Application: Breeder Farm Shed
Voltage: 1 Phase 110V/220V, 3 Phase 220V/380V Advantage: High Rigidity
Drive Motor: 0.75kW, 1.1kW, 1.5kW Applicable: Poultry Farm Shed
Whatspp: 008618830728667
High Light:

farming equipment poultry pan feeding system


farming equipment poultry pan feeding system


pan feeding system for broiler farming

Product Description


Poultry Farming Equipment Automatic Breeder parent Chicken Drinking Feeding System


chicken farm equipment other Other breeding equipment


Open system, visual inspection, easy to operate and control 2. Convenient and quick maintenance 3.Grille controlit can effectively separate the cock to the hen,no selective feeding 4. There is no pressure in the feeding environment for cocks and hens 5. The effect of breeding and egg production is much better 6. After feeding, the suspension of the system does not occupy space, so as to increase the movement space ofchickens

Main components Features&Function
Vice hopper hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional).
Feed bolts Interface diameter is 45mm, including galvanized grid
Feed pipe double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option)
Helical auger Imported from South Africa
Feed pan 14 or 16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed.
Control pan Including imported feed sensor, High sensitivity
Suspension system Consist of steel wire rope, nylon rope, clips,winch,pulley,etc.
Driving motor

Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V,

Frequency:50hz/60hz, three phase/single phase


The motor:

Strong motor power and good quality,
can drive 250m long chain feed line


The grille
Chickens can eat feed in an orderly manner,
prevent chickens from stepping on the feed


chain conveyor
The chain is the whole imported chain from South Africa.The chain is made of high strength spring steel,prevent deformation and fracture,distributing feed 36m/min
Feed Trough
made of 1.2mm thick galvanized metal sheet
Corner wheel
The retraction wheel is made of high-strength alloy steel with high hardness, quenching hardness HRC50-52. Wheel shaft has high strength and the bearings is free maintenance.
Corner shell outer has anti-static spray treatment.
Feed bin
The feed quantity regulator is designed and the feed quantity in the feed box can be adjusted to 7 levels. By rotating the button for debugging.There is a return wheel in the box.

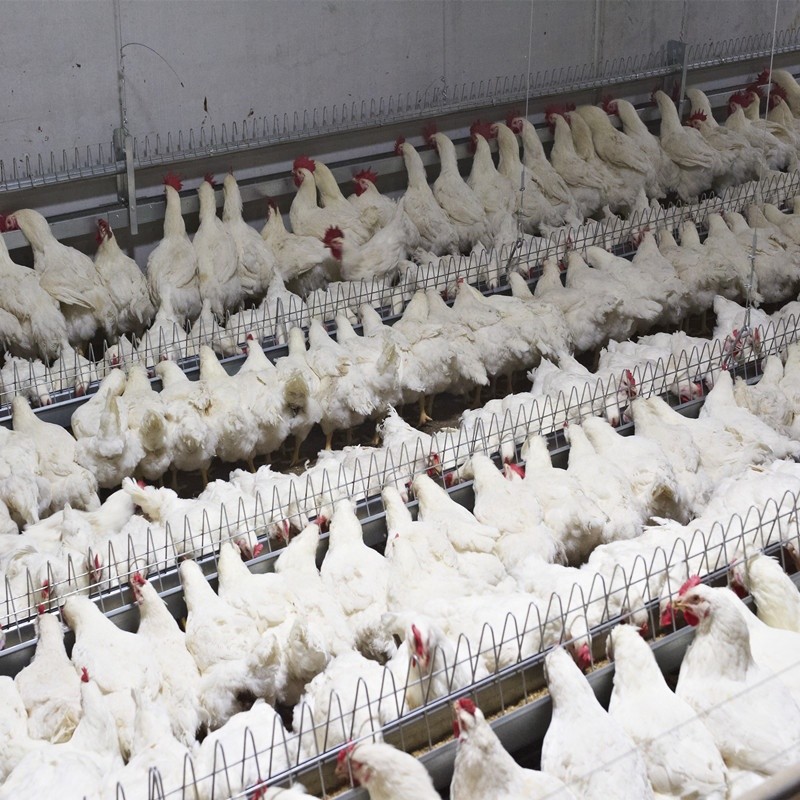

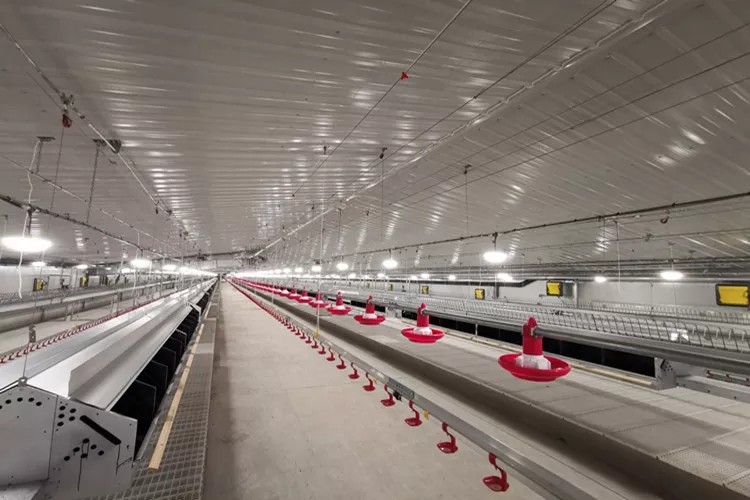

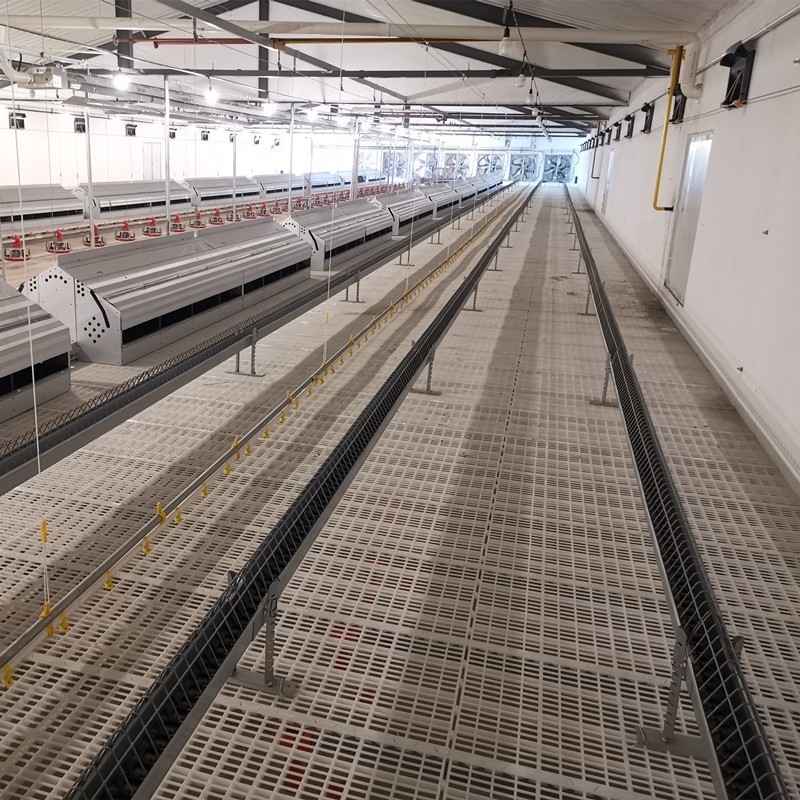

System Pictures:

Farming Equipment Poultry Pan Feeding System Automatic Breeder Parent Chicken Drinking 0Farming Equipment Poultry Pan Feeding System Automatic Breeder Parent Chicken Drinking 1
