Automatic Level Controller Feed Level Sensor Feeding Line Bin Capacity

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 110- 250 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Feed System Application: Poultry Farm Shed
Voltage: 1-phase 110V/220V, 3 Phase 220V/380V Advantage: High Rigidity
Drive Motor: 0.75kW, 1.1kW, 1.5kW Applicable: Poultry Farm Shed
High Light:

automatic feed level sensor

,

bin capacity feed level sensor


Product Description

poultry farm equipment chicken broiler feeder pan automatic level controller feeding line bin capacity feed level sensor







Color
Blue or orange
Size
Diameter 30mm X Length 80mm + 18mm
Material
Nylon 66
Weight
800g/pc
Theory
Controls motor on and off to achieve automatic feed delivery
Advantage
Can replace any mechanical feed micro switch
Application
Chicken,duck,goose rear feeding system
Installation
Installed inside the feed pan(connect to open)
Switch type
Electronic Control Switch
Notice
This sensor can't be used on the explosive place

Feed Level Sensor Introduction:
1. Theory of chicken feeding line feed level sensor
When feed sensor is installed inside the feed pan(connect to open),driving motor starts work to convey feed , when feed sensor does not touch feed,and it shops conveying feed when feed sensor touch feed (for main feed line and pan feeding line use)when feed sensor is installed at the bottom of feed bin (connect to close),
the function is opposite to the above situation.

2. Installation of chicken feeding line feed level sensor
Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper in each feeding line.
3. Feature of chicken feeding line feed level sensor
1.At the end of the main feeding line or in the feeding pan
2.Widely used in feeding line to automatic control of opening and closing of the drive motor
3.Automatic transport the feeder
4. Principle of chicken feeding line feed level sensor
The level sensor is an Electronic Control Switch which is started by most of the raw material. Once the raw material approach to the top of sensor, this switch will on work.




System Pictures:

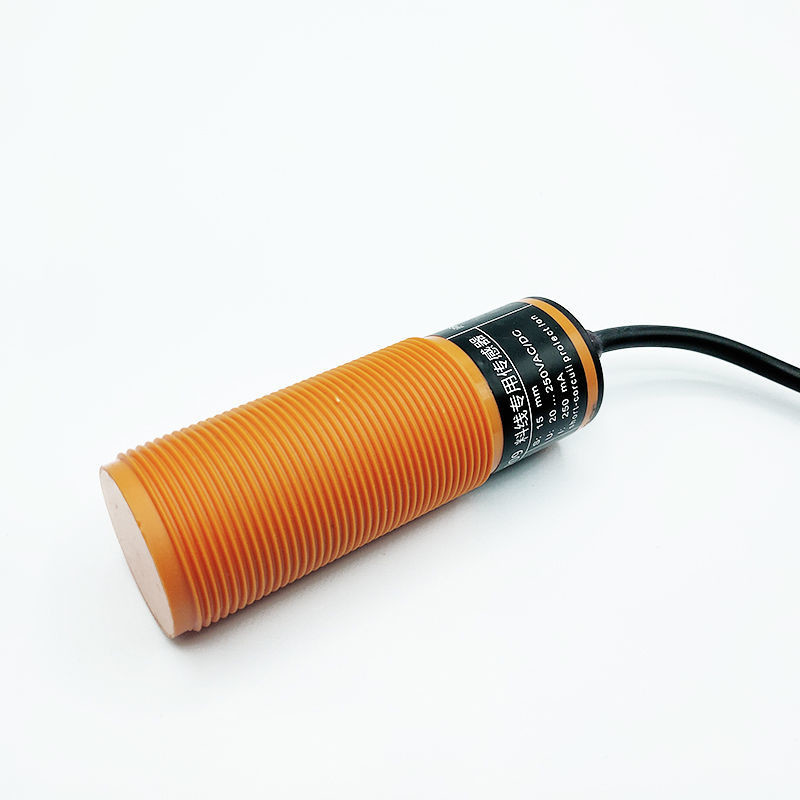

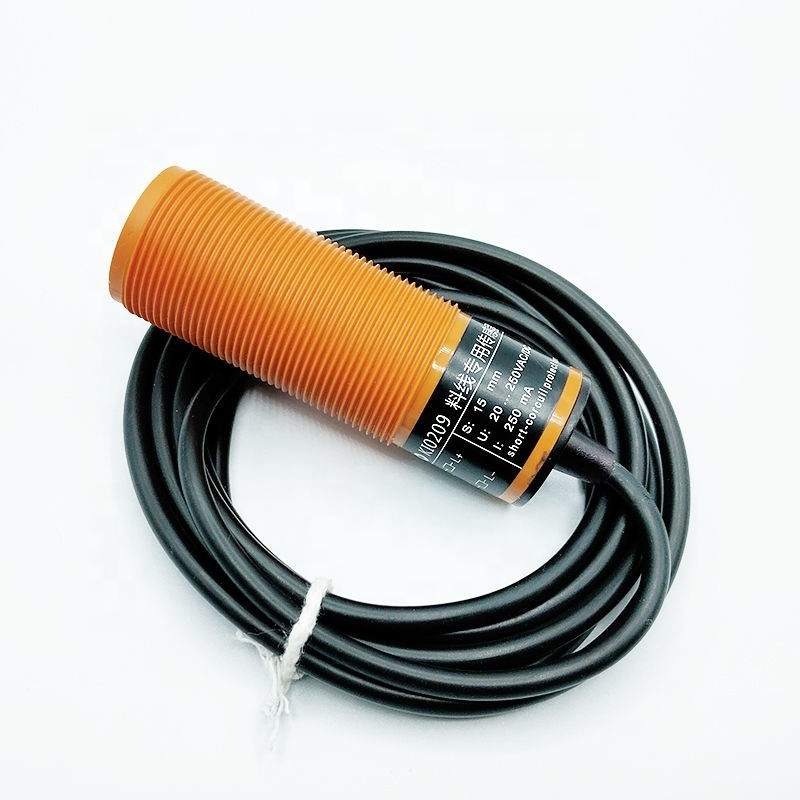

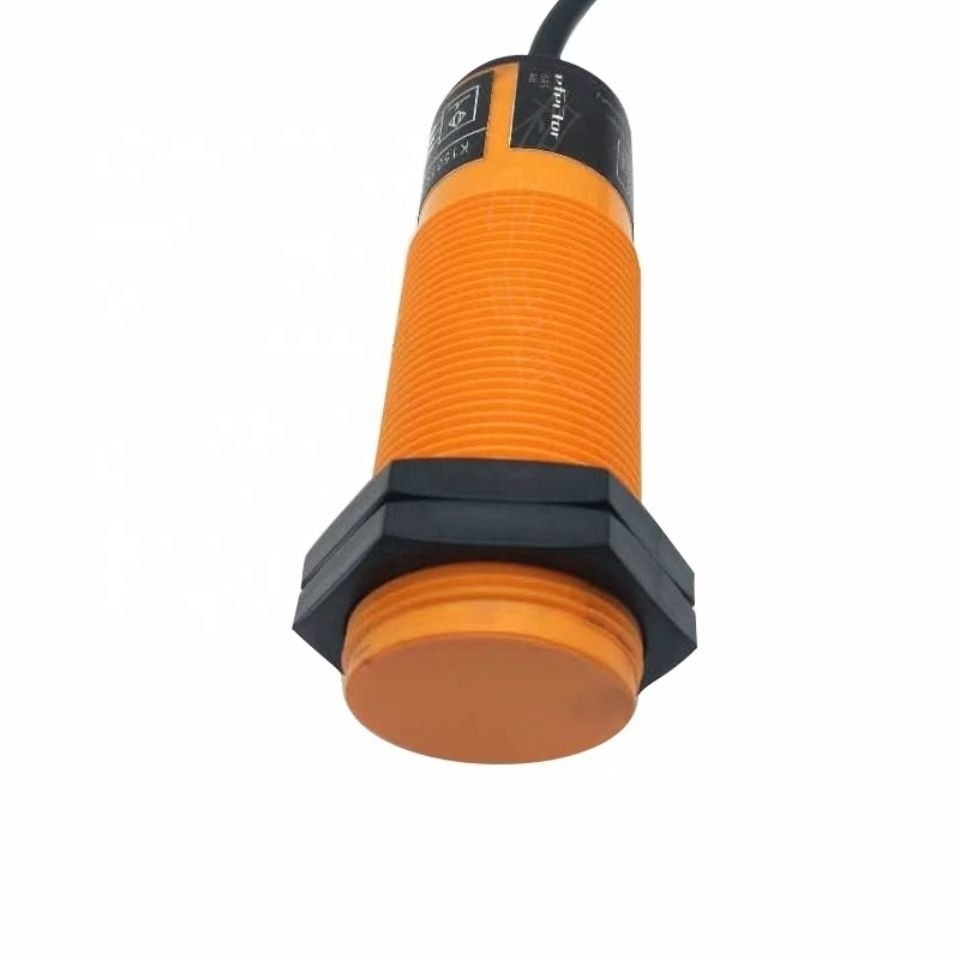

Automatic Level Controller Feed Level Sensor Feeding Line Bin Capacity 0Automatic Level Controller Feed Level Sensor Feeding Line Bin Capacity 1Automatic Level Controller Feed Level Sensor Feeding Line Bin Capacity 2
