Water Line Automatic Pan Feeding System Chicken Poultry Nipple Drinking Equipment

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 100 pcs
Price: 45 - 60 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Feed System Application: Poultry Farm Shed
Voltage: 1-phase 110V/220V, 3 Phase 220V/380V Advantage: High Rigidity
Drive Motor: 0.75kW, 1.1kW, 1.5kW Applicable: Poultry Farm Shed
High Light:

water line automatic pan feeding system

,

nipple drinking automatic pan feeding system


Product Description

Factory Price End Line Feeder Pan Sensor For Broiler Chicken Feeding Pan Poultry Equipment Extra Sensor







No
Item
Specifications
1
High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2
V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L, Material: hot-dip galvanized sheet
3
Feeding Pipe
3m 4holes
Diameter: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
4
South African Auger
Feeding Capacity: 450kg/h
5
Germany Capacitive Level Sensor
Time delay range 0 to 2 hours
6
Hanging System
All the required parts including the winches


chicken farm equipment other Other breeding equipment



1. Main Feed line System

silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper in each feeding line.



silo with standard ladder and guard railing is safe and reliable.

solid connection and good sealing prerformance





manpower

Volume: 600kg 800kg 1200kg

driving motor:

power:0.75kw/1.1kw/1.5kw voltage:0.75kw/1.1kw/1.5kw Frequency:50hz/60hz, 3phase/1phase

Feed sensor: IFM brand from Germany.



2.Automatic Pan Feeding Line System

The feed in the silo is transported to the hopper of the feed line,And the transmission closure of the driving motor is controlled by the feed level sensor.

TubeΦ45mm diameter

material:hot-dip galvanized steel pipe with the zinc coating amount of more than 275/m2

Auger: Helical spring auger imported from South Africa,

Feeding ability:450kg/h

Pan Feeder4 pans/3 meters, 3 pans/3 meters.

Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.

when feed sensor is installed inside the feed pan(connect to open),driving motor starts work to convey feed , when feed sensor dose not touch feed,and it shops conveying feed when feed sensor touchs feed (for main feed line and pan feeding line use)



feed pan

feedpan slide switch could adjust feed flow until it is filled.

pan bottom can be disassembled on the ground,working for day-old chicken.

V-pan place design can reduce feed storage on bottom, so birds can always eat fresh feed. the design can also prevent birds from staying too long on the plate.

the edge of pan plate tilt towords the center, which can avoid waste of food.

thesmooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.

feed pan installation has fixed type or swing type.





1. High-quality special driving reduction motor.
Power: 0.75kw, Voltage: 380V Frequency: 50Hz, Three-phase
2. V-shaped Bin ( with Hopper)
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-DIP galvanized sheet
3. Feeding system
Diameter of conveying pip: 45mm
Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 G/M2
Helical spring auger from South Africa, feeding capacity: 450kg/h.
4.Material level sensor from Germany: Time delay range 0 to 2 hours.

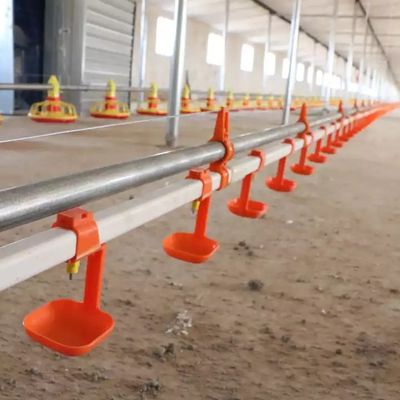

System Pictures:


Water Line Automatic Pan Feeding System Chicken Poultry Nipple Drinking Equipment 0Water Line Automatic Pan Feeding System Chicken Poultry Nipple Drinking Equipment 1
