| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F01 |
| Minimum Order Quantity: | 100 pcs |
| Price: | 45 - 60 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 - 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 houses per month |
| Type: | Fully Automatic Feed System | Application: | Poultry Farm Shed |
|---|---|---|---|
| Voltage: | 1-phase 110V/220V, 3 Phase 220V/380V | Advantage: | High Rigidity |
| Drive Motor: | 0.75kW, 1.1kW, 1.5kW | Applicable: | Poultry Farm Shed |
| High Light: | end line pan feeder sensor,poultry equipment feeder sensor |
||
Factory Price End Line Feeder Pan Sensor For Broiler Chicken Feeding Pan Poultry Equipment Extra Sensor
chicken farm equipment other Other breeding equipment
1. Main Feed line System
silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper in each feeding line.
silo with standard ladder and guard railing is safe and reliable.
solid connection and good sealing prerformance
manpower
Volume: 600kg 800kg 1200kg
driving motor:
power:0.75kw/1.1kw/1.5kw voltage:0.75kw/1.1kw/1.5kw Frequency:50hz/60hz, 3phase/1phase
Feed sensor: IFM brand from Germany.
2.Automatic Pan Feeding Line System
The feed in the silo is transported to the hopper of the feed line,And the transmission closure of the driving motor is controlled by the feed level sensor.
TubeΦ45mm diameter
material:hot-dip galvanized steel pipe with the zinc coating amount of more than 275/m2
Auger: Helical spring auger imported from South Africa,
Feeding ability:450kg/h
Pan Feeder4 pans/3 meters, 3 pans/3 meters.
Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.
when feed sensor is installed inside the feed pan(connect to open),driving motor starts work to convey feed , when feed sensor dose not touch feed,and it shops conveying feed when feed sensor touchs feed (for main feed line and pan feeding line use)

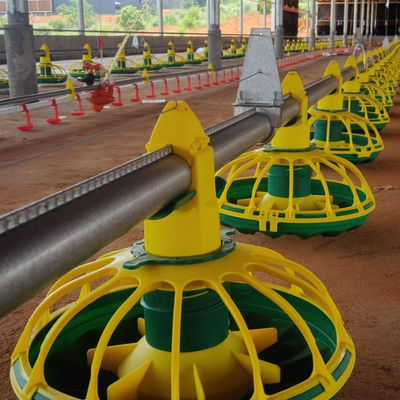

feed pan
feedpan slide switch could adjust feed flow until it is filled.
pan bottom can be disassembled on the ground,working for day-old chicken.
V-pan place design can reduce feed storage on bottom, so birds can always eat fresh feed. the design can also prevent birds from staying too long on the plate.
the edge of pan plate tilt towords the center, which can avoid waste of food.
thesmooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.
feed pan installation has fixed type or swing type.
System Pictures:
