Chicken Farm Chain Automatic Pan Feeding System 1 Phase

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 100 pcs
Price: 45 - 60 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Feed System Application: Poultry Farm Shed
Voltage: 1 Phase 110V/220V, 3 Phase 220V/380V Advantage: High Rigidity
Drive Motor: 0.75kW, 1.1kW, 1.5kW Applicable: Poultry Farm Shed
Whatsapp: 008618830728667
High Light:

chain automatic pan feeding system


1 phase automatic pan feeding system


1 phase pan feeder system

Product Description

Chicken Farm Chain Feeding Line System Machine Poultry Automatic Feeder Breeding Equipment Price


chicken farm equipment other Other breeding equipment


1. Open system, visual inspection, easy to operate and control 2. Convenient and quick maintenance 3.Grille controlit can effectively separate the cock to the hen,no selective feeding 4. There is no pressure in the feeding environment for cocks and hens 5. The effect of breeding and egg production is much better 6. After feeding, the suspension of the system does not occupy space, so as to increase the movement space ofchickens


motor 2.2kw
convey speed 36m/min
grille dia.4mm
feed bin 1.5mm thick galvanized sheet



Volume: 600kg 800kg 1200kg

driving motor:

power:0.75kw/1.1kw/1.5kw voltage:0.75kw/1.1kw/1.5kw Frequency:50hz/60hz, 3phase/1phase

Feed sensor: IFM brand from Germany.


2.Automatic Pan Feeding Line System

The feed in the silo is transported to the hopper of the feed line,And the transmission closure of the driving motor is controlled by the feed level sensor.

TubeΦ45mm diameter

material:hot-dip galvanized steel pipe with the zinc coating amount of more than 275/m2

Auger: Helical spring auger imported from South Africa,

Feeding ability:450kg/h

Pan Feeder4 pans/3 meters, 3 pans/3 meters.

Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.

when feed sensor is installed inside the feed pan(connect to open),driving motor starts work to convey feed , when feed sensor dose not touch feed,and it shops conveying feed when feed sensor touchs feed (for main feed line and pan feeding line use)


feed pan

feedpan slide switch could adjust feed flow until it is filled.

pan bottom can be disassembled on the ground,working for day-old chicken.

V-pan place design can reduce feed storage on bottom, so birds can always eat fresh feed. the design can also prevent birds from staying too long on the plate.

the edge of pan plate tilt towords the center, which can avoid waste of food.

thesmooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.

feed pan installation has fixed type or swing type.

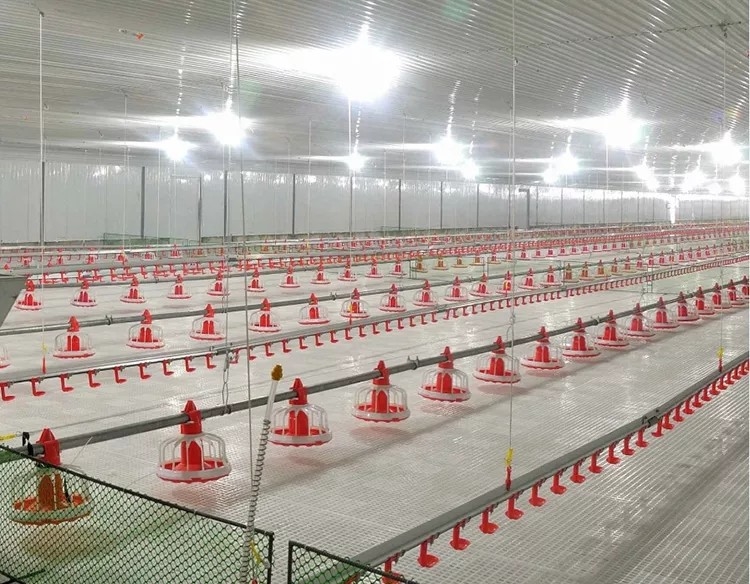

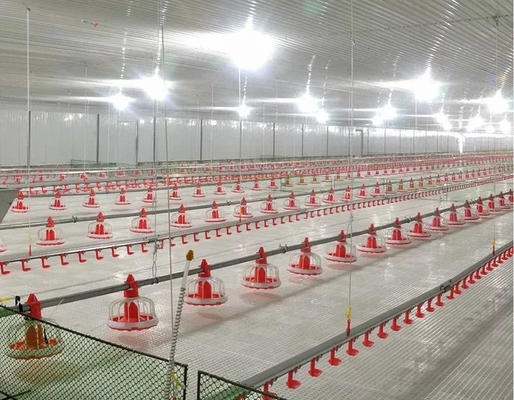

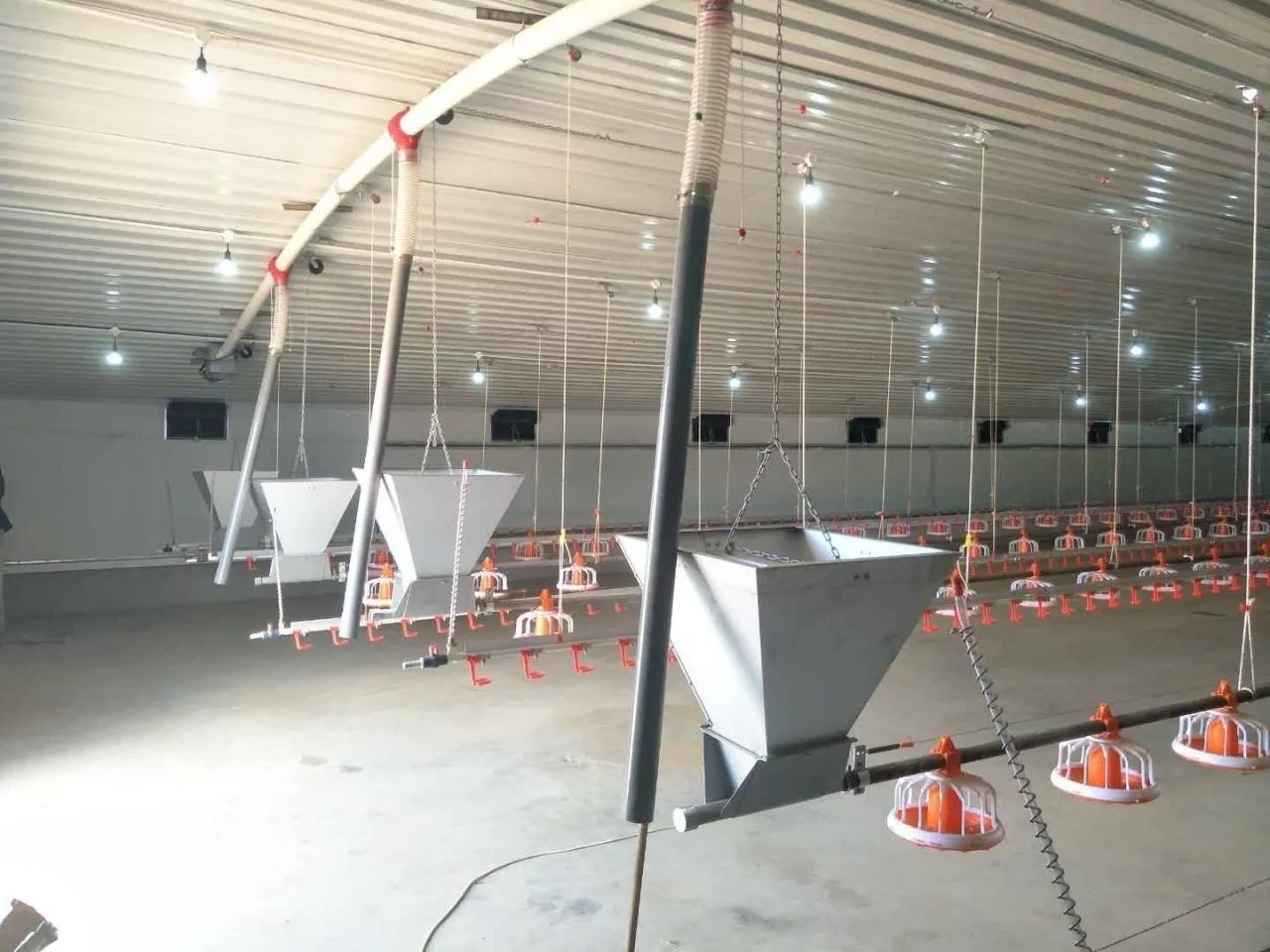

System Pictures:

Chicken Farm Chain Automatic Pan Feeding System 1 Phase 0Chicken Farm Chain Automatic Pan Feeding System 1 Phase 1
