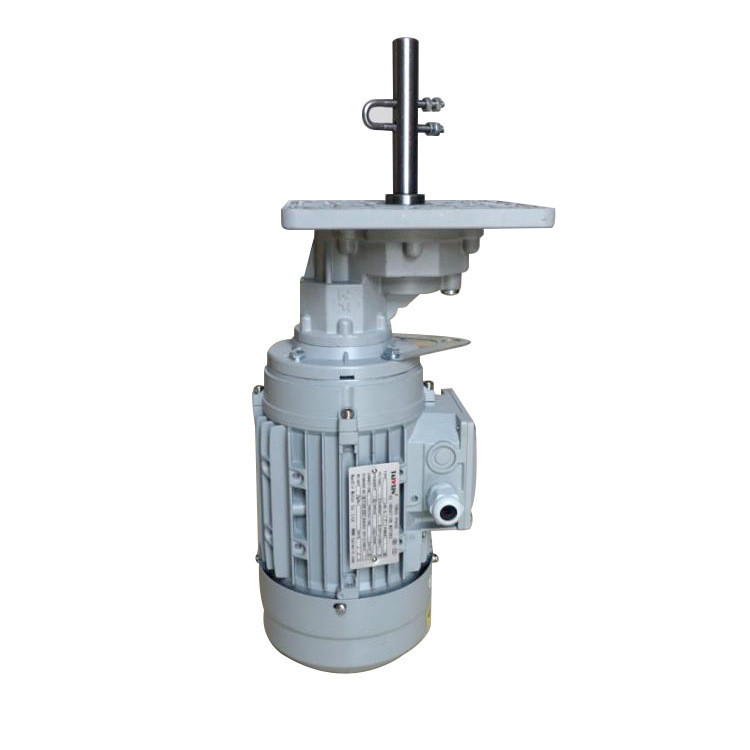

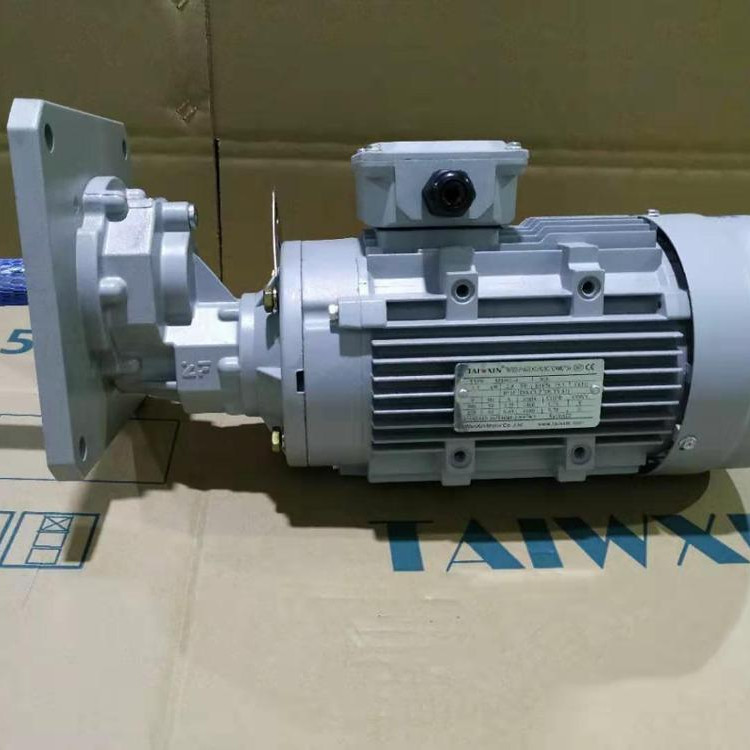

0.75 Kwatt Poultry Parts Gear Drive Engine Motor

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 110- 250 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Feed System Application: Poultry Farm Shed
Voltage: 1-phase 110V/220V, 3 Phase 220V/380V Advantage: High Rigidity
Drive Motor: 0.75kW, 1.1kW, 1.5kW Applicable: Poultry Farm Shed
High Light:

0.75 kw poultry parts

,

motor poultry parts


Product Description

Poultry feeding poultry farming Gear Motor Italy Gear Motor For Feeding Line Poultry Farm System From AGRIESO Feeding Line Motor 0.75 KW 1.1kW 1.5kW 0.75 Kw Italy Feeding Line Poultry Farm System Poultry farm farming Gear Drive Engine Motor





WANSHSIN Seikou(Hunan) Co.,Ltd starts producing medium gear motor in 2009, Last year the sales volume for this product is 35 million usd, now is top 3 brand in China. We have more advantages as below:

✩ Full Power
100% pure copper coils
✩ Specail lubricating oil
✩ Low noise
✩ Maintanance free
✩ Long service life
Low temperature rise, working temperature 65℃ (with load)


Diameter of conveying pipe: φ45mm
Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h

Material level sensor from Germany time delay range 0 to 2 hours





Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to tansport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop.







Power
550W-1500W
Output Shaft (mm)
19 / 20 / 25 / 28 / 32 / 35
Voltage
1-phase 110V/220V
3-phase 220/380V
Fan
Optional
Type
GV-flange mounted
Application
Watering / Feeding / Climate system
Control and housing solution

Delivery pipe&Auger

Feed pipe material:hot dip galvanized steel pipe(275g/m2 zinc coating)
Conveying pipe:3m with 3 pan or 3m with 4 pan
Diameter:45mm, Thickness:1.2mm
Auger--imported from South Africa.
Feeding ability:400kg/h



Motor:

China motor

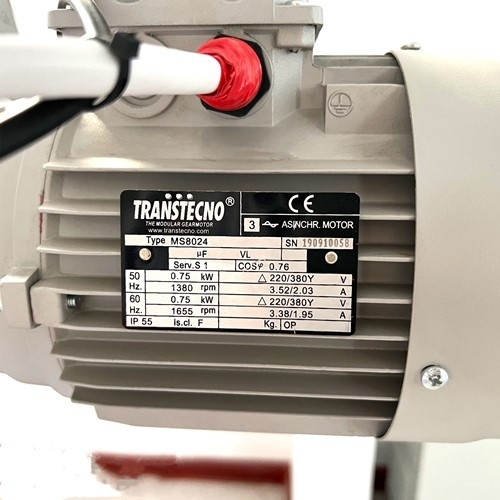

Power: 0.75kw voltage: 380v, frenquency:50hz, 3phases
Transmission speed: 450kg/h





Name
Package Size

Nipple Material
ABS plastic; POM plastic; 304 stainless steel

Drinking pipe diameter
22x22mm(square pipe)/25mm (round pipe)

5Package
500pcs/CTN

Package Size
50*51*68.5cm

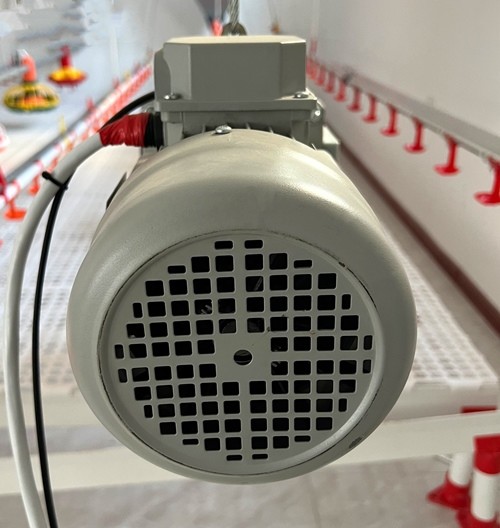

System Pictures:
