50 Broiler Chicken Fully Automatic Pan Feeding System

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-PG09
Minimum Order Quantity: 1pc
Price: 40 - 45 USD/pc
Packaging Details: Standard
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10sets per day
Detail Information
Product: Chicken Feeding Lines Application: Poultry House Feeding System Line
Feather: Life Over 10 Years Lead Time: 15 Days
Contact: Whatsapp 008618830728667 Water: Nipple Drinking Lines
High Light:

broiler automatic pan feeding system


fully automatic pan feeding system


50 automatic chicken feeder system

Product Description

Fully Automatic Feeding Line System Pan Feeder Nipple Drinker Poultry Farming Equipment for broiler chicken products


Poultry Equipment Chicken Chain Feeder Pan Feeding System




1.Main feed line system:

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the

end of main feed line which controls motor on and off to achieve automatic feed delivery.


Material :hot galvanized, Al-Zn coating

Sheet thickness: 1.5mm

Capacity: 800-1000kg

Feed tube: 75mm/90mm

Auger: South Africa imported

Motor: 220/380v, 0.75/1.1kw, Taiwan brand

Sensor: Germany/Israel imported, high sensitivity

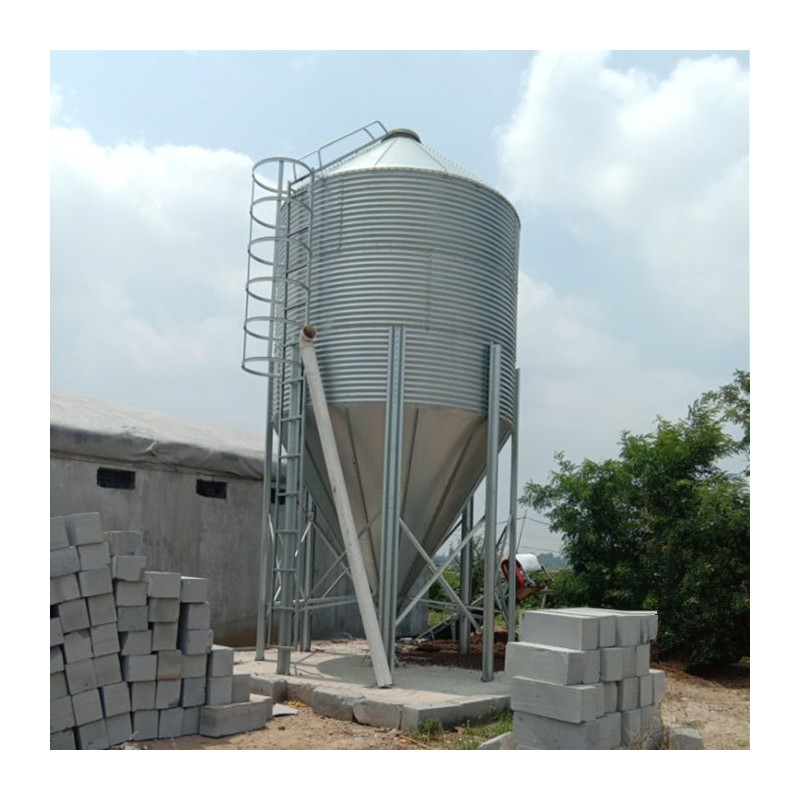

Silo: 2.5 ton-25 ton


Vice hopper
Hot dip galvanized , sheet thickness: 1.00 mm
Delivery pipe
Hot dip galvanized, Dia: 45mm, 3m/set with 4 holes
Driving motor
380V, 50HZ or 60HZ, 750W
Average transport capacity
450kg per h

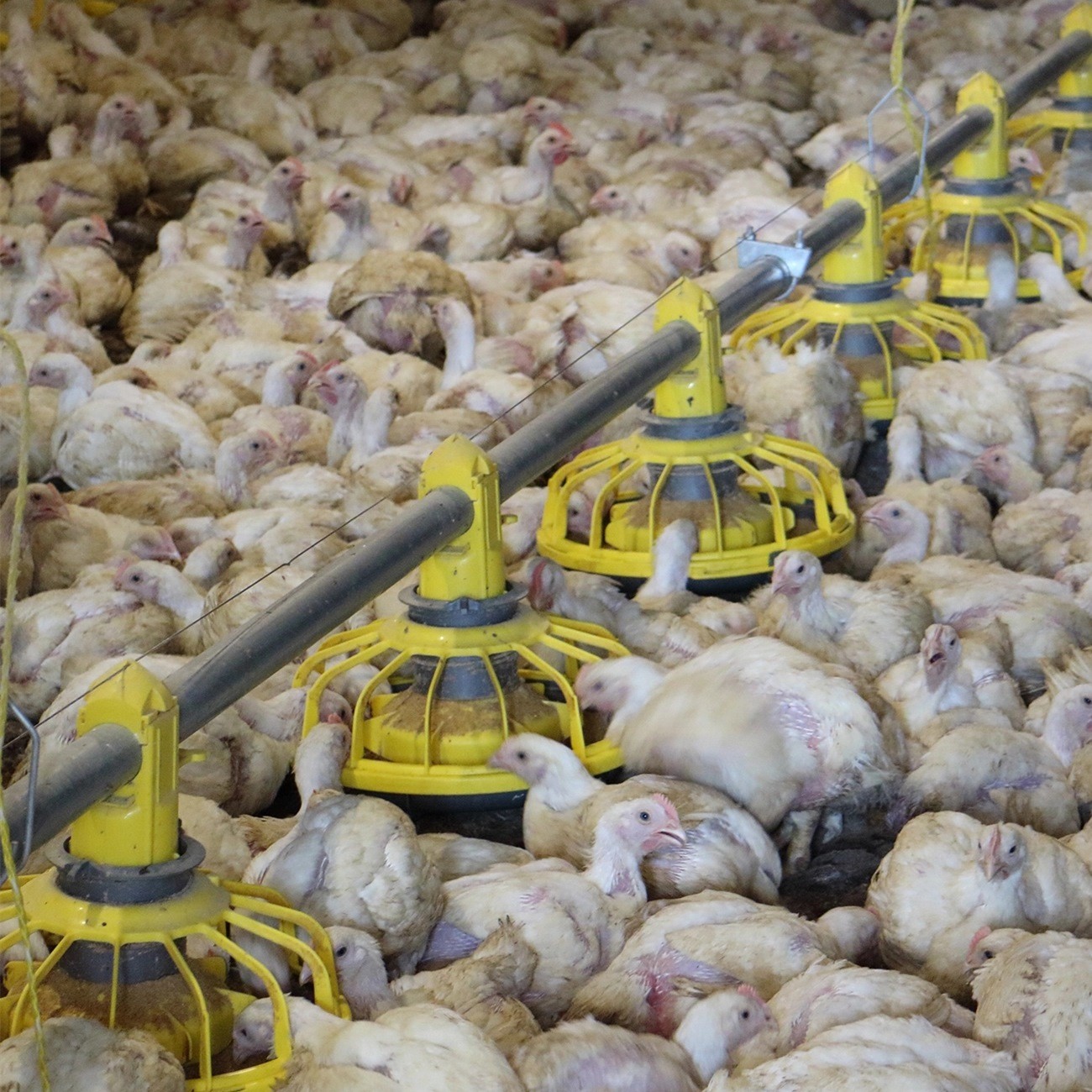

Feeder pan
Plastic, 16 grid, Dia:360mm, 4 Pans/3m
Dia:Φ36mm, material :High-carbon manganese steel



Basic information 14 grilles, diameter of pan bottom-330mm, material-pure engineering plastic
Feeding ability 50-55 broilers/pc






a. Made of high-resistant injected plastic——PP;
b. Six-position regulator that enables the correct amount of feed to be delivered according to the age of chickens, just need to catch two ears in the inner and pull them out adjust up and down.

c. Easy assembly and disassembly system for cleaning the pan;
d. A flange is incorporated to keep the pan suspended for handling;
e. The pan bottom can be disassembled on the ground, which can be used for day-old chicks;
f. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time;

g. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding;

h. The pan features fins and lips to prevent the feed from falling into the chicken's bedding and being wasted.

Poultry house chicken automatic pan feeders for chicken


Parameter of Feeding Line
1. High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current

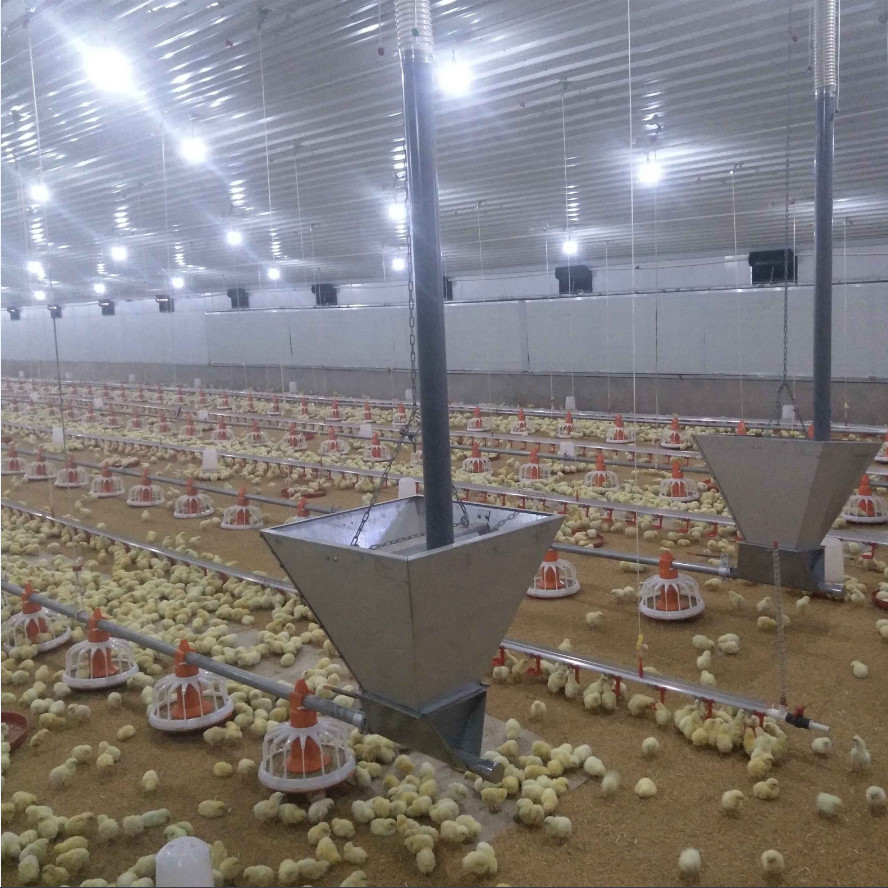

2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System 3M 4holes Feeding pipe
Diameter of conveying pipe: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours
