Poultry Farming Chicken Feeder Equipment Long Life

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-PG09
Minimum Order Quantity: 1pc
Price: 40 - 45 USD/pc
Packaging Details: Standard
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10sets per day
Detail Information
Product: Chicken Feed Lines Application: Poultry House Feeding Equipment Line
Feather: Life Over 10 Years Lead Time: 15 Days
Contact: Whatsapp 008618830728667 Water: Nipple Drinking Lines
High Light:

poultry farming chicken feeder equipment


long life chicken feeder equipment


chicken feeder poultry farming equipment

Product Description


Poultry farming chicken feeder equipment Complete Automatic Broiler Feeding and Drinking line machinery




1.Main feed line system:

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the

end of main feed line which controls motor on and off to achieve automatic feed delivery.


Material :hot galvanized, Al-Zn coating

Sheet thickness: 1.5mm

Capacity: 800-1000kg

Feed tube: 75mm/90mm

Auger: South Africa imported

Motor: 220/380v, 0.75/1.1kw, Taiwan brand

Sensor: Germany/Israel imported, high sensitivity

Silo: 2.5 ton-25 ton


Vice hopper
Hot dip galvanized , sheet thickness: 1.00 mm
Delivery pipe
Hot dip galvanized, Dia: 45mm, 3m/set with 4 holes
Driving motor
380V, 50HZ or 60HZ, 750W
Average transport capacity
450kg per h

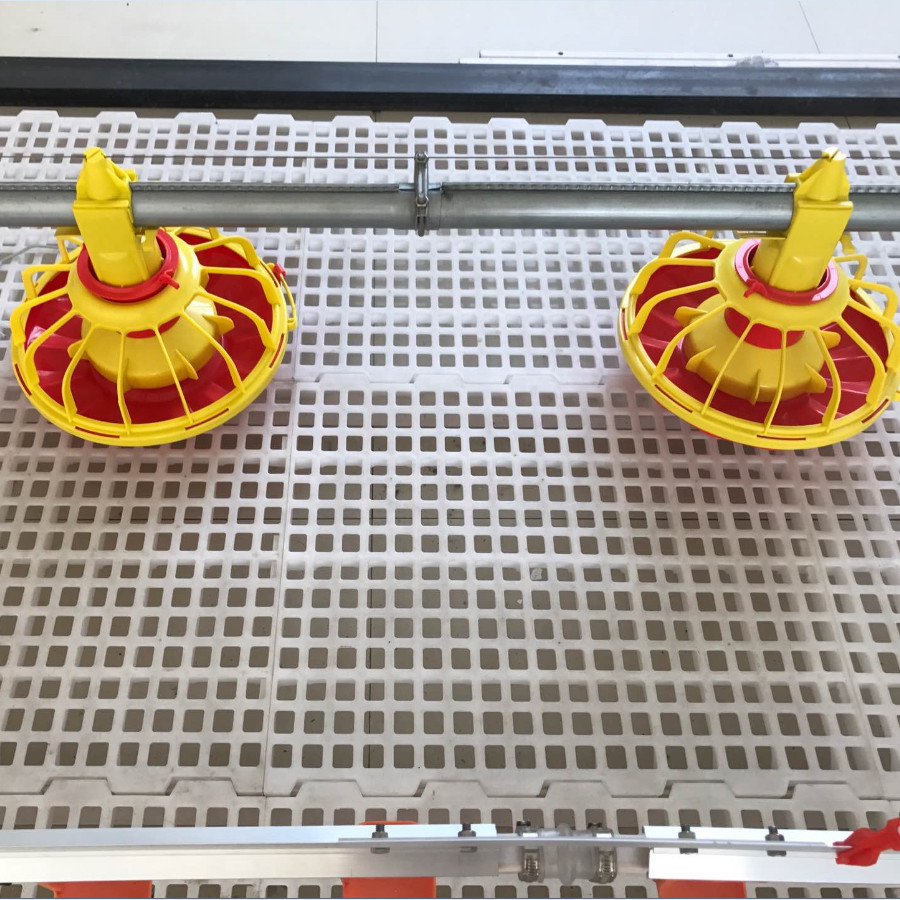

Feeder pan
Plastic, 16 grid, Dia:360mm, 4 Pans/3m
Dia:Φ36mm, material :High-carbon manganese steel



Parameter of Feeding Line
1. High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System 3M 4holes Feeding pipe
Diameter of conveying pipe: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours



Poultry Farming Chicken Feeder Equipment Long Life 0Poultry Farming Chicken Feeder Equipment Long Life 1Poultry Farming Chicken Feeder Equipment Long Life 2
