End Line Switch Feeder Pan Sensor For Broiler Chicken Poultry Equipment Extra

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-PG07
Minimum Order Quantity: 1 house
Price: 1500 - 3500 USD
Packaging Details: Standard
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10sets per day
Detail Information
Product: Chicken Feed Line Application: Chicken House Feeding Equipment System
Feather: Life Over 10 Years Lead Time: 15 Days
Contact: Whatsapp 008618830728667 Size: 45mm Feed Pipe
High Light:

end line switch feeder pan sensor


chicken poultry equipment feeder pan sensor

Product Description

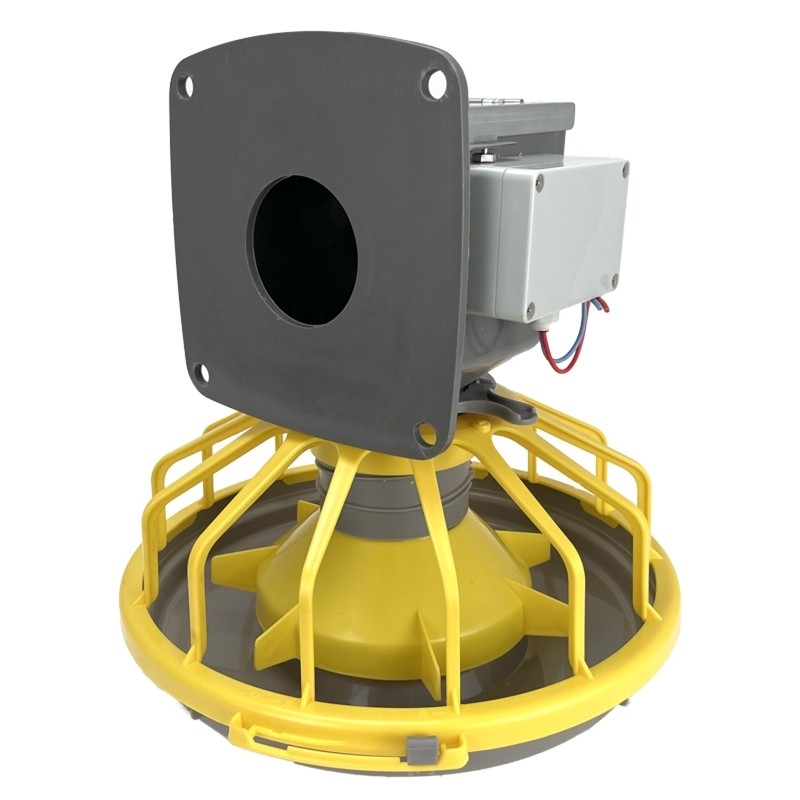

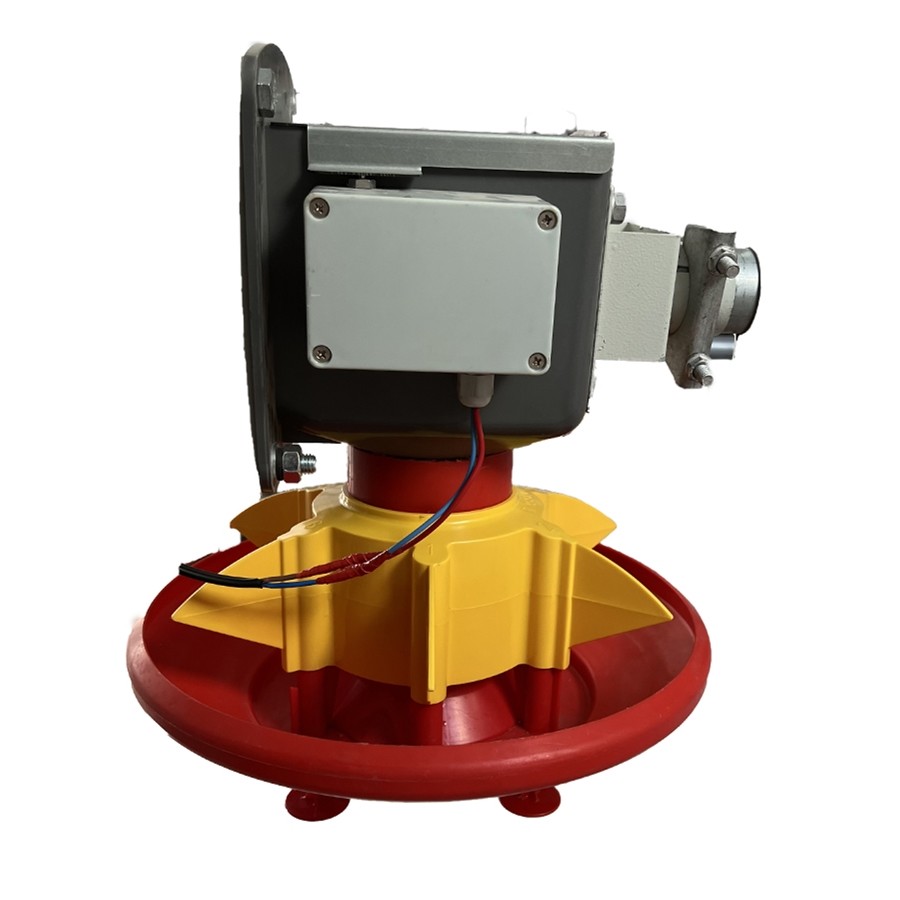

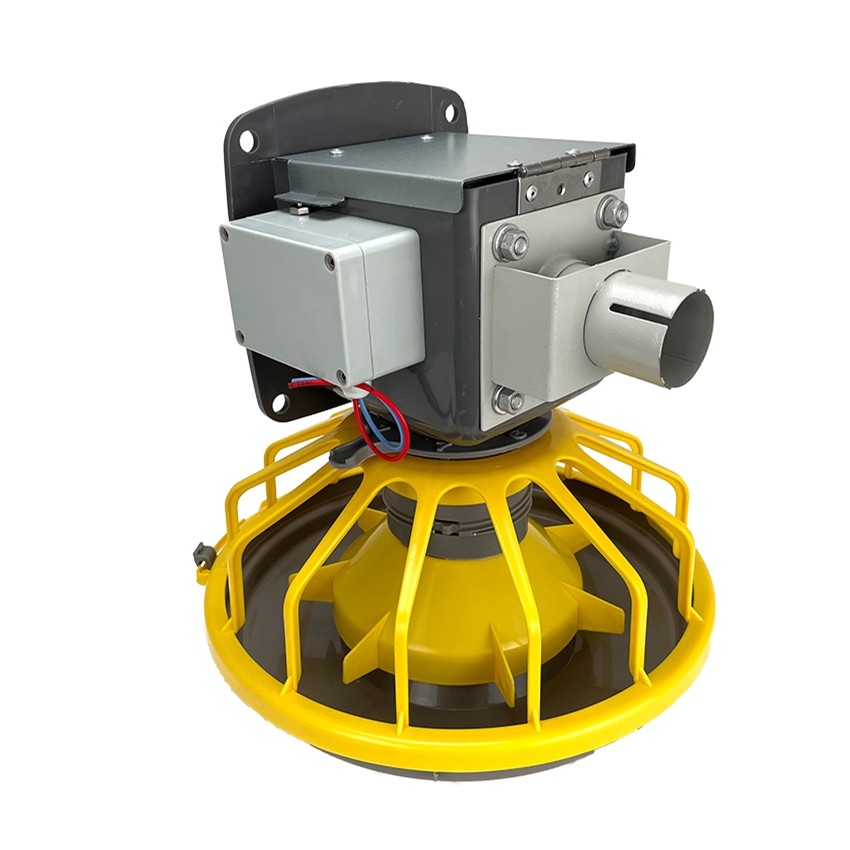

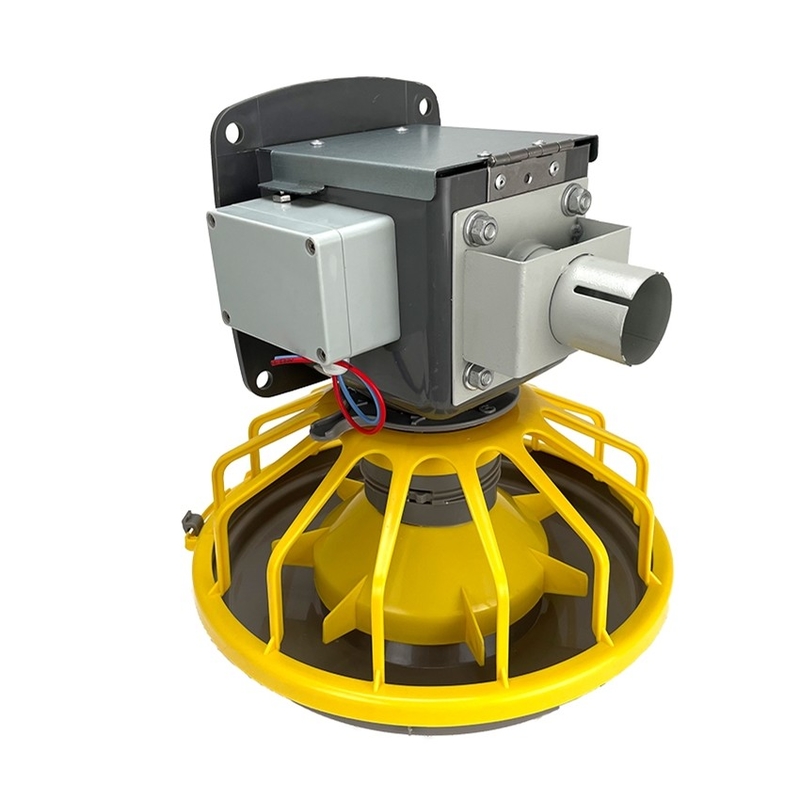

Factory Price End Line Feeder Pan Sensor For Broiler Chicken Feeding Pan Poultry Equipment Extra switch Sensor





1.Main feed line system:

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the

end of main feed line which controls motor on and off to achieve automatic feed delivery.


Material :hot galvanized, Al-Zn coating

Sheet thickness: 1.5mm

Capacity: 800-1000kg

Feed tube: 75mm/90mm

Auger: South Africa imported

Motor: 220/380v, 0.75/1.1kw, Taiwan brand

Sensor: Germany/Israel imported, high sensitivity

Silo: 2.5 ton-25 ton





2. Poultry Feeding system


Main components Features&Function
Vice hopper hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional).
Feed bolts Interface diameter is 45mm, including galvanized grid
Feed pipe double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option)
Helical auger Imported from South Africa

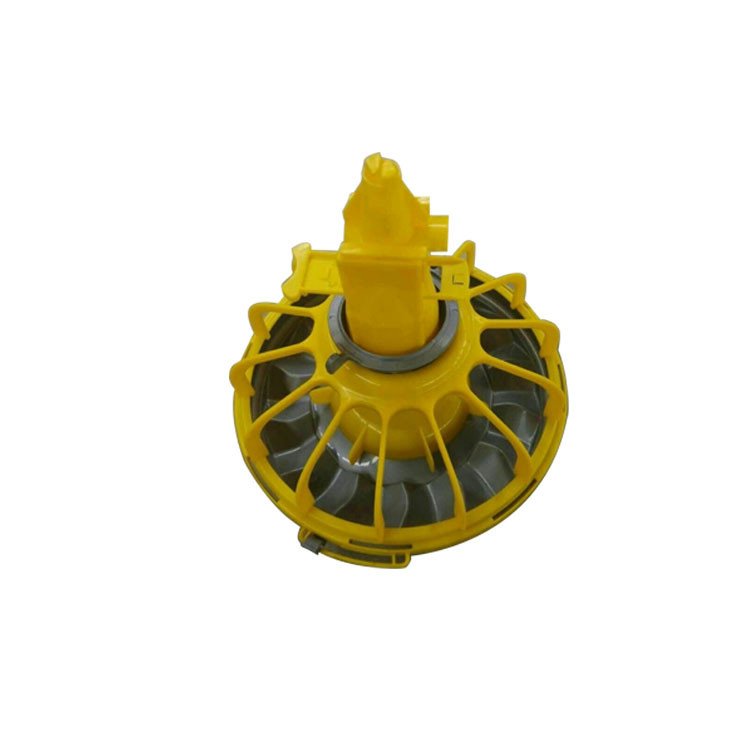

Feed pan 14 or 16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed.
Control pan Including imported feed sensor, High sensitivity
Suspension system Consist of steel wire rope, nylon rope, clips,winch,pulley,etc.
Driving motor

Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V,

Frequency:50hz/60hz, three phase/single phase




3. Nipple Drinking system


Main components Features&Function
Front part of watering system Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system.
Nipples with drip cup 3m/12nipples ,3m/15nipples are optional
Lifting and suspension system Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system.
Water display level tube Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean.
Pressure regulator (Double barreled with large flow capacity) Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water.
Doser (French Dosatoran)

Can add medicine into drinking system automatically.

Don’t use power, it’s economic and reliable.

Accurate, after setting, it can adjust medicine volume according to water pressure change.

Its easy to control and maintain with good corrosion resistance.



High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current

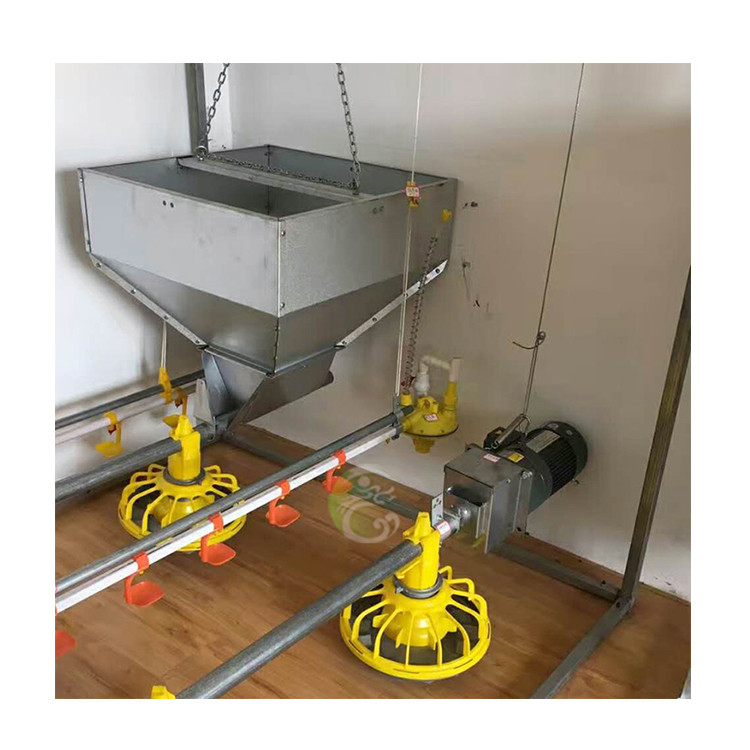

V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L, Material: hot-dip galvanized sheet
Feeding Pipe
3m 4holes
Diameter: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
South African Auger
Feeding Capacity: 450kg/h
Germany Capacitive Level Sensor
Time delay range 0 to 2 hours
Hanging System
All the required parts including the winches



End Line Switch Feeder Pan Sensor For Broiler Chicken Poultry Equipment Extra 0End Line Switch Feeder Pan Sensor For Broiler Chicken Poultry Equipment Extra 1End Line Switch Feeder Pan Sensor For Broiler Chicken Poultry Equipment Extra 2
