| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-PG07 |
| Minimum Order Quantity: | 1 house |
| Price: | 1200 - 3000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per day |
| Product Name: | Chicken Feed Line | Application: | Chicken House Feeding Equipment |
|---|---|---|---|
| Feather: | Life Over 10 Years | Lead Time: | 15 Days |
| Contact: | Whatsapp 008618830728667 | ||
| High Light: | automatic pan feeding system poultry farming,automatic pan feeding system chicken drinking,chicken drinking automatic broiler feeding system |
||

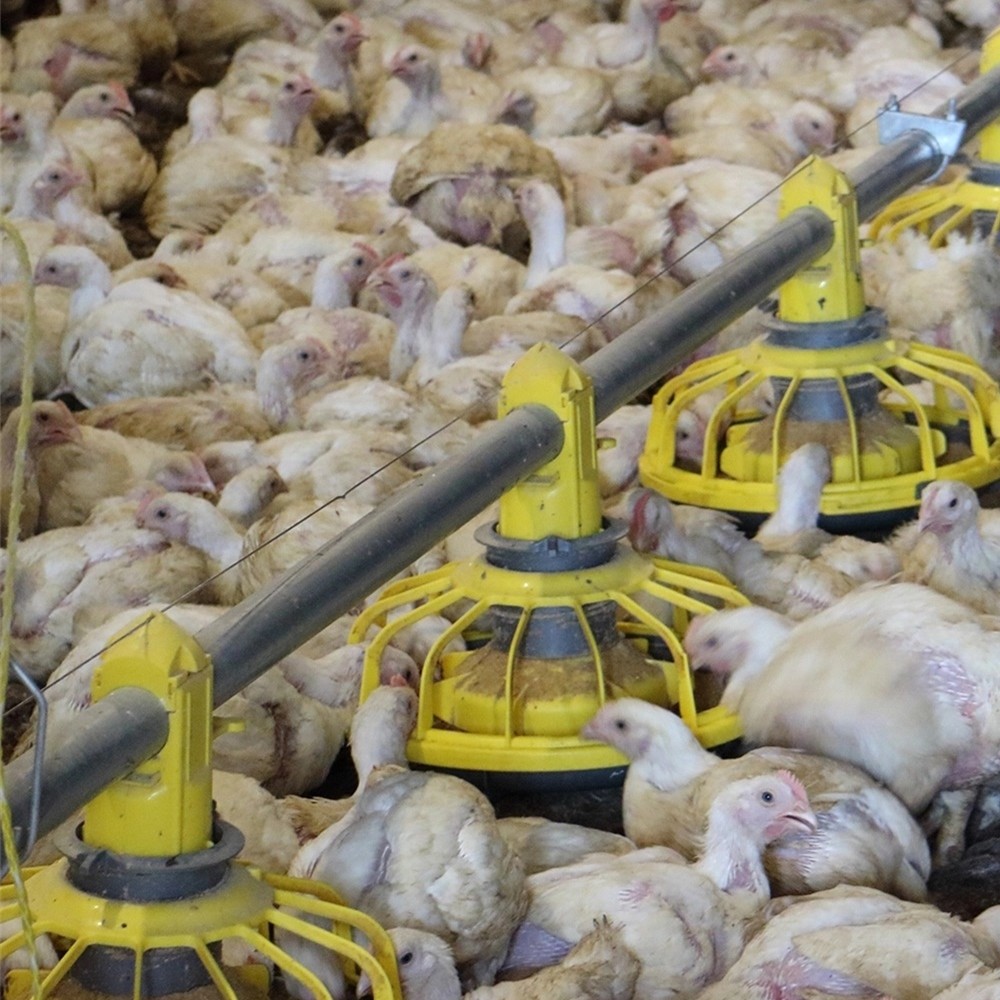

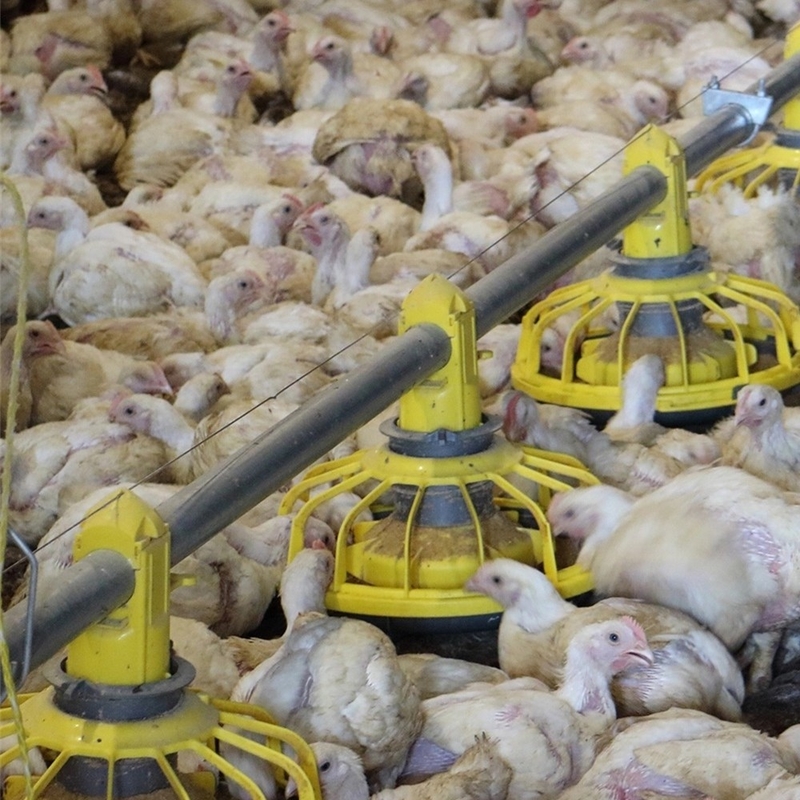

Poultry Farming Equipment machine Automatic Chicken Drinking Feeding lines
1.Main feed line system:
Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the
end of main feed line which controls motor on and off to achieve automatic feed delivery.
Hopper:
Material :hot galvanized, Al-Zn coating
Sheet thickness: 1.5mm
Capacity: 800-1000kg
Feed tube: 75mm/90mm
Auger: South Africa imported
Motor: 220/380v, 0.75/1.1kw, Taiwan brand
Sensor: Germany/Israel imported, high sensitivity
Silo: 2.5 ton-25 ton

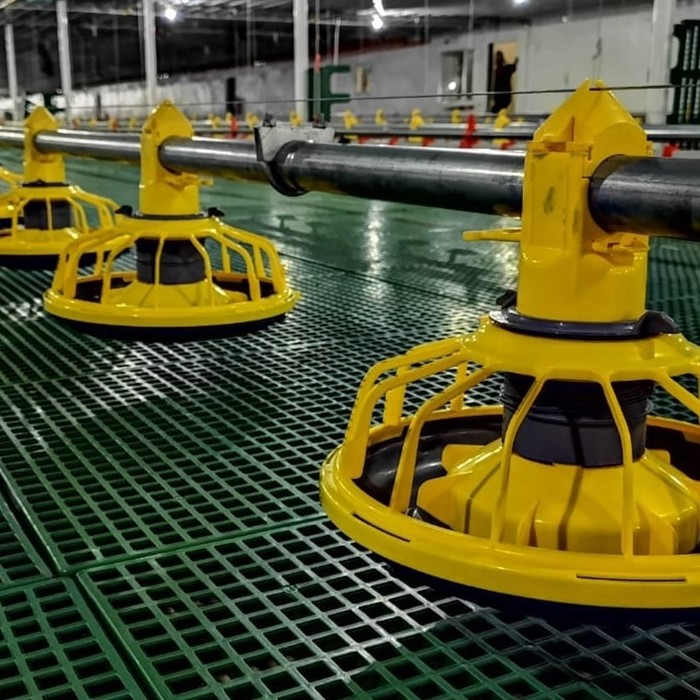

2. Poultry Feeding system
| Main components | Features&Function |
| Vice hopper | hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional). |
| Feed bolts | Interface diameter is 45mm, including galvanized grid |
| Feed pipe | double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option) |
| Helical auger | Imported from South Africa |

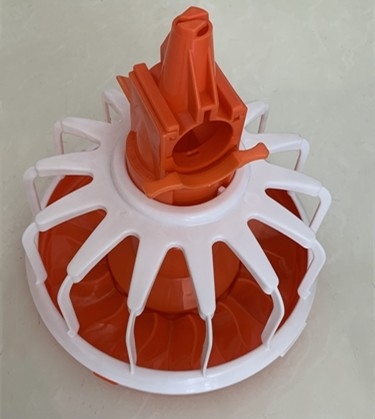

| Feed pan | 14 or 16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed. |
| Control pan | Including imported feed sensor, High sensitivity |
| Suspension system | Consist of steel wire rope, nylon rope, clips,winch,pulley,etc. |
| Driving motor |
Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V, Frequency:50hz/60hz, three phase/single phase |
3. Nipple Drinking system
| Main components | Features&Function |
| Front part of watering system | Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system. |
| Nipples with drip cup | 3m/12nipples ,3m/15nipples are optional |
| Lifting and suspension system | Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system. |
| Water display level tube | Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean. |
| Pressure regulator (Double barreled with large flow capacity) | Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water. |
| Doser (French Dosatoran) |
Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance. |
