45mm Galvanized Steel Pipe Auger Feeder System For Poultry House

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F03
Minimum Order Quantity: 1000pcs
Price: 5.2 - 6.2 USD
Packaging Details: Standard
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10000 per day
Detail Information
Feed Pipe: 3m Dia 45mm Galvanized Steel Pipe Feed Pan: 4pans/3m
Application: Automatic Poultry Chicken Feeding Line Material: Galv. Steel
Life Span: Over 15 Year Contact: 008618830728667
High Light:

45mm pipe auger feeder system


poultry house auger feeder system


auger poultry house feeder system

Product Description

                                                           Automatic Poultry Nipple Drinker System for Broiler Farm Project


Benefits to buy our equipment:

*Time saving
*Labour saving
*Increasing chicken living rate.
*High quality to ensure non stopping running of your house.
*Comparatively cheap price.

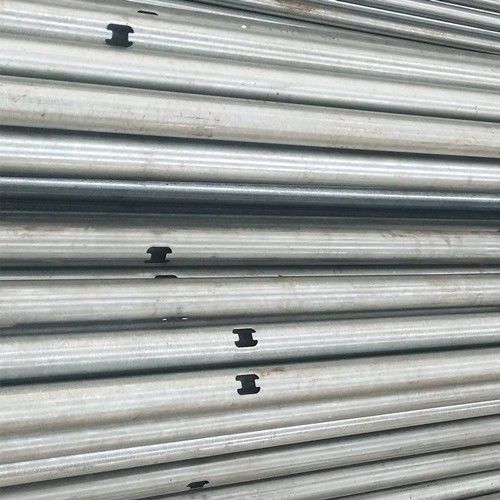

Product Name 45mm galvanized steel pipe
Material hot dipped galvanized
Feature Durable,nice quality
Type Round Pipe
Usage chicken feeding system,Chicken cage feeder
Advantage cheap price,l ong using time
Application chicken, broiler, duck, bird feeding system


Features of galvanized steel pipe


1.Light weight;
2.Convenient installation and transportation: low transportation cost and short installation hours;
3.The product is easy to install
4.Save investment and reduce costs;


Automatic Pan Feeding:


Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.


The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.


Performance parameters of feeding line system.


1.high-quality special driving reduction motor


Power :0.75kw,voltage:380v,frequency:50hz,three-phase AC current


2.V-shaped Bin(with hopper)


Bin volume:115L,hopper volume:38L


Material:hot-dip galvanized sheet


3. Feeding system


Diameter of conveying pipe:45mm


Material :hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2


Helical spring auger from South Africa feeding capacity: 450kg/h


4.Material level sensor from Israel:time delay range 0 to 2 hours.

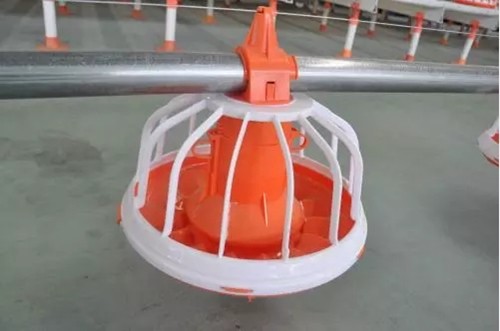

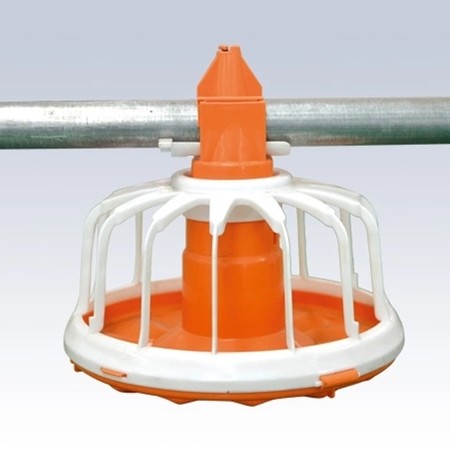

45mm Galvanized Steel Pipe Auger Feeder System For Poultry House 045mm Galvanized Steel Pipe Auger Feeder System For Poultry House 1

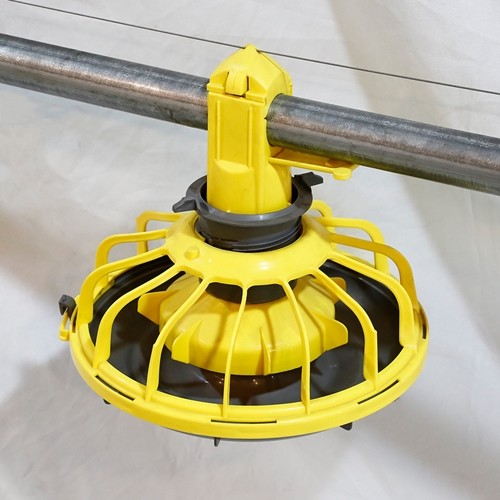

45mm Galvanized Steel Pipe Auger Feeder System For Poultry House 2
