| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F02 |
| Minimum Order Quantity: | 1 house |
| Price: | 1500 - 50000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 - 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 houses per month |
| Drive System: | Motor, 0.75kw | Nipple Capacity: | 10 - 12 Broilers/nipple |
|---|---|---|---|
| Feeder Capacity: | 55 Broilers/feeder Pan | Operation: | Fully Automatic / Save Labor |
| Usage: | Poultry, Broilers, Breeders,egg Chickens,meat Chickens | Color: | Orange, Red, Yellow, Green |
| High Light: | system of feeding in poultry,55 broilers feeding in poultry,0.75kw chicken feeders and waterers |
||
Automatic Poultry Feeder System for broiler breeder complete house equipment
Automatic Poultry Shed system:
Chicken Farm Automatic Broiler Pan Feeder System For Closed Poultry House Shed Day Old
1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.
4. Environmental control system: Automatically control the temperature, humidity, light, etc.
5. Fogging system: Regularly disinfecte the poultry house.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.
Automatic Pan Feeding:
Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.
The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance parameters of feeding line system.
1.Individule feeding pan has 14 - 16 grids which is suitable for high density of chicken raising and saves costs .
2.Higher capacity for feeding chicken which is about 60 % higher
3.Smooth feeding edge which avoid damages to chickens and lower waste of feed
| Consists | Item Name | Specifications | Remarks |
| sub feed bin(with accessories), drive system, sensor, four holes hot galvanized pipe, feed pan, winch handle, manual lifter winch, auger | sub feed bin(with accessories) | 70kg |
1.Special purpose high quality drive motor; 2.World advanced concept designed feeding pan; |
| drive system | Italy motor, 0.75kw | ||
| sensor | IFM | ||
| four holes hot galvanized pipe | 3m/set | ||
| feed pan | with feed limit leaf | ||
| winch handle | Galv. Steel | ||
| manual lifter winch | 1500lbs | ||
| auger | world top class products |
Cooling Pad System:
Length* Width*Thickness: it can be tailor made based on henhouse .
Frame: Galvanized Steel, Aluminium Alloy and Stainless Steel
Color: Brown, Brown&Green, Green, Black
Ventilation Feeding:
36”Fan
| Air capacity | 20800m3/h |
| Size | 1000*1000*450mm |
| Noise | <64db |
| Power | 0.4kw |
| Voltage | 380v |
| Electric current | 1.6A |
| Weight | 66kg |
50”Fan
| Air capacity | 43070m3/h |
| Size | 1380*1380*450mm |
| Noise | <65db |
| power | 1.1kw |
| Voltage | 380v |
| Electric current | 2.8A |
| Weight | 88kg |
| Consists | Item Name | Specifications | Remarks |
| 50" fan, 36" fan, frequency converter, air inlet, air inlet motor, manual winch, right and left cart with accessories | 50" fan | SIEMENS motor | 1.Special production process to ensure the smooth running of low noise and no vibration;2.Japan imported belt, to ensure long-term use without deformation;3.Air inlet adopts reasonable design mechanism, easy to open, good seal and heat preservation performance. |
| 36" fan | SIEMENS motor | ||
| frequency converter | 3kW | ||
| air inlet | three direction | ||
| air inlet motor | reliable and long service life | ||
| manual winch | H-1500-B | ||
| right and left cart with accessories | reliable and long service life |

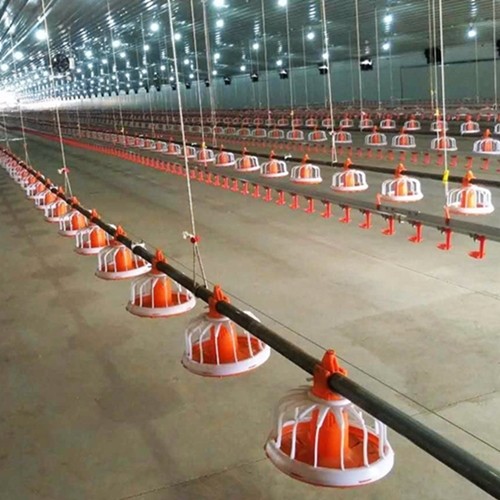

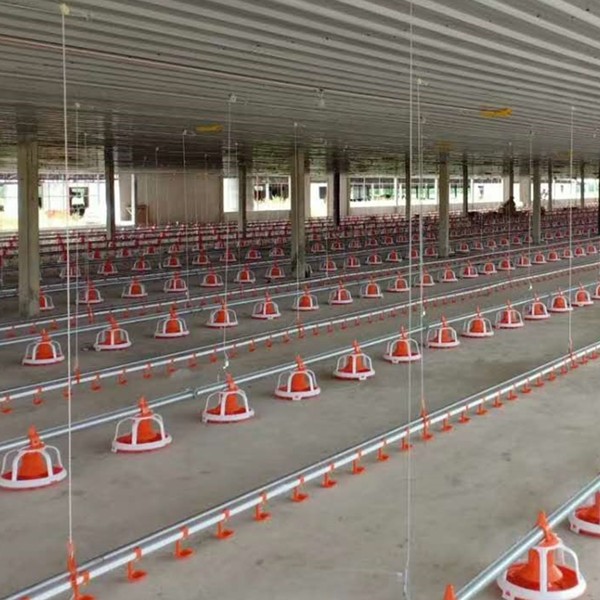

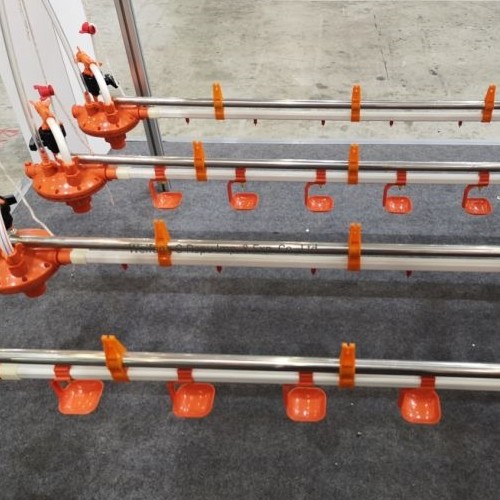

System Pictures:
