1.5kW 200L Poultry Automatic Pan Feeding System

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 2000 - 50000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Feed System Application: Poultry Farm Shed
Hopper: 70kgs Advantage: High Rigidity
Drive Motor: 0.75kW, 1.1kW, 1.5kW Applicable: Poultry Farm Shed
High Light:

200L Automatic Pan Feeding System


1.5kW Automatic Pan Feeding System


275g/m2 poultry feeding system

Product Description

Automatic Poultry Farm House Pan Feeding System


Automatic Poultry Feeding System:

Poultry House Automatic Auger Pan Feeding Line System With Auto Shed Equipment Broiler Chicken

1. Mainly Feed line system

2. Automatic feeding system

3. Automatic drinking system

4. Ventilation system

5. Cooling pad system

6. Environment control system

7. Foggy system

8. Heating system

9. Plastic slat system



Poultry Feeding System:



Broiler automatic feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to tansport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop

Diameter of conveying pipe: φ45mm
Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h

Material level sensor from Germany time delay range 0 to 2 hours


360 degree chicken waterer nipple drinking system

This system is able to provide fresh and clean water for poultry(broiler,layer chicken) which is crucial for the growth of poultry.

Nipple Drinkers can be triggered from 360 degree which helps baby chicks start well, makes drinking easily.

Supplying clean water to nipple drinker and control water capacity steadily.


The 360° flood provides a large amount of feed at the edge of the pan making it easily accessible.

Each broiler feeding pan has the feature of a feed saver lip which reduces waste, along with the feed saver fins which will help keep the birds from wasting the feed, and the 360° rotation of the feeder that insures even feed distribution.
When a flooding pan is no longer required, simply winch the feeders off the floor and the feed adjust returns to the preset grow-out position. In the grow-out position the feed volume per pan is reduced, and the feed is delivered to the feeding area, giving easy access to the feed.



Automatic Feeder Pan:


1.14-16 grid feeding pan, diameter is 360mm, PP material.
2.It canadjust feed amount in pan easily and effectively.
3.Sub feeding line pipe: hot galvanized pipe, diameter:45mm(usually 3-4 feeding hole on pipe)



Product name Chicken feeders
Size 14 grilles, diameter of pan bottom-330mm, material-pure engineering plastic
Color Red/Yellow/customizable
Material PP raw material
Product Keywords drinker system,wholesale chicken feeders,egg tray biodegradable


Feed pan

Big herdsman type feed pan/Valco type feed pan.

All is New PP material


Bin volume: 115 L 200L, material: hot-dip galvanized sheet
material thickness: 1mm


Delivery pipe&Auger

Feed pipe material:hot dip galvanized steel pipe(275g/m2 zinc coating)
Conveying pipe:3m with 3 pan or 3m with 4 pan
Diameter:45mm, Thickness:1.2mm
Auger--imported from South Africa.
Feeding ability:400kg/h



China motor
Power: 0.75kw voltage: 380v, frenquency:50hz, 3phases
Transmission speed: 450kg/h


Feed storage system:

Feed of poultry raising farm is stored in the silo, so as to save large account of feed, and also to ensure the good condition of feed.

Electric control system

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

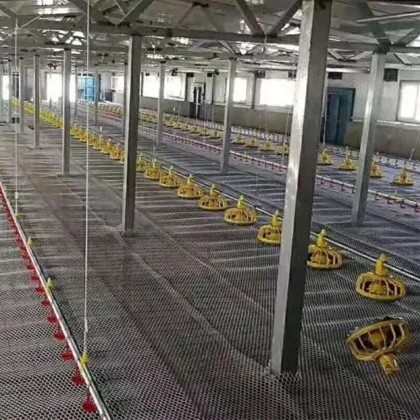

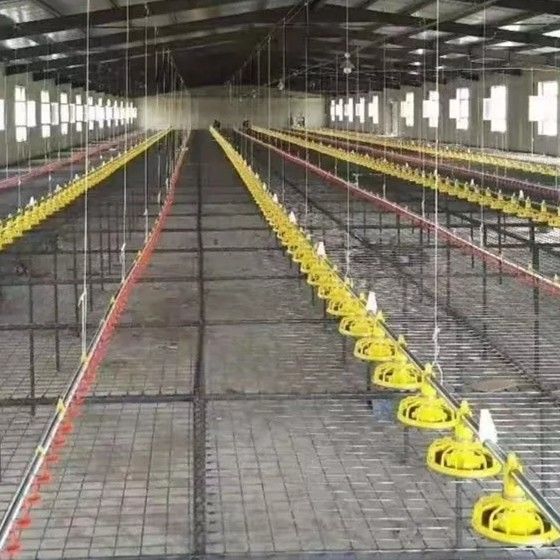

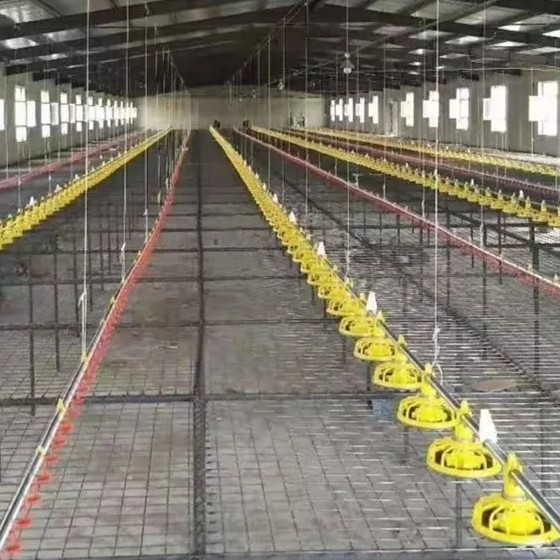

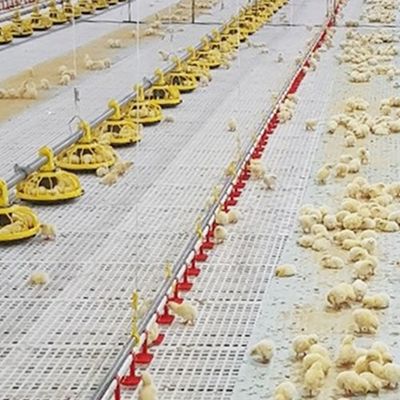

System Pictures:


1.5kW 200L Poultry Automatic Pan Feeding System 0


1.5kW 200L Poultry Automatic Pan Feeding System 1


1.5kW 200L Poultry Automatic Pan Feeding System 2
