12 Birds 60HZ Poultry Farm Feeding System

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 5000 - 50000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Type: Fully Automatic Feed System Application: Poultry Farms
Drinking System: Automatic Nipple Drinker Advantage: Durable And Resist Corrosion
Drive Motor: 0.75kW, 1.1kW, 1.5kW Feeder Qty: 4pan Feeder /3m
High Light:

60HZ Poultry Farm Feeding System

,

12Birds Poultry Farm Feeding System

,

control shed poultry farm


Product Description



Automatic Poultry Farm House Pan Feeding System



Automatic Poultry Feeding System:



1. Mainly Feed line system

2. Automatic feeding system

3. Automatic drinking system

4. Ventilation system

5. Cooling pad system

6. Environment control system

7. Foggy system

8. Heating system

9. Plastic slat system





Auger tube material Galvanized sheet 275g per m2
Outside diameter tube 45mm
Thickness tube 1.2mm
Hole tube 4 holes per 3m or 3 holes per 3m
Power Unit 0.75kw, 380V/220V, 50HZ / 60HZ
Average transport capacity 450kg/h
Auger origin South Africa



Advantage of the Feeding System:





Raising broiler on ground is the traditional raising mode.
* Adopt hot-dip galvanization technology to ensure the service life of 15-20 years.
* Automatic feeding, drinking and environment control system can help to save energy and improve the working efficiency.

Features:
* Low equipment investment.
* Equipment is simple and easy to operate.
* Save labor cost.

* High survival rate.



Nipple Drinker

Material: 304 stainless steel pin, plastic PP covered nipple, no water leaking ,360 degree make sure large waterflow.

Water flow:80-90ml/min

Broiler:8-12 birds/nipple





Automatic Feeder Line:



1). Vice hopper: 50Kg, 70Kg, 90Kg, 100Kg

2). Drving motor: Power: 0.75Kw/1.1Kw/1.5Kw; Voltage: 380V/220V/customized, Three-phase/Single-phase; Frequency: 50Hz,/60Hz AC current

3). Galvanized feed pipe: Diameter of feed pipe:Φ45mm; Material: hot-dip galvanized sheet pipe with the zinc coating amount—more than 275g/m2.

4). Helical spring auger: imported from South Africa, feeding ability:400Kg/h





Silo



1.2mm thickness hot galvanized steel. diameter 2.65m, 6 legs, actual capacity 90%.Feed density 0.65ton/m3.Material of silo is galvanized steel (275g) ,which is anti-erosive and ensures the long service life.



Hopper



Volume: 70kgs;

Material: Hot galvanized sheet(275g/m2);

Sheet thickness:1.0mm



1 Environment Control System A variety of environment controllers are customized from Israel,it can reach a most advanced control leave in poultry house control.
2 Main Feed Line System Silo /manpower hopper is the beginning of main feed line.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
3 Pan Feeding Line System There is a feed sensor at the end of each feeding line which controls motor one and off to achieve automatic feed delivery to each feed pan.
4 Automatic Drinking Line Supply clean water to each nipple steady,
chicken can drink water from 360 degree freely
5 Ventilation System Make chicken shed keep suitable temperature
for different stage chicken


System Pictures:

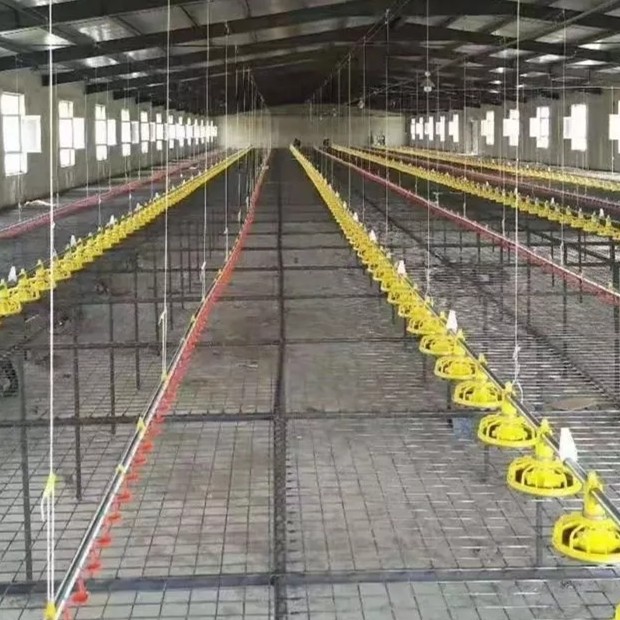

12 Birds 60HZ Poultry Farm Feeding System 0

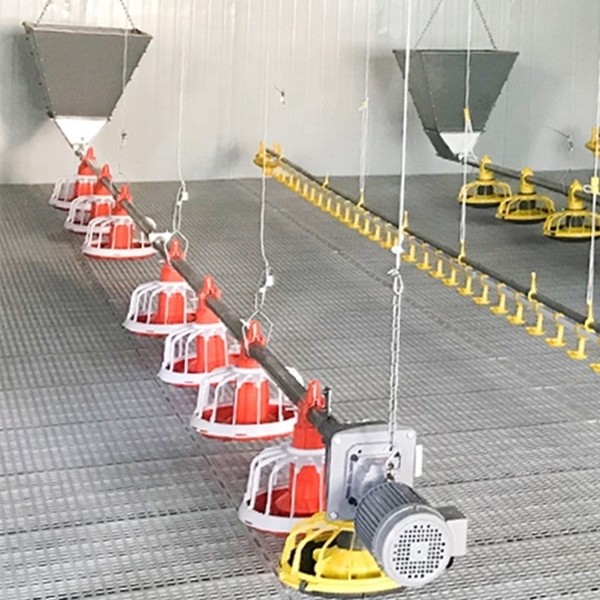

12 Birds 60HZ Poultry Farm Feeding System 1

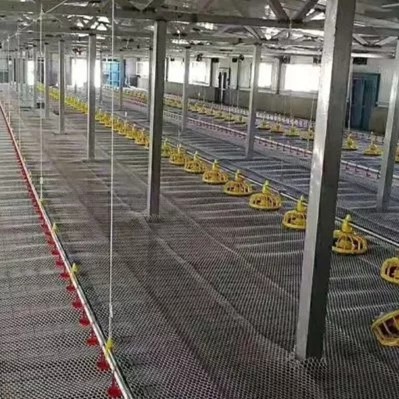

12 Birds 60HZ Poultry Farm Feeding System 2
