| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F01 |
| Minimum Order Quantity: | 1 house |
| Price: | 10000-15000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 25 days after receiving advance payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 houses per month |
| Name: | Pan Feeding System | Material: | PP |
|---|---|---|---|
| Color: | Yellow Or Red | Application: | Chicken Ground House |
| Warranty: | 1 Year | Power Supply: | 380V 50HZ 3Phase |
| High Light: | 20 birds Automatic Pan Feeding System,300g Automatic Pan Feeding System,galvanized chicken feeding system |
||
Automatic Pan Feeding System
Automatic Pan Feeding System For Closed Ground Chicken House
| Final weight | Final weight | ||
| Birds/pan | 57-91 | 57-85 | |
| Density(birds/m²) | 16-20 | 12-16 | |
| Max daily feed intake | 170g | 175-220g | |
| Product specification | |||

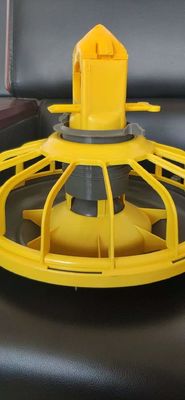

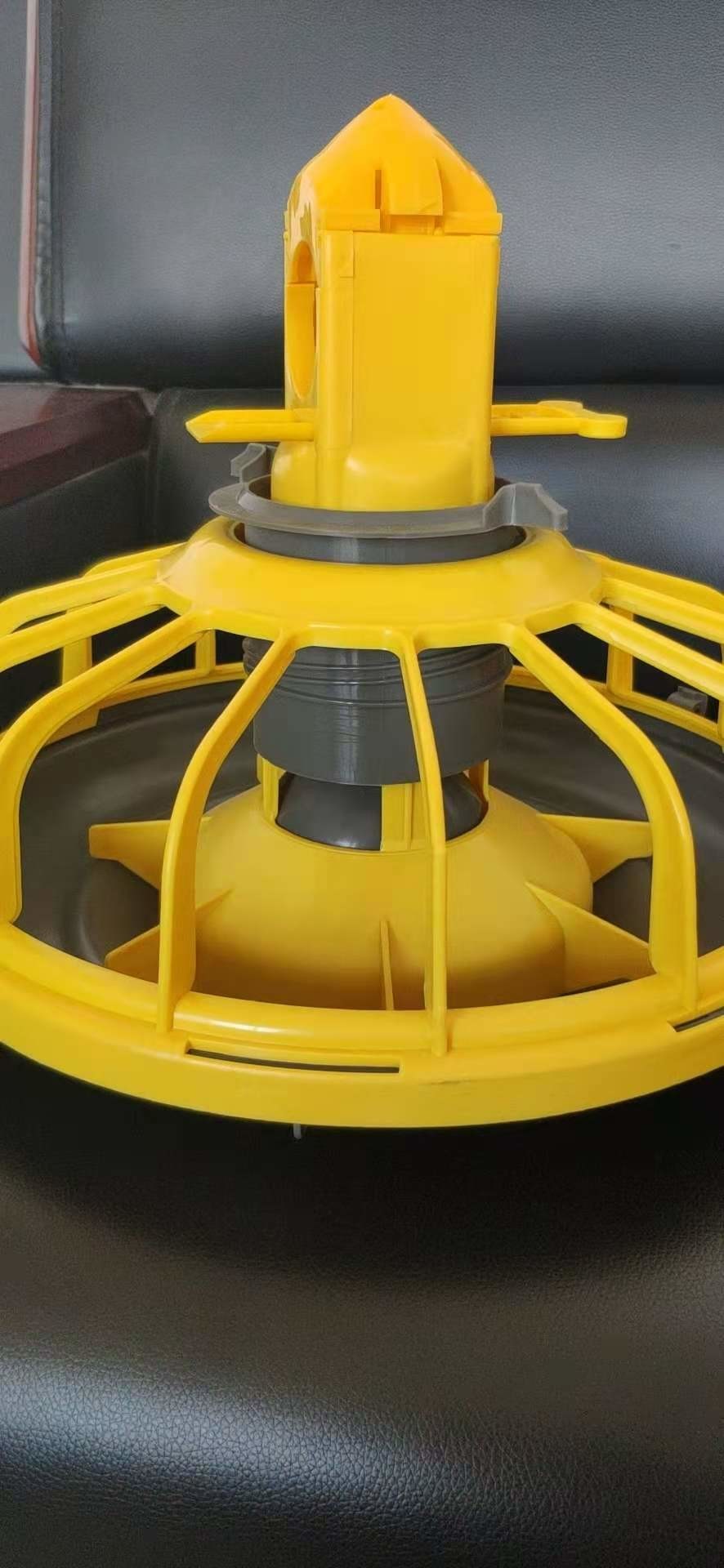

| Feed pan | Diameter | 330mm | |
| Material | PP | ||
| Pan capacity | 300g | ||
| Number of grill | 14 | ||
| Grill hole size | 60mm | ||
| Pipe&auger | Material of pipe | Hot galvanized | |
| External diameter of auger |
45mm |
||
| Distance between feeding pan |
750mm |
||
| Max feeding length | 150m | ||
| Drive motor | Drive motor specification |
1.1kw 380 50hz |
|
| 0.75kw 380v 50hz | |||
| Delivery capacity | 450kg/h | ||
Features
1,Ideal raising from brooding to slaughter.Ideal pan height for chicken.
2,It is feed saving and make sure fresh feed supplying.
3,Flexible and automatic control on feed level.
4,Taiwan brand motor with high quality to ensure stable working
5,Feeding pan material is raw material of PP

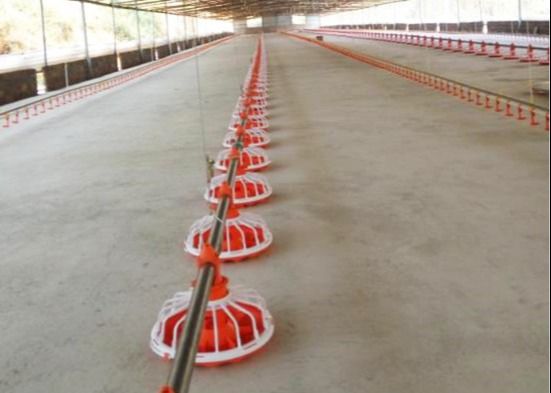

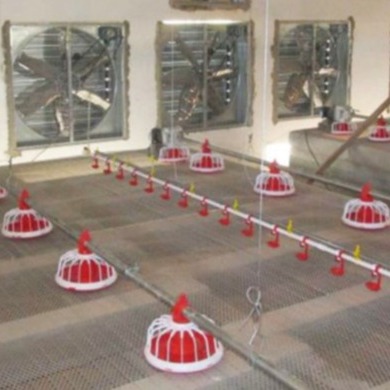

System picture
Factory picture
