Poultry Farm 25mm Chicken Nipple Waterer With Thread

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F03
Minimum Order Quantity: 5000pcs
Price: 0.18 - 0.28 USD
Packaging Details: Cartons
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs per day
Detail Information
Name: Poultry Chicken Water Drinking Drinker Nipple Drinker: 360 Degree Or 180 Degree
Advantage: Full Automatic Chicken Nipple Drinker Water Pipe: Dia 25mm Round Pipe Or 22x22mm Square Pipe
Cup Material: 100% Pure PP Nipple Quantity: 15 Nipples/3m, 12 Nipples/3m, 9nipples/3m
High Light:

25mm chicken nipple waterer

,

poultry farm chicken nipple waterer

,

chicken nipple waterer with thread


Product Description

                                                           Automatic Poultry Nipple Drinking System for Broiler Farm House Shed



We can supply the follow equipments for chicken farm:

1. Main feed line system

2. Automatic pan feeding system

3. Automatic nipple drinking system

4. Ventilation system

5. Cooling pad system

6. Environment control system

7.Foggy system

8.Heating system

9. Plastic Slat system





Features of nipple.

The nipple sheel is made of high-quality engineering plastics, and the valve rod inside is made of high-quality stainless steel. All these features make it anti-corrosion , anti-rust, and more than ten years’service life.

Double-decked seal structure can effectively avoid wasting water and the resulting impact on the environment humidity.

Stem can rotate freely at 360 degree to meet bird water demands of different periods.



Feeding capacity

Brolier: 8-12 birds/nipple

Birds in cage: 12 birds/nipple

Duck: 10 birds/nipple



The advantages of nipple drinker:

1.Clean water
Direct drinking for Chicken from nipple drinker,No spiling and leaking, like the original container style drinker, to make sure chicken can get clean,freshwater,which can avoid some bird diseases.
2.Saving labor
Connect with PVC pipe or water container,do not need to check the water condition very often,just need to make sure PVC pipe connect with water or the water container have water.
3.Easy for chicken to use
Bright red/yellow/orange design, attract to birds or chicken and the nipple drinker dispense a drip of water whenever they are pecked,they can avoid some birds diseases for chicken with playing.
4.Easy to clean the nipple



Nipple Drinker System:



Name Feature
Front part of watering system Adjust water supplying pressure and stabilizing drinking volume,
this part is usually installed in control system.
Nipples with drip cup 3m/12nipples ,3m/15nipples are optional
Birds capacity 12 birds per nipple
Lifting and suspension system Correct height for drinking system is very important for chicken
(both higher and lower can effect chicken bone’s distortion, it’s
bad for chicken growth, and also can have some water wasting),
it’s very easy to adjust drinking system’s height if use this system.
Water display level tube Use high transparency & impact resistant material, it’s sturdy and durable,
and convenient to watch water level. This device with advanced design,
it’s very easy to take down and clean.
Pressure regulator
(Double barreled with large flow capacity)
Regulating stability, high switching performance, water supply is sufficient &
equality, recoil cleaning with good cleaning result and can save time and water.
Doser a).Can add medicine into drinking system automatically.
b).Don’t use power, it’s economic and reliable.
c).Accurate, after setting, it can adjust medicine volume according to water pressure change.
d).Its easy to control and maintain with good corrosion resistance.



System Pictures:

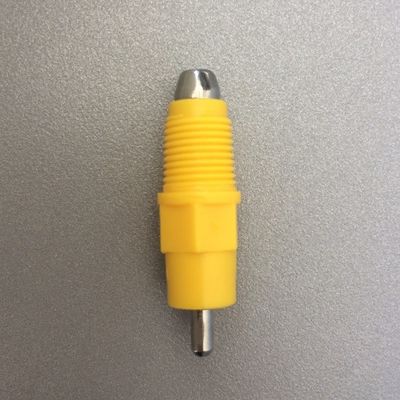

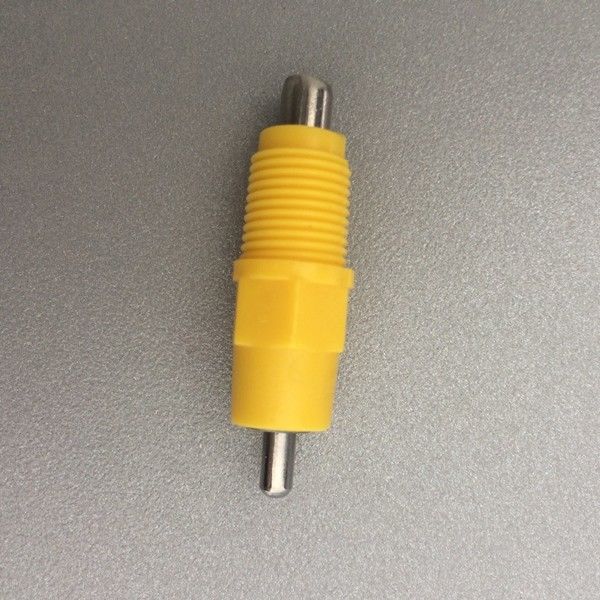

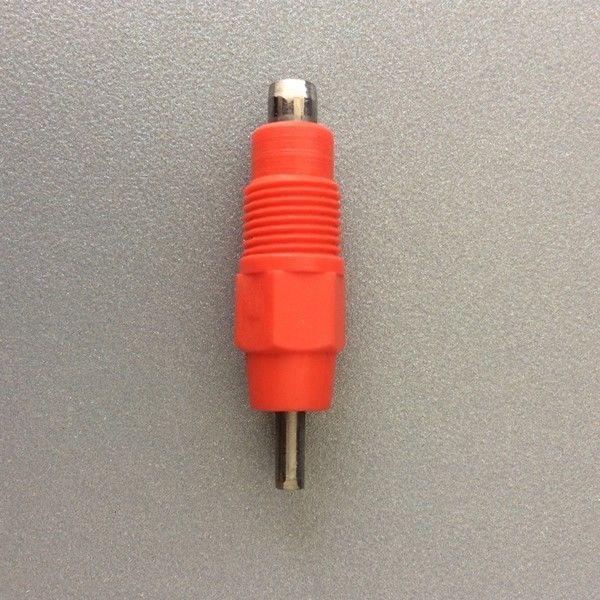

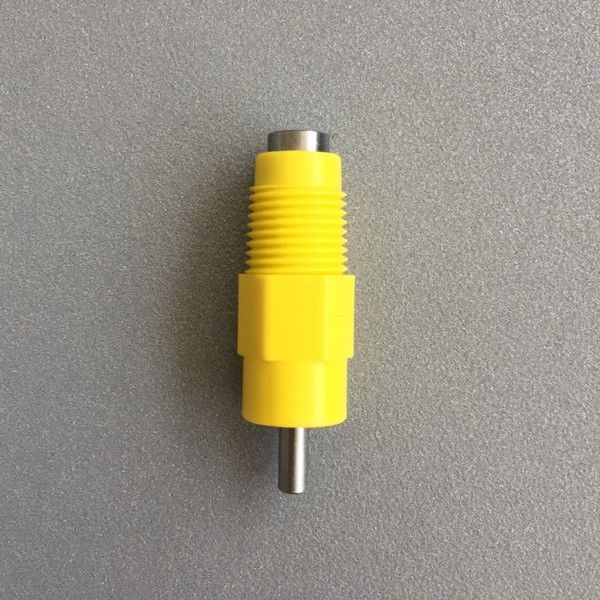

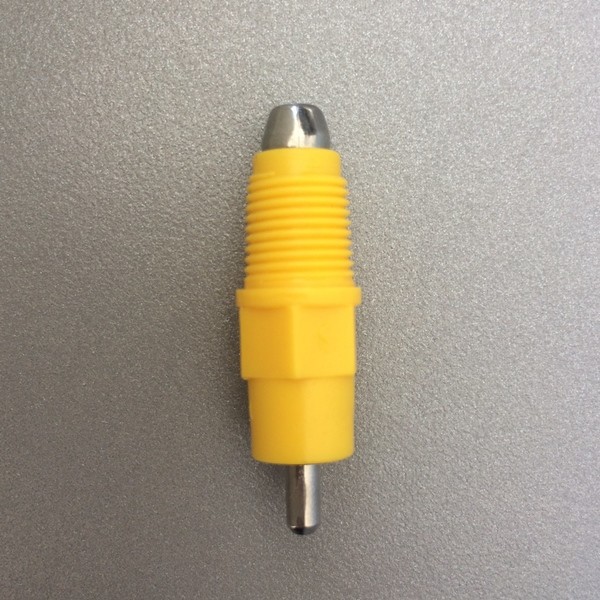

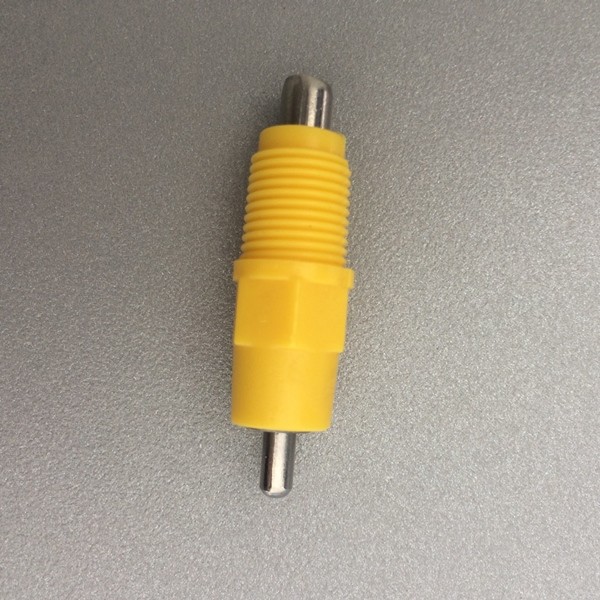

Poultry Farm 25mm Chicken Nipple Waterer With Thread 0



Poultry Farm 25mm Chicken Nipple Waterer With Thread 1



Poultry Farm 25mm Chicken Nipple Waterer With Thread 2
