| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F06 |
| Minimum Order Quantity: | 1000pcs |
| Price: | 1.8 - 2.8 USD |
| Packaging Details: | Standard |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15000pcs per day |
| Name: | Poultry Farming Chicken Feeder | Material: | High Quality 100% Pure PP |
|---|---|---|---|
| Application: | Chicken, Hen, Chick, Duck, Goose, Bird, Quail, Pigeon | Advantage: | Complete Automatic Broiler Feeding Equipment |
| Contact: | Whatsapp 008618830728667 | Keyword: | Chicken Pan Feeder |
| High Light: | pure pp poultry pan feeder,450kg/h poultry pan feeder,pure pp chicken pan feeder |
||

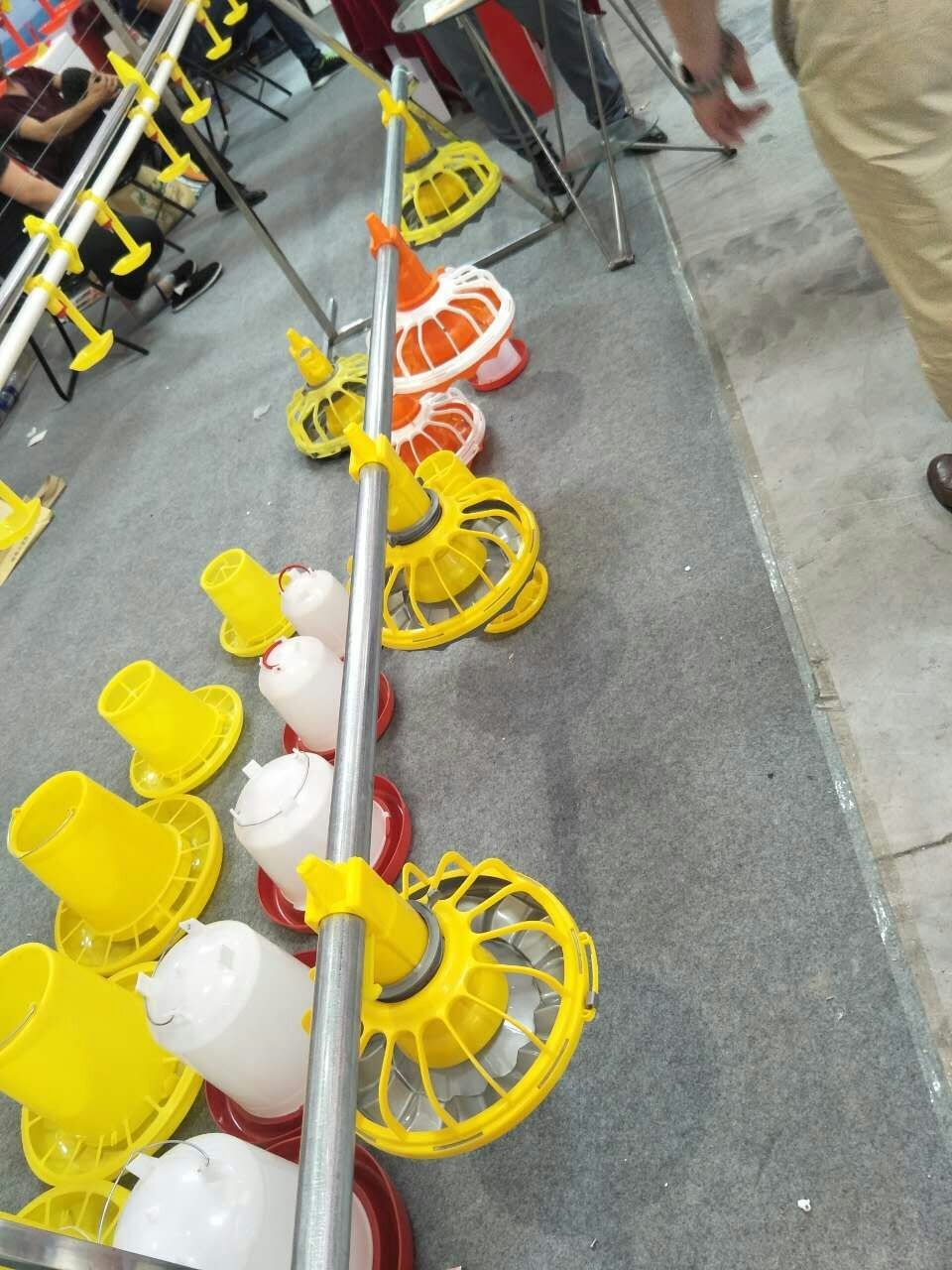

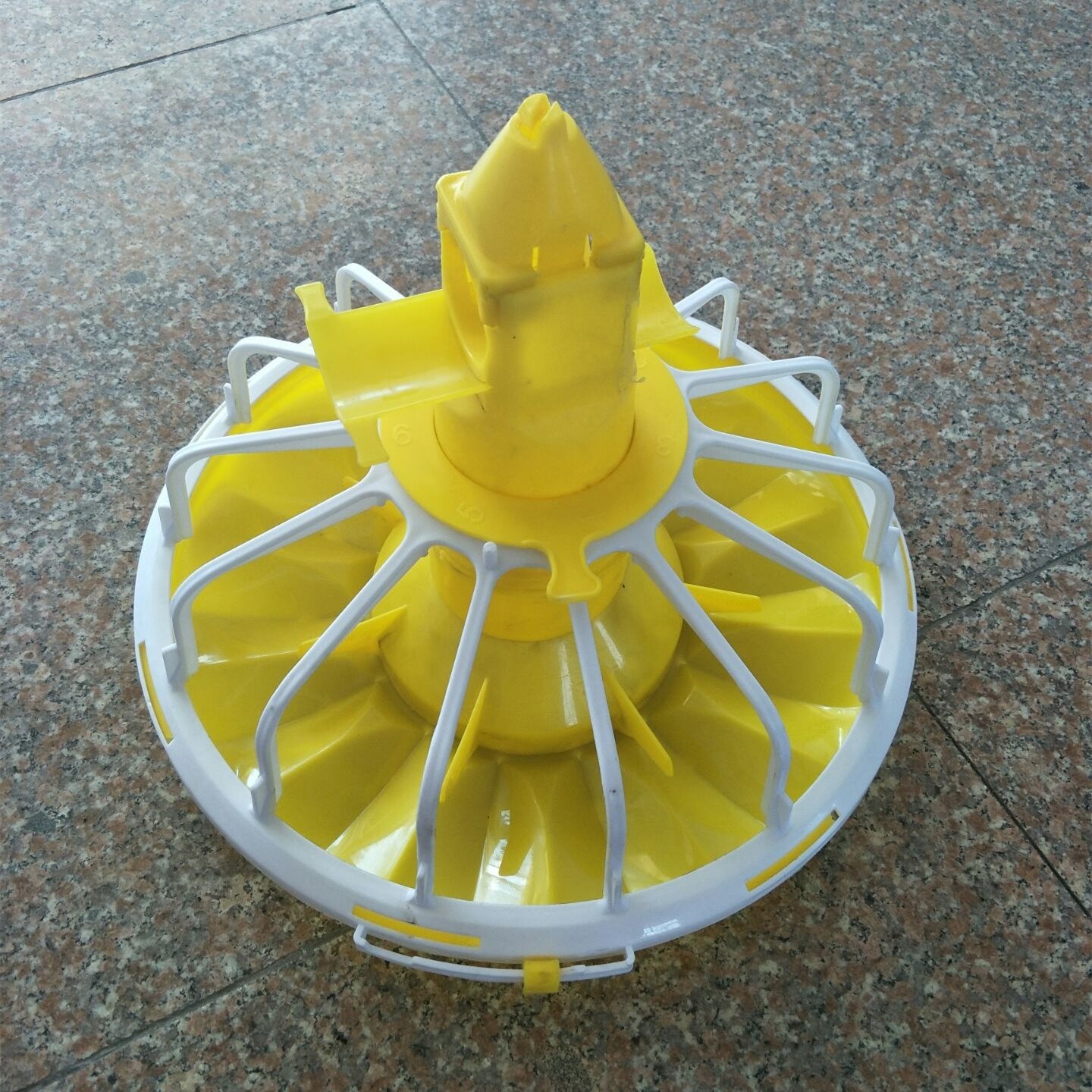

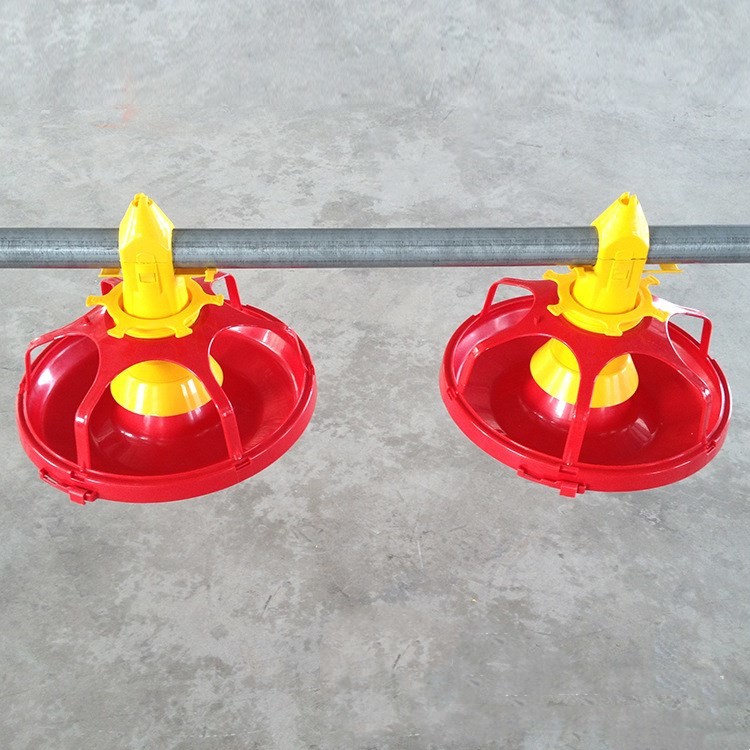

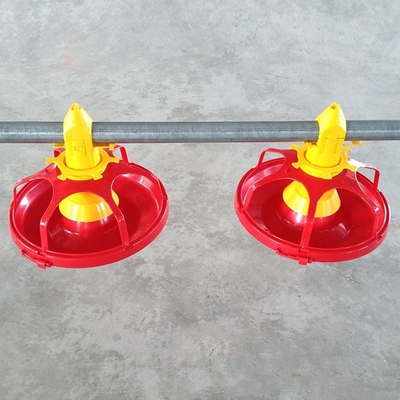

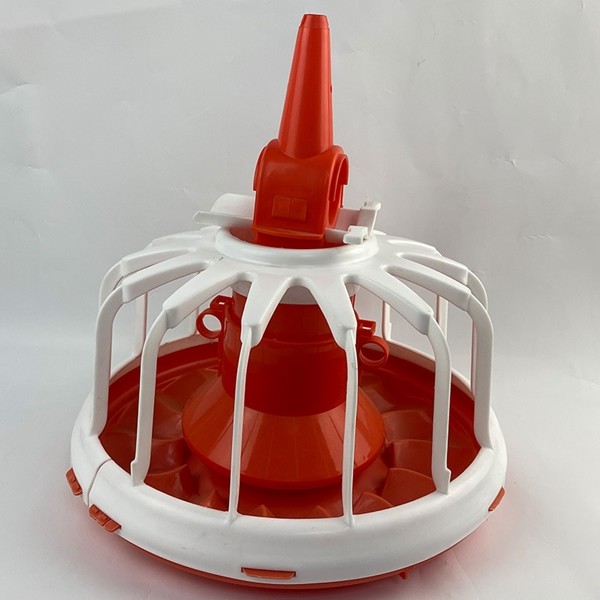

Automatic Poultry animal Farm Floor Raising Chicken Broiler Breeder Drinker System Pan Feeder
Broiler Automatic feeding system
Consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically.
Parameter of Feeding Line
1. High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System 3M 4holes Feeding pipe
Diameter of conveying pipe: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours
| Product Name | Chicken Broiler Breeder Pan Feeder and Drinker System |
| Material | pp |
| Pan distance | 3-4 pans/3m |
| Space between two grills | 75-100mm |
| Transmission speed | 450kg/h |
| Usage | Livestock Feeding |
| Color | Orange |
| Feature | Save Breeding Cost |
| Type | Livestock Equipment |
| Application | Poultry Farm Chicken/Duck Feeding |
