Hen Chicken Farm Animal Poultry Feeder Drinker Hdg Sheet

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F06
Minimum Order Quantity: 2000pcs
Price: 1.8 - 2.9 USD
Packaging Details: Standard
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs per day
Detail Information
Name: Automatic Poultry Farm Pan Feeder Size: 4 Pans/3m, 3pans/3m
Application: Chicken, Hen, Chick, Duck, Goose, Bird, Quail, Pigeon Advantage: Complete Automatic Broiler Feeding Equipment
Contact: Whatsapp 008618830728667 Keyword: Chicken Feeders And Drinkers
High Light:

hen poultry feeder drinker


hdg sheet poultry feeder drinker


hen poultry feeder and drinker

Product Description

Automatic Feeding Line Equipments Production Line Feed Chicken Poultry Farm Animal Feeders

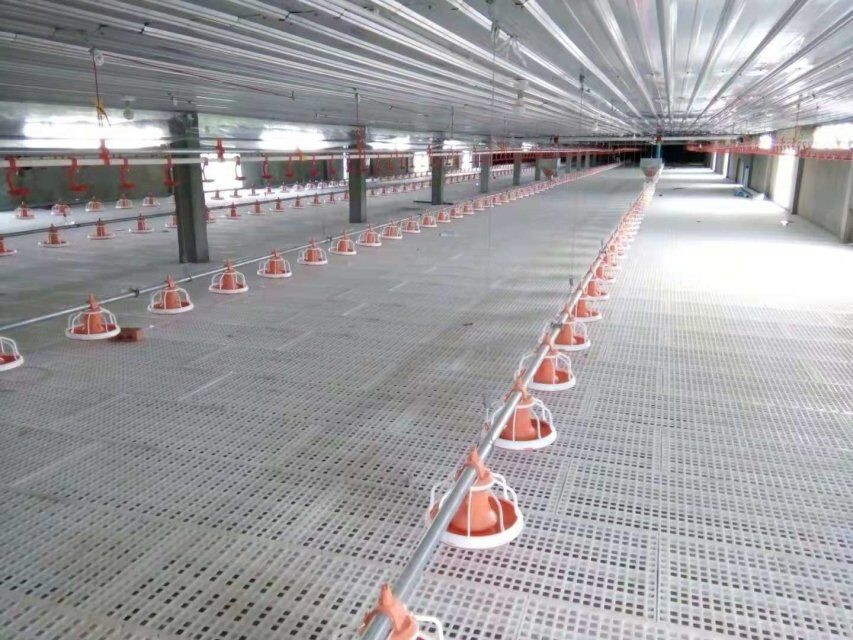

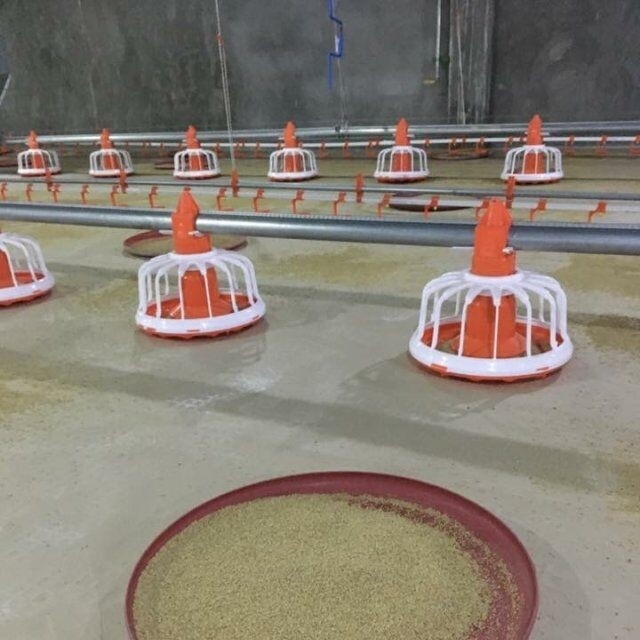

Broiler Automatic feeding system

Consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically.


Parameter of Feeding Line
1. High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System 3M 4holes Feeding pipe
Diameter of conveying pipe: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours


Advantages of Chicken Broiler Breeder Pan Feeder and Drinker System

1--Save time and labor, one shed just need one person.
2--Increase survival rate.
3--Easier to operate.
4--Easier to install and clean.
5--Longer service life.
6--Competitive price.
7--Complete controlled poultry equipment

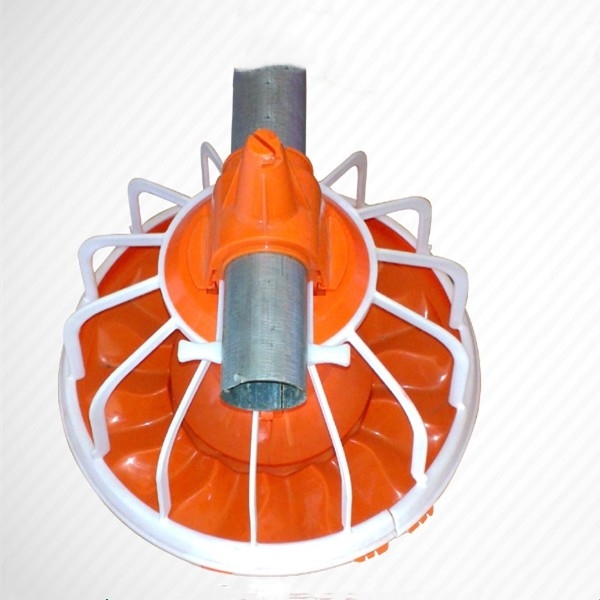

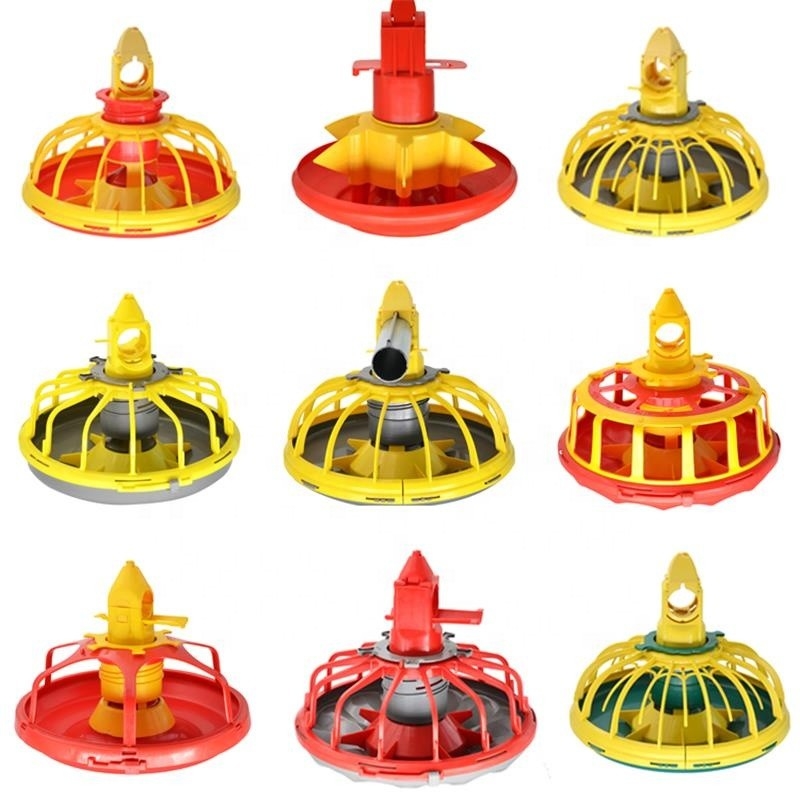

Product Name Chicken Broiler Breeder Pan Feeder and Drinker System
Material pp
Pan distance 3-4 pans/3m
Space between two grills 75-100mm
Transmission speed 450kg/h
Usage Livestock Feeding
Color Orange
Feature Save Breeding Cost
Type Livestock Equipment
Application Poultry Farm Chicken/Duck Feeding
