| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F02 |
| Minimum Order Quantity: | 1 house |
| Price: | 2000 - 50000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 - 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 houses per month |
| Warranty: | 1 Year | Nipple Capacity: | 12 Broilers/nipple |
|---|---|---|---|
| Feeder Capacity: | 55 Broilers/feeder | Operation: | Fully Automatic |
| Usage: | Poultry, Broilers, Breeders,egg Chickens,meat Chickens | Color: | Orange, Red, Yellow |
| High Light: | 66kg Galvanized Chicken Feeder,64db galvanized chicken feeder,12 Broilers Auto Feeding Machine |
||
Automatic Poultry Feeding System for broiler breeder house equipment
Automatic Poultry Shed system:
Chicken Farm Automatic Broiler Pan Feeding System For Poultry House
1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.
4. Environmental control system: Automatically control the temperature, humidity, light, etc.
5. Fogging system: Regularly disinfecte the poultry house.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.
Automatic Pan Feeding:
Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.
The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance parameters of feeding line system.
1.high-quality special driving reduction motor
Power :0.75kw,voltage:380v,frequency:50hz,three-phase AC current
2.V-shaped Bin(with hopper)
Bin volume:115L,hopper volume:38L
Material:hot-dip galvanized sheet
3.feeding system
Diameter of conveying pipe:45mm
Material :hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity:450kg/h
4.Material level sensor from Israel:time delay range 0to 2 hours.
Cooling Pad System:
Length* Width*Thickness: it can be tailor made based on henhouse .
Frame: Galvanized Steel, Aluminium Alloy and Stainless Steel
Color: Brown, Brown&Green, Green, Black
Air inlets:
Automatic control: As per the request of difference chicken house pressure by controller, make the air
inlet window open and off automatically.
Ventilation Feeding:
36”Fan
| Air capacity | 20800m3/h |
| Size | 1000*1000*450mm |
| Noise | <64db |
| Power | 0.4kw |
| Voltage | 380v |
| Electric current | 1.6A |
| Weight | 66kg |
50”Fan
| Air capacity | 43070m3/h |
| Size | 1380*1380*450mm |
| Noise | <65db |
| power | 1.1kw |
| Voltage | 380v |
| Electric current | 2.8A |
| Weight | 88kg |

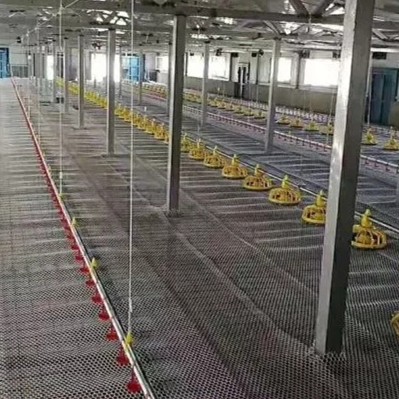

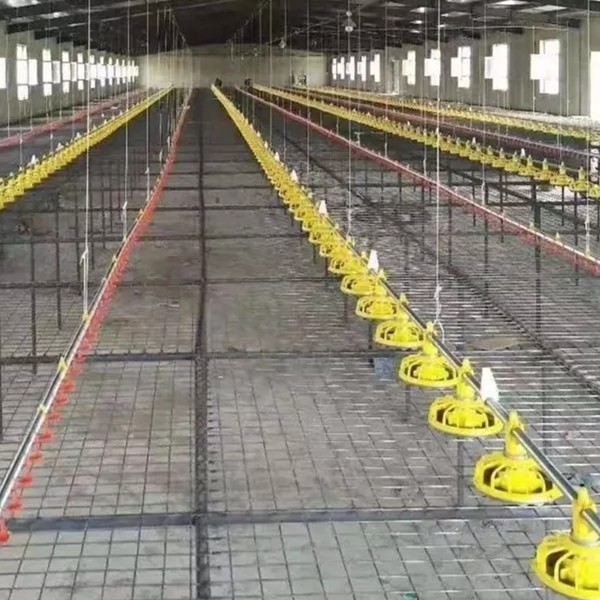

System Pictures:
