| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-HL01 |
| Minimum Order Quantity: | 5sets |
| Price: | 100 - 300 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 - 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 per month |
| Application: | Poultry House/ Baby Chick House | Feature: | Safe, Reliable, Economical |
|---|---|---|---|
| Fuel: | Gas/oil/Diesel/kerosene | Name: | High Quality Space Heater |
| Voltage: | 220-240V / 50-60Hz | Contact: | Whatsapp 008618830728667 |
| High Light: | 240V Diesel forced Air Heater,50Hz kerosene diesel heater,30KW diesel torpedo heater |
||
Greenhouse Chicken House Poultry Heaters Kerosene Diesel forced Air Heater
Poultry House Heating system:
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.
Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.
Auto Oil-burning Heater
| Model | H70 | H100 | H170 |
| Power Supply: | 110V/60Hz,220V/50Hz | 110V/60Hz,240V/50Hz | 110V/60Hz,240V/50Hz |
| Heat output: | 20KW /70000Btu | 30KW /100000Btu | 50KW /175000Btu |
| Fuel: | Kerosene,Diesel | Kerosene,Diesel | Kerosene,Diesel |
| Fuel Tank: | 38L | 50L | 50L |
| Fuel Consumption | 2.0 L /hr | 3.0L /hr | 5.1 L /hr |
| Heating Area: | 295m² | 325m² | 415m² |
| Ignition Type: | Continuous Spark Ignition | Continuous Spark Ignition | Continuous Spark Ignition |
| Thermostat Control: | With | With | With |
Auto Coal-burning Heater
1.Heat Exchanger adopts special three-pass design, remove dust automatically
Specification of our Diesel Forced Air Heater
| Power | 20KW | 30KW | 50KW | 60KW |
| Model | XDFT-20 | XDFT-30 | XDFT-50 | XDFT-60 |
| Electric Supply | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ |
| Output | 17200Kcal/h | 25800Kcal/h | 43000Kcal/h | 60200Kcal/h |
| Output | 69000Btu/h | 105000Btu/h | 170600Btu/h | 238840Btu/h |
| Motor Power | 250W | 250W | 340W | 430W |
| Air Displacement | 595m3/h | 720m3/h | 1100m3/h | 1300m3/h |
| Heatted Area | 100-200m2 | 200-300m2 | 300-400m2 | 500-600m2 |
| Fuel Consumption | 1.7Kg/h | 2.5Kg/h | 4.0Kg/h | 5.8Kg/h |
| Fuel Tank Capacity | 19L | 38L | 56L | 69L |
| Products Size | 850*350*340mm | 970*385*370mm | 1140*415*415mm | 1310*430*430mm |
| Packing Size | 950*400*420mm | 1070*435*450mm | 1240*465*495mm | 1410*480*510mm |
| N.W. | 16.2Kg | 22.0Kg | 30kg | 39.5kg |
| G.W. | 18.5Kg | 24.5Kg | 32.5kg | 42kg |
Product Features
1.Unique ,tough and portable design,high quality wheel.
2. Fuel burning more sufficiently,no smell.
3. Stainless steel combustion chamber with fan cooling
4. LCD digital control panel,there's time switch
5. If no oil , heater will cut off the power
6. Fuel gauge
7.Cut-off protection,re-plugged in will not work automatically
8.Low pressure atomization,combustion completely,made by Danfoss Brass oil burner nozzle
9.Dump cut-off protection device.
10.Built-in thermostat,can be connected with external temperature controller
11.Overheating protection device.
12.Can be used -40 degree.
Features:

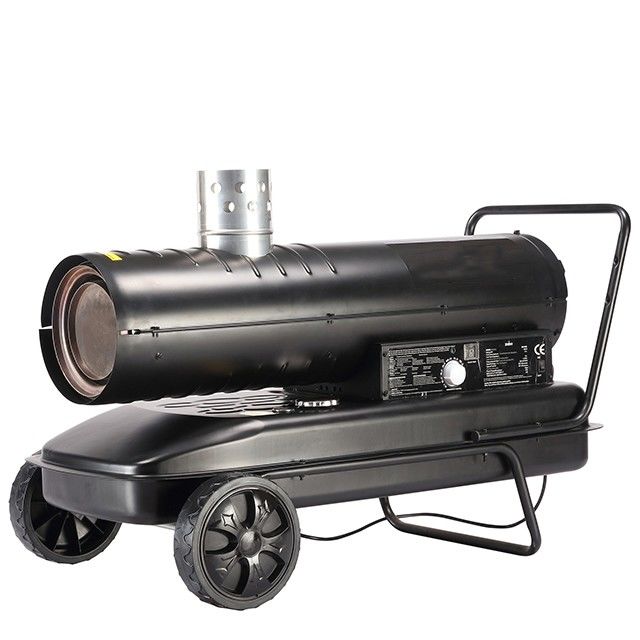

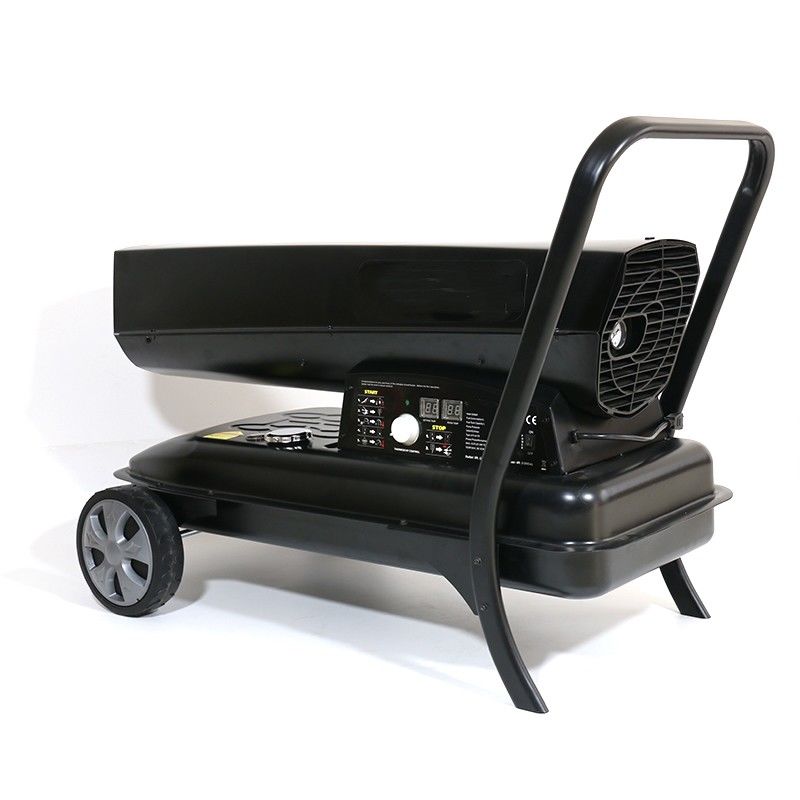

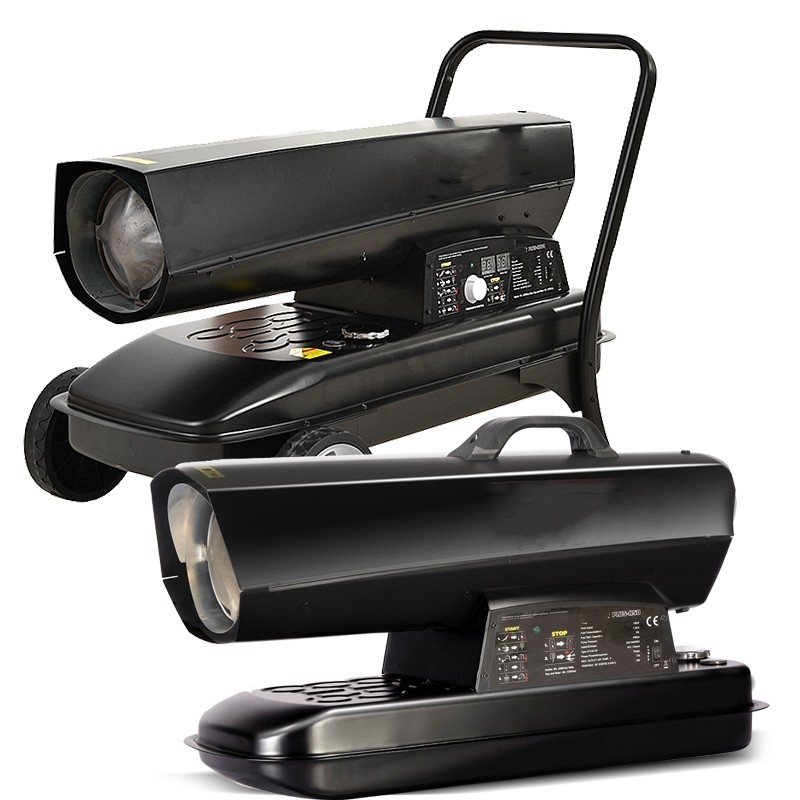

Heater Pictures:
