Coal Burning Gas Heating System 30KW Poultry House Heater

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-HL01
Minimum Order Quantity: 10sets
Price: 100 - 200 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Detail Information
Application: Poultry House/ Baby Chick House Feature: Safe, Reliable, Economical
Fuel: Gas/oil Power Source: Diesel/Kerosene/Kerosene
Advantage: Energy Saving Contact: Whatsapp 008618830728667
High Light:

110V Poultry House Heater

,

30KW Poultry House Heater

,

broiler house heating systems


Product Description

New Design Overheat Protection Function Portable Pig Poultry Farming House Diesel Brooder Heater



Poultry House Heating system:



Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.

Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.



Auto Oil-burning Heater



Model H70 H100 H170
Power Supply: 110V/60Hz,220V/50Hz 110V/60Hz,240V/50Hz 110V/60Hz,240V/50Hz
Heat output: 20KW /70000Btu 30KW /100000Btu 50KW /175000Btu
Fuel: Kerosene,Diesel Kerosene,Diesel Kerosene,Diesel
Fuel Tank: 38L 50L 50L
Fuel Consumption 2.0 L /hr 3.0L /hr 5.1 L /hr
Heating Area: 295m² 325m² 415m²
Ignition Type: Continuous Spark Ignition Continuous Spark Ignition Continuous Spark Ignition
Thermostat Control: With With With



Auto Coal-burning Heater


Model
Thermal Output (kcal/h)
Rated Voltage
(v)
Air Flow (m³/h)
Fuel consumption
(kg/h)
Hot Air Temperature
(℃)
Power
(kw)
N.W (kg)
Product Size (mm)
FSH-10
100000
220/380
4500
6-12
60-110
3
600
1400X1000X2100
FSH-15
150000
220/380
5000
10-18
60-110
3
750
1700X900X2000
FSH-20
200000
220/380
5500
15-25
60-110
5
850
2000X1100X2200
FSH-25
250000
220/380
7000
18-28
60-110
5.5
1000
2100X1100X2300
FSH-30
300000
220/380
7000
25-35
60-110
5.5
1000
2100X1100X2300



Specification:

1.Heat Exchanger adopts special three-pass design, remove dust automatically

2. Both auto-alarm and auto-protection devices are equipped
3. Fan blowers can start on and off automatically (manually)
4. Air input, hot air output and environmental temperature can be automatically controlled
5.Computer-controlled and digital-controlled for temperature controlling system is optional
6. Special heating and insulation design to minimize heat loss
7. Special designed combustion chamber , longer service life , various coal are available. This machine combines combustion chamber with heat exchanger together. Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no pollution. 8. Thermal conversion reach as high as 80%-95%, fast warming,small volume, easy installation, reliable use, and low cost. (The cost is only half, compared with the same capacity boiler )
Application:
It’s widely applied to greenhouse,poultry farm, livestock house, mining and factory buildings, also used in drying wood, tea, medicine, foodstuff and other fields.



Heater Pictures:

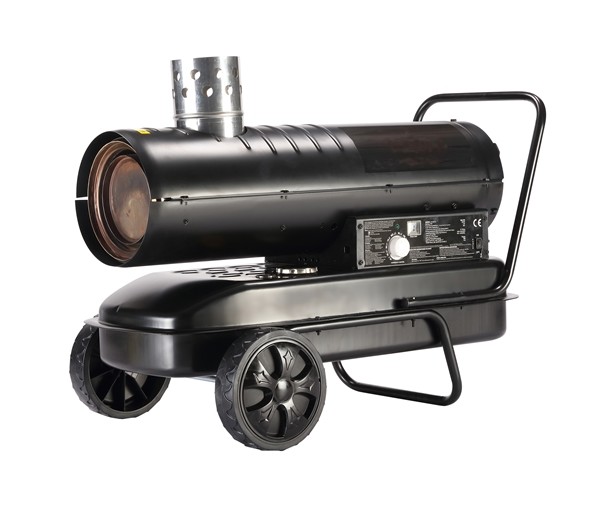

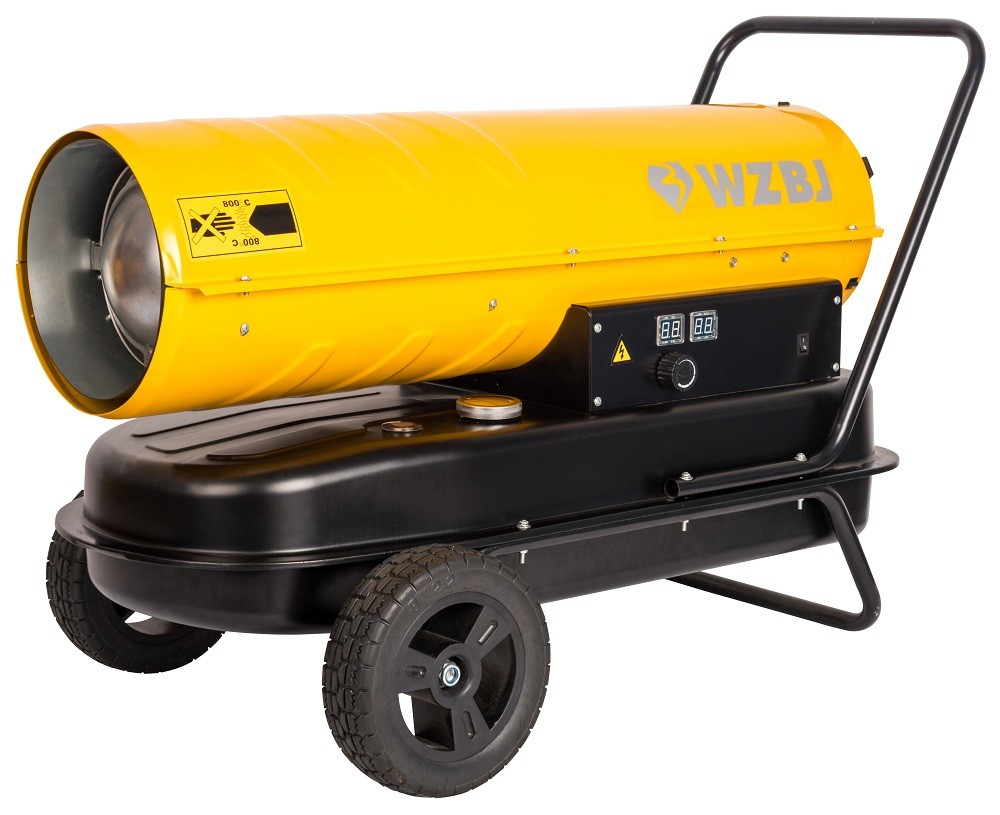

Coal Burning Gas Heating System 30KW Poultry House Heater 0



Coal Burning Gas Heating System 30KW Poultry House Heater 1

Coal Burning Gas Heating System 30KW Poultry House Heater 2
