616 607A Environmental Controller For Grow Room

Temptron 610 616 607A poultry house environment controller for chicken farm temperature Agro Logic T607 / T610 / T616 control panel

We are professional leading manufacturer and supplier of poultry house design automatic chicken farm machine for broiler in China!

We have our own production line so we can control the quality very well! Our poultry house design automatic chicken farm machine for broiler has been exported to more than 40 countries and have good market reputation!

We have many different project of chicken farm in Indonesia, Philippines, Uzbekistan, Columbia, Costa Rica, Paraguay, Guyana, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.

1.main feed line system components

1)silo 2)Driving motor 3)feed level sensor 4)feed conveying pipe

2.automatic pan feeding system components

1)hopper 2)conveying-pipe and auger inside 3)pan feeder 4)feed sensor and driving motor 5)suspension lifting system 6)motor system

3.automatic nipple drinking system components

1)filter 2)pressure regulator 3)nipple drinking line 4) lifting and suspension

5)electric shock system etc. 6)water meter 7)doser

4.ventilation system

1)manual control 2)automatic control motor 3)fan

4)Air window 5)window shades 6)bearing

5.cooling pad system parameters

1)cooling pad 2)Frame

Air cooling effect

Import cooling pad pulp

Import cooling pad glue

Surface special coating

Thickness:100mm:150mm Width: 300mm.600mm height:1660mm ,1960mm , 2160mm

Frame:galvanized sheet and aluminium alloy

Aluminium alloy frame: high strength,good corrosion resistance, water distribution unifromity, beautiful and practical

6.heating and light system

1)Small air heater Gas heater Gas brooder

2)Auto burning Heating Machine

3) Heating parachute

7.environment control

enviroment controller:T607 T610 T616

A variety of enviroment controller are customized from Israel , it can reach a most advanced control level in poultry house control.

8.fogging system outfit

1)copper nozzle 2)plastic nozzle 3)purple copper pipe 4)high pressure nylon tube

5)stainless steel nozzle

Environment controller

A variety of environment controllers are customized are customized from Israel, it can reach a most advanced control level in poultry house control.

Environment controller is designed to control poultry breeding equipment automatically and intelligently according to local climate and equipment requirements.

Main features of environmental control systems

Install different environment controller according to equipment components situation in poultry house.Our controller includes three series of T607 ,T610 and T616 importer from Israel agrologic and MRS6616 developed and produced bu ourselves

Control box made by a national standard box body , and power controls are CHNT and SCHNEIDER

Environment controller is designed to control poultry breeding equipment automatically and intelligently according to local climate and equipment requirements.

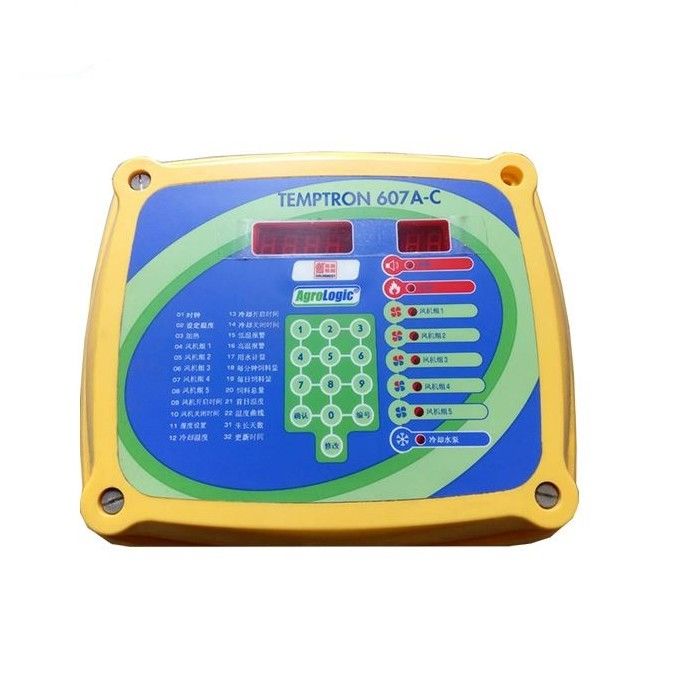

T607

T607 climate controllers is high favorable controller , it can be used for broilers and layers.

Function:T607 has 8outputs for fans, heaters, cooling pad alarm; 2 outputs for regulating fans speed and lighting system; 2 outputs for alarm of feed and water .minimum ventilation curve and temperature reduction curve are built insaide T607 for reference.

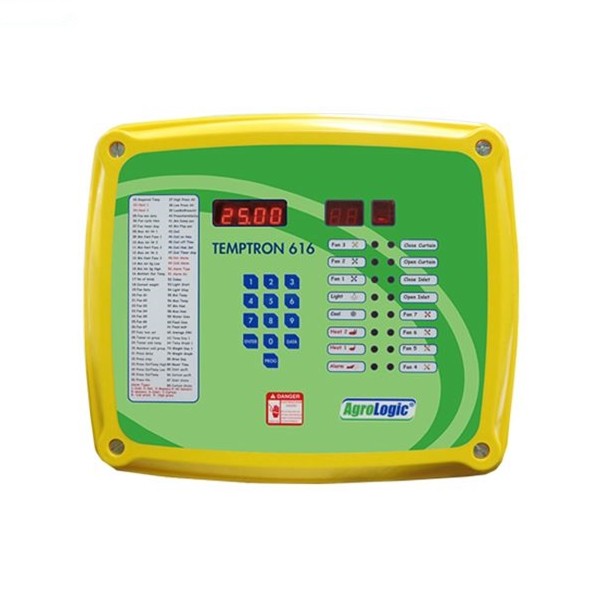

T616

T616 climate controllers from Israel are designed for broiler , layer and breeder raising.

It is a low energy consumption controller with 16 stage, especially designed to control longitudinal ventilation fans,heaters, air inlets, alarm system , cooling pads and curtains, a fan speed regulater and light dimmer is incorported with .

It has a number of time clocks to manage lighting systems to control light at different time , feeding systems on/off and other equipments based on time.

Minimum ventilation curve and temperature reduction curve are built inside for reference , and record water and feed lack, the highest and lowest and lowest temperature.

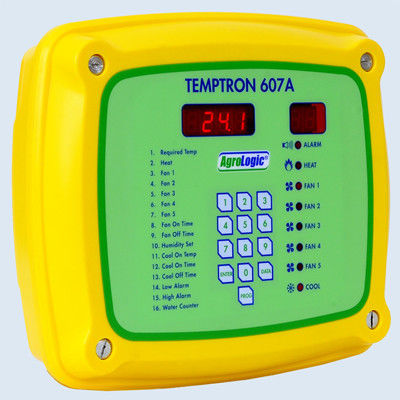

T607
Designed for broiler house

8 stages: 1alarm output, 1group of heater, 5 groups of fan, 1 group of cooling

T610
Normally use for broiler house

10 stages: 1 alarm out put, 1group of heating, 5 groups of fan, 1 group of cooling, 1group of air inlet, 1 group of variable fan

616
Normally for breeder house

12 stages: 1 alarm output, 1 group of heating, 7 group of fan, 1 group of cooling, 1 group of air inlet, 1 group of curtain
