Chicken 20X26mm Goat Farm Plastic Slatted Flooring

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F11
Minimum Order Quantity: 1000pcs
Price: 1.5 - 3 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 5000 per day
Detail Information
Slat Floor: 100% Pure PP Size: 1200mm*500mm*40mm
Used For: Chicken Farm House / Duck Farm Shed Slat Material: 100% PP Raw Material Plus Modified Recipe
Life Span: Over 10 Years Contact: Whatsapp 008618830728667
High Light:

goat farm plastic slatted flooring

,

20X26mm plastic slat flooring

,

2*2.6cm plastic chicken coop flooring


Product Description

Poultry Farm Equipment Plastic Slat Floor for broiler breeder farms



Poultry Slat Flooring:



I.Feature:

Weight: 2000g

Material quality: PP raw material

Dimensions : 1200mm*500mm*40mm

Grid size: 20X26mm (common for chicken, duck, baby chicken and duck) (large hole)

Grid size: 16X16mm (for baby chicken and duck) (small holes)

Size: 1200*500*40mm Weight: 2300g Grid size: 20*22mm



II.Uses

It is used for the breeding of chickens, ducks, geese, pigeons, rabbits and lambs. It is convenient to use on the ground, strong and reliable, ideal for bearing (single piece load is about 500 kg), and the flatness of the damp board can be used with the support wire. Mother adjustment.



III.Specification

The floor has high leakage rate and is easy to flush; it is non-toxic and tasteless; it has stable chemical properties, corrosion resistance, non-absorption and easy cleaning and disinfection. It is easy to install and the product is installed with support beam connection for easy construction. Easy to disassemble and disinfect. During the use of the septic floor, there will be no burrs, no bending and deformation, and moderate elasticity, which can significantly improve the feeding and management conditions of breeders and commercial chickens.



Poultry Slat Floor Main Application

The product is widely used in breeding of sows, piglets, ducks, geese, sheep, dogs, rabbits, etc.

Material
Pure raw materials
Model
5000s
Color
white/blue/green/ black, etc
Holes
20*15mm or 24*20mm
Size
1200mm*500*39mm/1000*500*39mm
Weight of each piece
2.35kg(Big hole), 2.45kg(Small hole)



Poultry Plastic slatted Floor
Size of the floor
Size of the hole
Weight
Max Static Load
Type1
1200*500*40mm
21mm*24mm
2.3kg/pcs
135kg
Type2
1200*500*40mm
21mm*24mm
2.6kg/pcs
150kg
Type3
1000*500*40mm
21mm*24mm
1.8kg/pcs
150kg
Type4
1000*500*40mm
15mm*20mm
1.8kg/pcs
120kg





Poultry Slat Floor Advantage
Light weight, thick double ribs, excellent toughness
Noise reduction and shock absorption function
Excellent chemical stability
Corrosion-resistant, easy to clean, saving time for artificial decontamination
Warm and comfortable, strong heat preservation function, which is conducive to the warmth of the piglets.
High insulation coefficient, good toughness, corrosion resistance, long service life and high residual value
The surface is flat, smooth, no pitting, no pores, good manure effect, easy to clean, friction and corrosion resistance
A variety of colors for you to choose

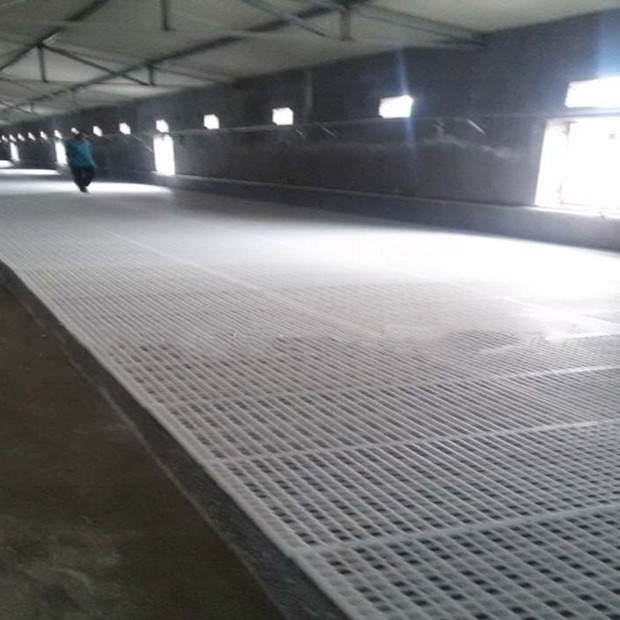

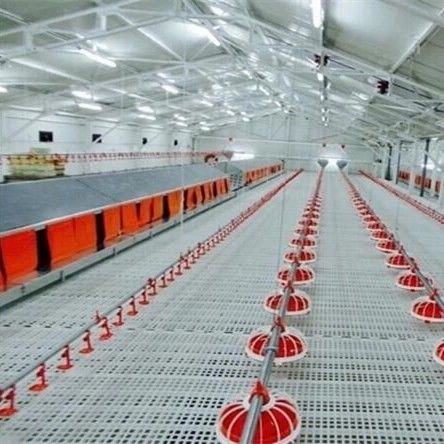

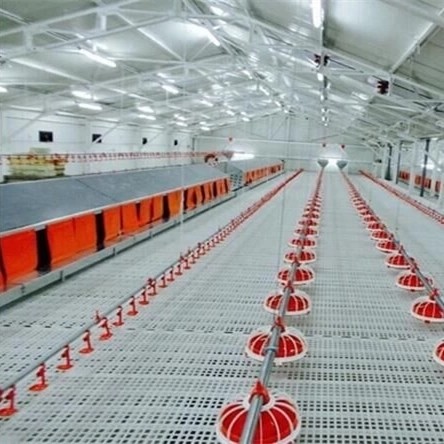

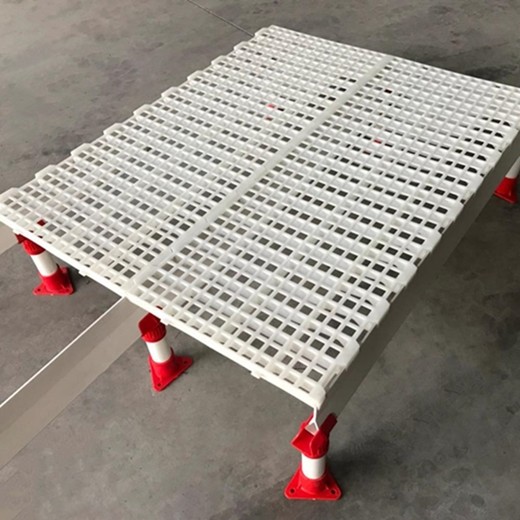

System Pictures:



Chicken 20X26mm Goat Farm Plastic Slatted Flooring 0



Chicken 20X26mm Goat Farm Plastic Slatted Flooring 1



Chicken 20X26mm Goat Farm Plastic Slatted Flooring 2
