100% Pure PP Broiler 40mm Slatted Floor System In Poultry

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F11
Minimum Order Quantity: 1000pcs
Price: 1 - 3 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 5000 per day
Detail Information
Slat Floor: 100% Pure PP Size: 1200mm*500mm*40mm
Used For: Chicken Farm House / Duck Farm Shed Slat Material: 100% PP Raw Material Plus Modified Recipe
Life Span: Over 10 Years Contact: Whatsapp 008618830728667
High Light:

40mm Slatted Floor System In Poultry

,

PP Slatted Floor System

,

plastic floor for goat farm


Product Description

Poultry Farm Equipment Plastic Slat Floor for broiler breeder farms



Poultry Slat Flooring:



(1) Pure raw materials(engineering plastics ) an injection molding.fall into two kinds
brood floor and into poultry floor
(2) Corrosion resistance,anti-aging, In the original package materials for added anti-oxidants,
inhibitor, anti-ultraviolet radiation agent.
(3) Easy installation ,disinfection and cleaning. Even if use high levels of acidic or alkaline
disinfectant, also won't be corrosion.
(4) life span 8--10 years.
(5) The floor joist is Enhanced model steel extrusion, Divided into a clear dung's beam and
Qing qing's dung machine dung beam
(6) One-time clear when installation height of dung can adjust at will
(7) Use clear dung machine poultry house qing dung, best control channels within 2 meters.
(8) Applicable to chickens,ducks,greese and Fattening chickens,ducks,greese and breeder birds.

1. The material engineering polypropylene 100% raw material, plus patent recipe, to keep plastic modification, make the slats resist corrosion, anti-oxidants, anti-inhibitor, anti-ultraviolet, high-duty and flexible.

2. Made by modern molding, the slats finish in one-time.

3. Good leakage dung rate as the rational hole design, no burr on surface.

4. Easy to install and clean, connect one by one firmly, not only slats, but also support legs.

5. The plastic slat's bearing around 250kg.

6. Warranty of 15-20 years using life.



Support pipe: PVC material.

Yellow support base: ABS material.

Regulating screw and cover: ABS material.

Easy to adjust the height and maximum height can be adjusted to 11cm

Material
Pure raw materials
Model
5000s
Color
white/blue/green/ black, etc
Holes
20*15mm or 24*20mm
Size
1200mm*500*39mm/1000*500*39mm
Weight of each piece
2.35kg(Big hole), 2.45kg(Small hole)



Poultry Plastic slatted Floor
Size of the floor
Size of the hole
Weight
Max Static Load
Type1
1200*500*40mm
21mm*24mm
2.3kg/pcs
135kg
Type2
1200*500*40mm
21mm*24mm
2.6kg/pcs
150kg
Type3
1000*500*40mm
21mm*24mm
1.8kg/pcs
150kg
Type4
1000*500*40mm
15mm*20mm
1.8kg/pcs
120kg

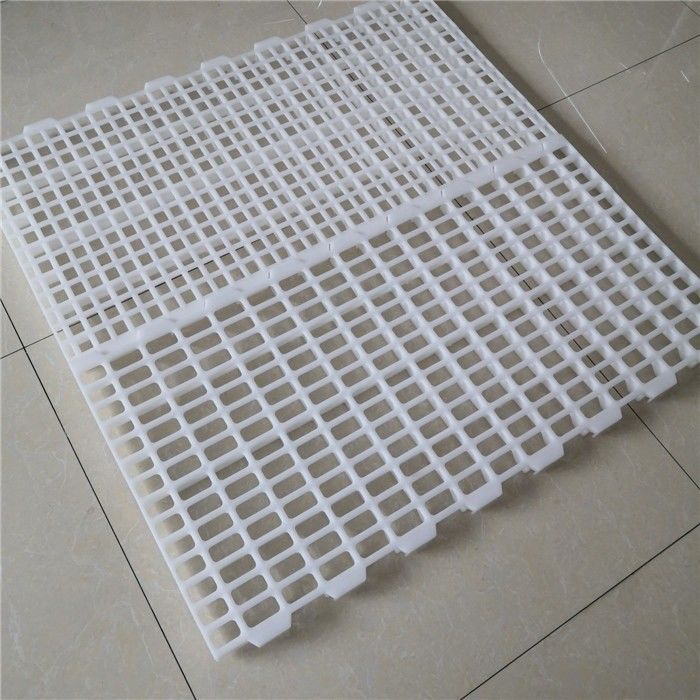

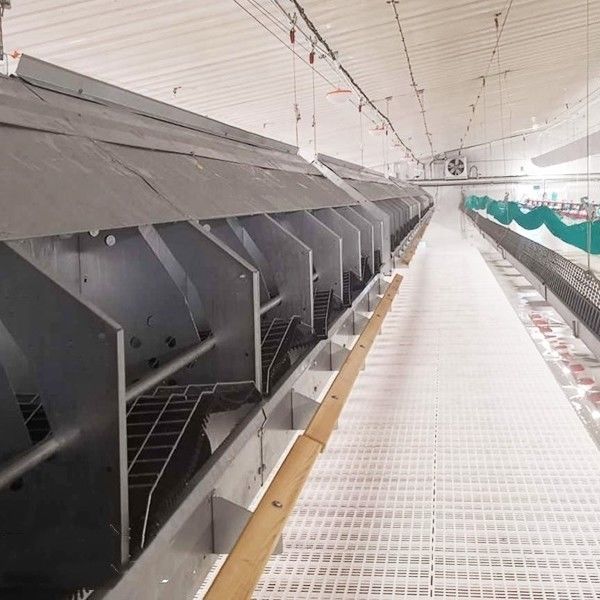

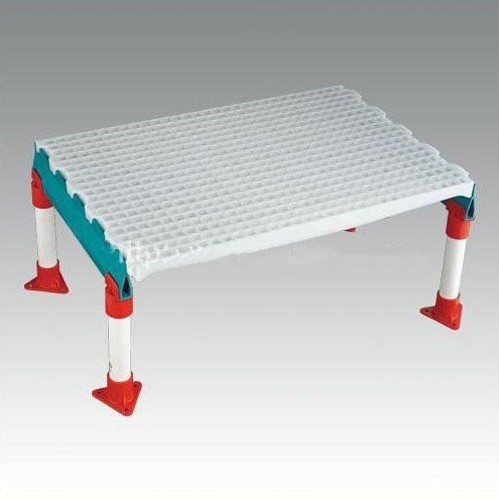

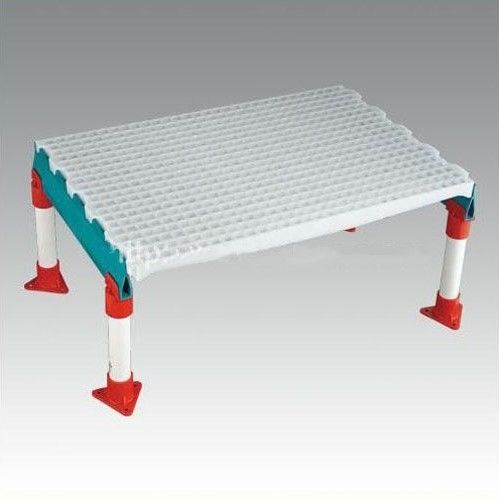

System Pictures:

100% Pure PP Broiler 40mm Slatted Floor System In Poultry 0



100% Pure PP Broiler 40mm Slatted Floor System In Poultry 1



100% Pure PP Broiler 40mm Slatted Floor System In Poultry 2
