Poultry Farm Fully Automatic Broiler Feeding System

Basic Information
Place of Origin: China
Brand Name: XingQida
Model Number: XQD
Minimum Order Quantity: 4 Sets
Price: $620 -$1958 for one piece
Packaging Details: PACKED IN CARTONS
Delivery Time: 8-20 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per month
Detail Information
Core Components: Motor, Pressure Vessel, Nipple, Pressure Reducing Valve Color: White+ Red
Function: Auto Drinking Feeding Place Of Origin: Hebei,, China
Feature: High Sensitivity Water Saving Advantage: Full-automatic,Easy To Install
High Light:

farm automatic broiler feeding system


fully automatic broiler feeding system


poultry automatic broiler feeding system

Product Description

Automatic complete broiler and layer farming poultry equipment

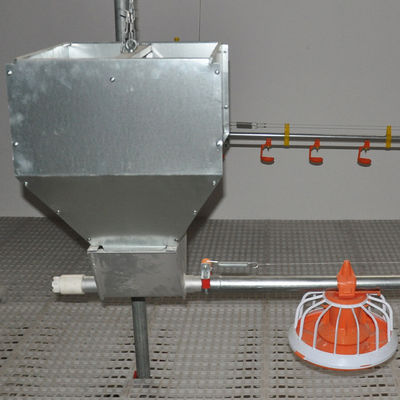

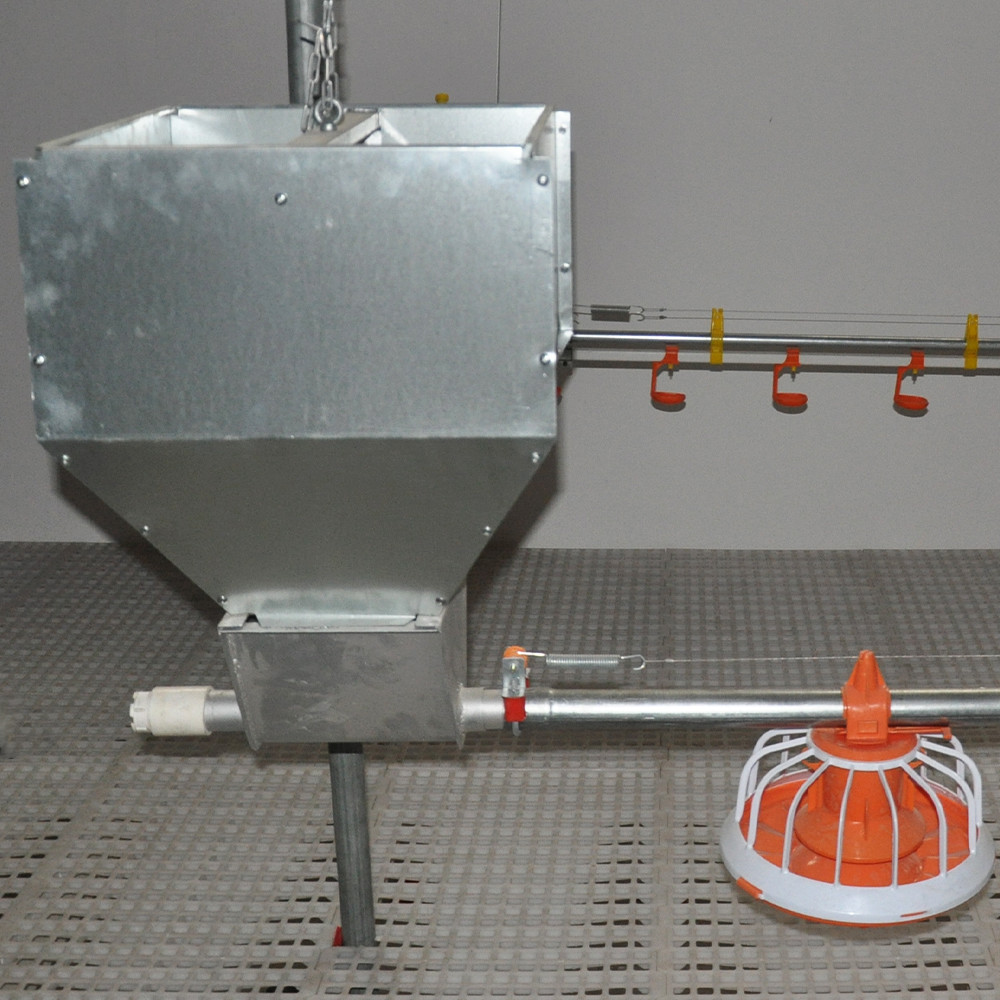

Pan Feeding system:
1) High-quality special driving reduction motor
Power: 0.75kw, 380v, 50hz, 3phase
2) V-shaped Hopper
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-dip galvanized sheet

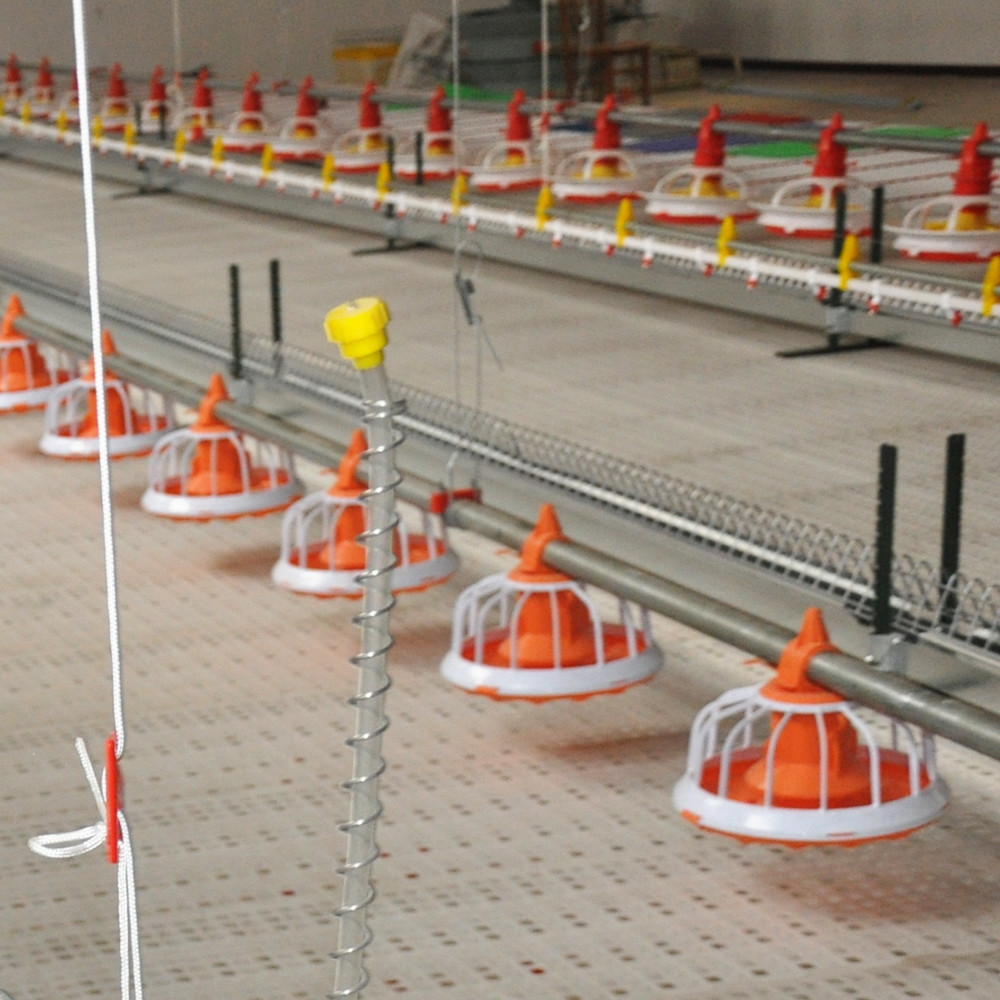

3) Feeder pan: 14/16 grills, 4pans/3m


Nipple Drinking system:


Stable performance with high adjusting sensitivity, the regulator helps to supply the water line with sufficient and evenly distributed drinking water.
Nipple shell adopt high quality engineering plastics PVC , Double tier sealing structure, effectively
avoiding water leaking
It can also flush the sediment in the tube with its large diameter flushing tube line, which serves to
protect the system and reduce the labor for maintenance work.
Water Regulator
Regulating stability. High switching performance.
Sufficient water supply.
Recoil cleaning with good cleaning result, save time&water.
Drip cups
One-arm design is more suitable for modern raising idea.

a. Double-sealing structure, avoiding water leakage and its bad influence to chicken house.
b.The nipple's rod can be movable in360 degrees, easy to drink.
c.The outside shell is made of high quality plastic, the inner rod is made of high quality

Ventilation Fan system:



Ventilation fan system controls poultry house inner enviroment,provides fresh air,proper humidity for your chicken ,ensuring your broilers provide maximum production.


Cooling Pad system:




When the air goes through cooling pads, the heat will be taken down by the evaporation of water. So the air will be cooled before going into your poultry farms.


Enviroment Control system:


Option 1 : Agrologic Brand , imported from Israel, Model: T607/T610/T616
Option 2: Our own brand, also with good function.


Plastic slat system:

1) Slat size: 1200mm*500mm* 40mm
2) Slat Material: 100% Pure PP
3) Beams: PVC, Height: 9cm/12cm
4) Supporting legs: ABS

Foggy system:

1) Pump: 1.5kw/2.2kw
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel

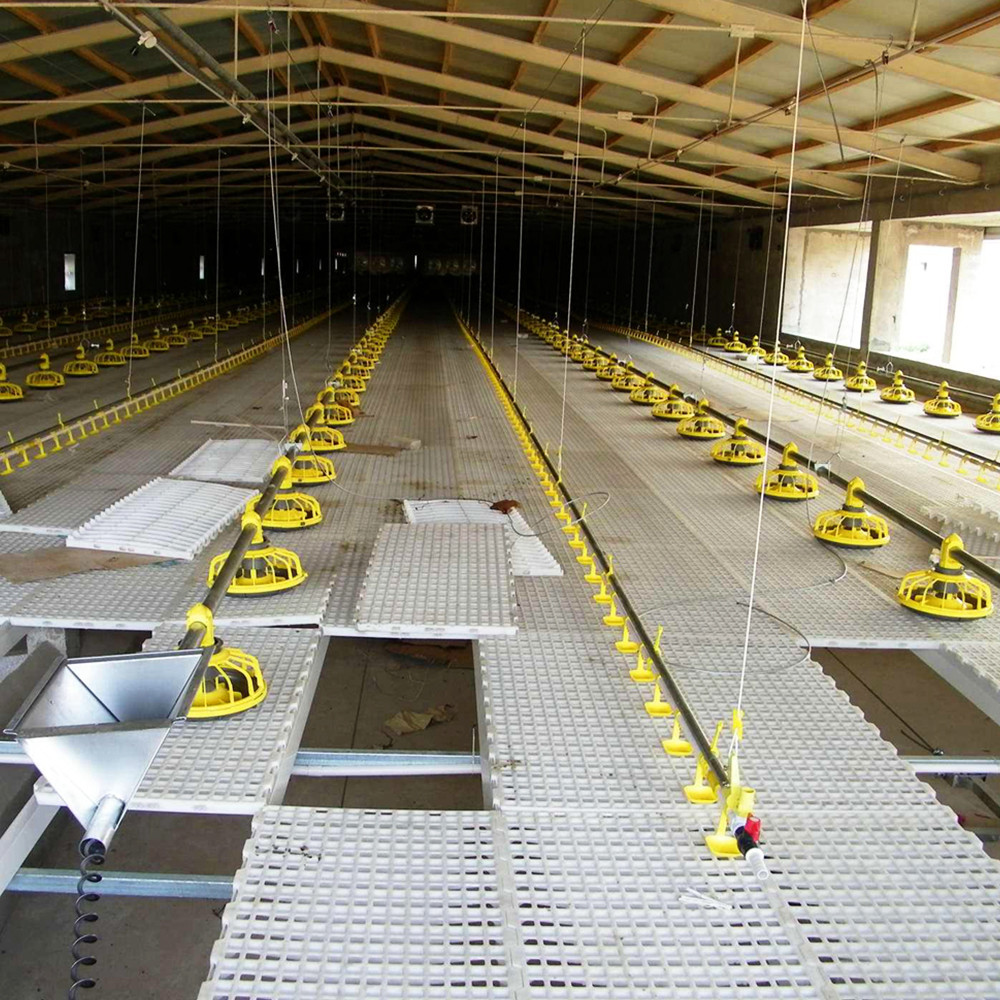

Product Pictures:


Poultry Farm Fully Automatic Broiler Feeding System 0


Our mainly products including:
1.Silo feeding system and manpower hopper feeding system
2.Automatic pan feed line system
3.Automatic nipple drink line system
4.Ventilation system
5.Cooling pad system
6.Environment control system
7.Curtain system
8.Fogging system
9.Heater system
10.Plastic slat floor system
