| Place of Origin: | China |
|---|---|
| Brand Name: | XingQida |
| Model Number: | XQD |
| Minimum Order Quantity: | 5000 metres |
| Price: | $19.5-$45.12 for one piece |
| Packaging Details: | PACKED IN CARTONS |
| Delivery Time: | 8 - 15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Set/Sets per Month auger feeding systems for pig farm |
| Material: | Stainless Steel | Usage: | Livestock Feeding |
|---|---|---|---|
| Power: | 0.75KW, 1.1KW | Motor Speed: | 288ring/min |
| Frame: | PVC Or Hot Deep Galvanized | Place Of Origin: | Henan, China |
| Reduction Ratio: | 5:1 | Type: | Spiral |
| High Light: | 0.75kw automated poultry feeding system,288ring/min automated poultry feeding system |
||
poultry spring auger feed pan system feeding system
Product Application:

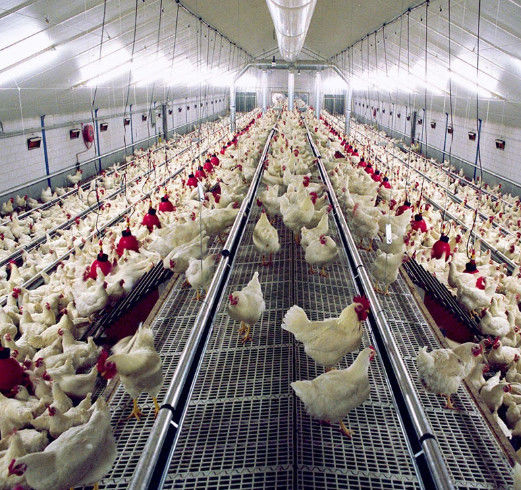

The automatic feeding system consists of the tower, drive, material pipe, auger and other systems. The closed design and automatic feeding increase the management efficiency, reduce various cross infections, and realize the high automation of the whole chicken farm production process.
Silo:
The silo consist of main body, cover, ladder, supporting leg etc. the main body is made of hot-dip galvanized sheet with double surface coating thickness 275g/m2, the main size is Φ1830mm, Φ2750mm,Φ3670mm etc.
Features and advantages:
1. Set inspection hole on the lower for checking feed level.
2. The vent is on the upper to prevent the temperature of feedstuff too high in the silo
3. Can be equipped with weighing system, to accurate weigh feed in the silo and record the volume of inlet feed and outlet feeding.
4. With high strength, corrosion resistance, long life, easy installation.

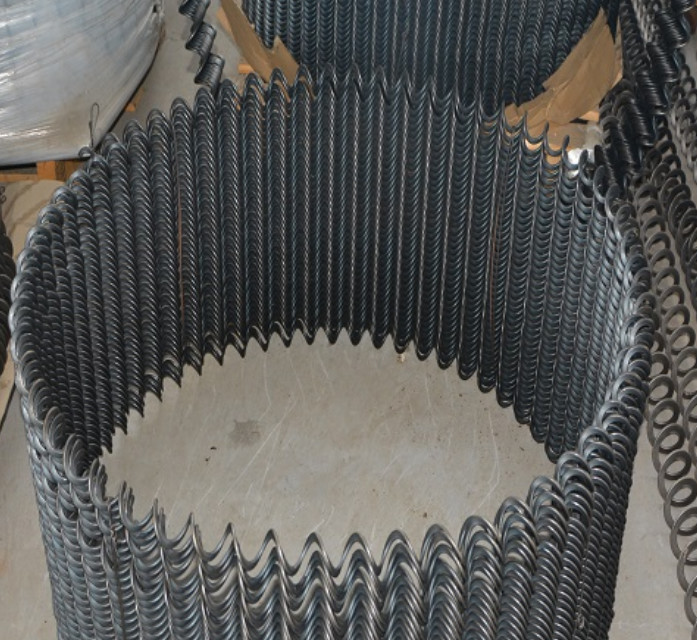

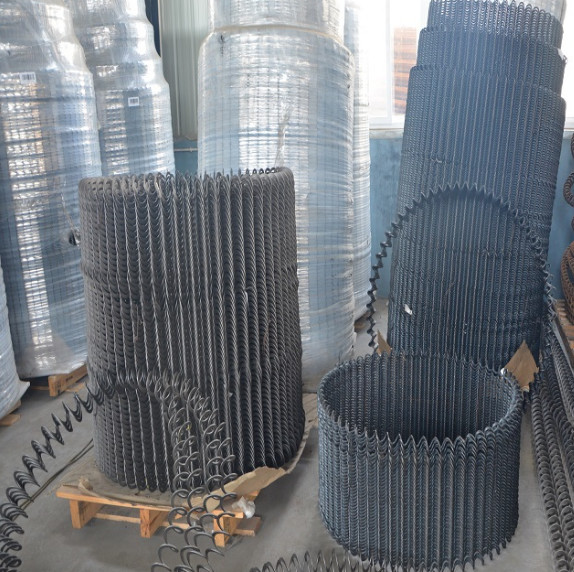

Feeding tube and spiral wire:

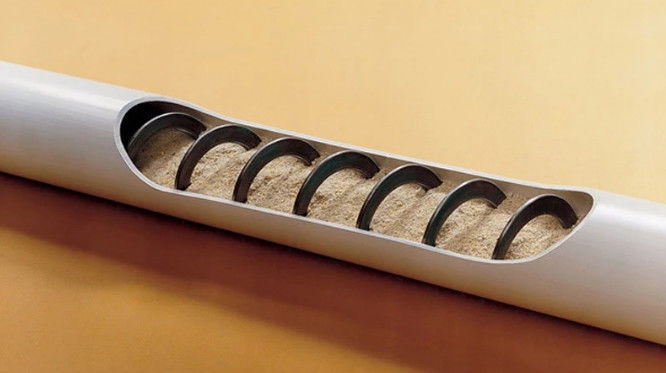

The motor drives spiral wire conveying feedstuff from silo to feeding device. The feeding device has crane type and chain type.
Our service:
Pre-sale services
1) Provide technical consulting
2 ) Design poultry farm according to clients' requirement.
3) Select the suitable equipment.
During the sales
1) Provide Equipment manufacture, equipment inspection, arrange delivery etc
After sale service
1) Send engineers onsite to supervising installation
2 ) Help customer Examine the equipments and commissioning.
3) Provide trainning to operating the equipment
| Our mainly products including: | |
| 1.Silo feeding system and manpower hopper feeding system | |
| 2.Automatic pan feed line system | |
| 3.Automatic nipple drink line system | |
| 4.Ventilation system | |
| 5.Cooling pad system | |
| 6.Environment control system | |
| 7.Curtain system | |
| 8.Fogging system | |
| 9.Heater system | |
| 10.Plastic slat floor system |
