Detail Information

Blade Material:	Stainless Steel	Size:	36" / 50"
Poultry Fan Motor:	380V 50HZ	Phase:	Single Or Three Phase
Application:	Exhaust Ventilation	Contact:	Whatsapp 008618830728667
High Light:	circulation fans for poultry houses , 1380mm chicken house exhaust fan , ventilation system in greenhouse

Product Description

Big Large Airflow Greenhouse Poultry Ventilation Industrial Shutter Exhaust Fan Technical Details

The Big Large Airflow Greenhouse Poultry Ventilation Industrial Shutter Exhaust Fan  for factory warehouse comes with shutters which keeps out the rain and dust, steel blades are enclosed in a sturdy steel spiral wire guard.

Big Large Airflow Greenhouse Poultry Ventilation Industrial Shutter Exhaust Fan Technical Details

Type:	Standard	OEM
Fan Size	800mmx800mmx350mm (32" x 32"x 14")	Any size
Fan Diameter(inch)	26	26
Fan Color	Silver	Painted or coating in any color
Fan Blade Material	1mm galvanized steel	as per customers’ requirements
Fan Frame Material	0.6mm galvanized steel	0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel

Size Information

Specifications of Exhaust Fans of All Sizes

Model	Dimensions	Air Flow	Power	Workable Areas	Fan Speed	Noise
200#	200mmx200mmx170mm	588CFM	150W	5~20㎡	2000rpm	<45db
300#	300mmx300mmx200mm	1200CFM	150W	5~20㎡	2200rpm	<50db
400#	400mmx400mmx300mm	1500CFM	250W	20~40㎡	1400rpm	<55db
500#	500mmx500mmx300mm	3000CFM	250W	25~50㎡	1400rpm	<55db
600#	600mmx600mmx300mm	4700CFM	250W	50~60㎡	960rpm	<55db
700#	700mmx700mmx300mm	6000CFM	250W	60~70㎡	960rpm	<60db
800#	800mmx800mmx300mm	7650CFM	250W	70~80㎡	960rpm	<60db
800#	800mmx800mmx350mm	13000CFM	370 W	70~80㎡	450rpm	<60db
900#	900mmx900mmx350mm	16000CFM	370 W	80~90㎡	450rpm	<55db
1000#	1000mmx1000mmx350mm	17650CFM	550 W	90~100㎡	450rpm	<60db
1060#	1060mmx1060mmx350mm	19000CFM	550 W	100~120㎡	450rpm	<60db
1100#	1100mmx1100mmx350mm	20000CFM	550 W	110~130㎡	450rpm	<60db
1220#	1220mmx1220mmx350mm	22000CFM	750 W	120~140㎡	450rpm	<60db
1380#	1380mmx1380mmx350mm	26000CFM	1100 W	140~160㎡	450rpm	<65db
1530#	1530mmx1530mmx400mm	32800CFM	1500W	160~200㎡	450rpm	<70db
1750#	1750mmx1750mmx450mm	40000CFM	1800W	200~220㎡	350rpm	<70db

Why Chose Us

Long Standing History

10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.

Well Equipped

Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers.

Fully Customizable

Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.

Most Complete Fan Sizes

10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM

Fast Delivery

Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days

Complete Product Line

95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of

the exhaust fans

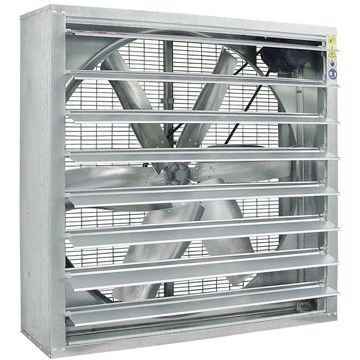

Farm 54Inch 1380mm Circulation Fans For Poultry Houses 0

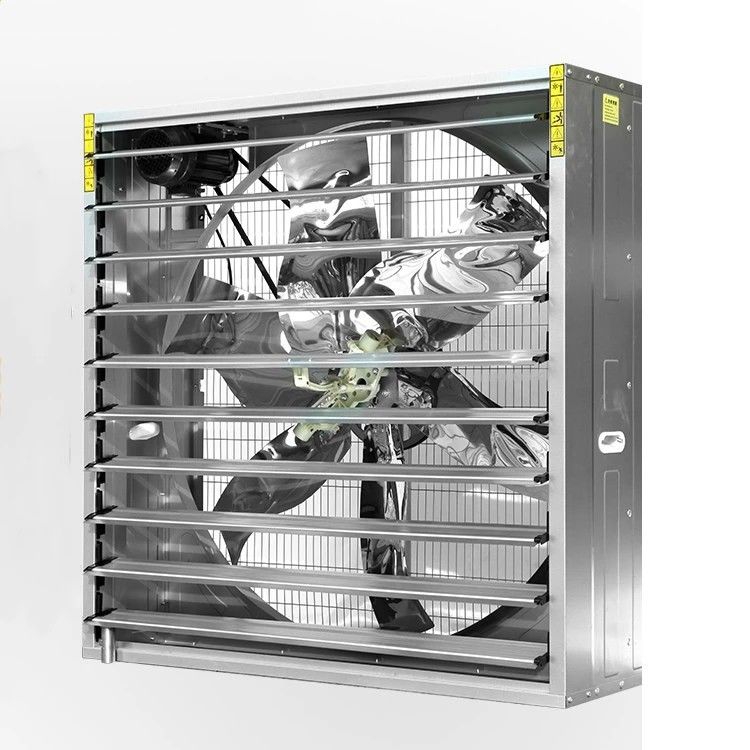

Farm 54Inch 1380mm Circulation Fans For Poultry Houses 1

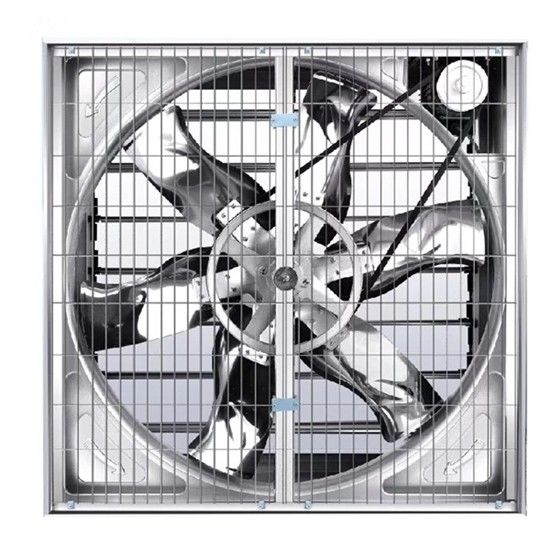

Farm 54Inch 1380mm Circulation Fans For Poultry Houses 2

Contact:

Jing Yang

Mob/whatsapp/wechat: 0086 18830728667

Email: Jing(@)xqdmachine.com

Web: www.xqdmachine.com

Tag:

Place of Origin:	China
Brand Name:	XDA
Model Number:	XDA-F7

Minimum Order Quantity:	10 set
Price:	70 - 250 USD
Packaging Details:	Standard
Delivery Time:	15 - 30 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 sets
