14 Grids 72mm Ground Broiler Chicken Shed Construction

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F02
Minimum Order Quantity: 1 house
Price: 3000 - 50000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Material: Steel And Plastic Voltage: 380V/220V Three Phase Or Single Phase
Controller: T607 / T610 / T616 Feeding Line: 4pans/3m Or 3pans/3m
Accessories: Germany Sensor, South Africa Auger Operation: Automatic
Life Span: Over 20 Years Contact: Whatsapp 008618830728667
High Light:

Broiler Chicken Shed Construction


72mm Broiler Chicken Shed


14 Grids poultry farm shed

Product Description

Automatic Broiler Breeder Farm Equipment For Complete Automatic Poultry House


Automatic Poultry House:


Poultry house Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purling Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System Purling Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall panel Sandwich Panel / Corrugated Steel Sheet/steel wire
Accessories Window Aluminum Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rain spout PVC



Automatic Poultry Keeping system:



1 Environment Control System A variety of environment controllers are customized from Israel,it can reach a most advanced control leave in poultry house control.
2 Main Feed Line System Silo /manpower hopper is the beginning of main feed line.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
3 Pan Feeding Line System There is a feed sensor at the end of each feeding line which controls motor one and off to achieve automatic feed delivery to each feed pan.
4 Automatic Drinking Line Supply clean water to each nipple steady,
chicken can drink water from 360 degree freely
5 Ventilation System Make chicken shed keep suitable temperature
for different stage chicken
6 Cooling Pad System The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.
7 Heating System In winter or chicks,it make chicken house has a suitable temperature.
8 Fogging And Disinfection It is effectively tools for cooling,damping,dedusting and disinfecting the house



1. Main feeding line

Automatic Broiler Feeding Equipment For Closed Poultry Chicken Farm House Floor Ground System

Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a material level sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.

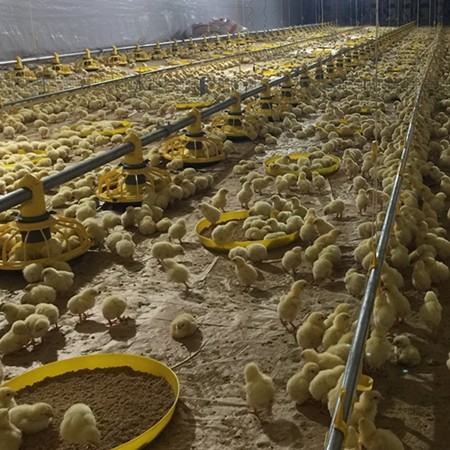

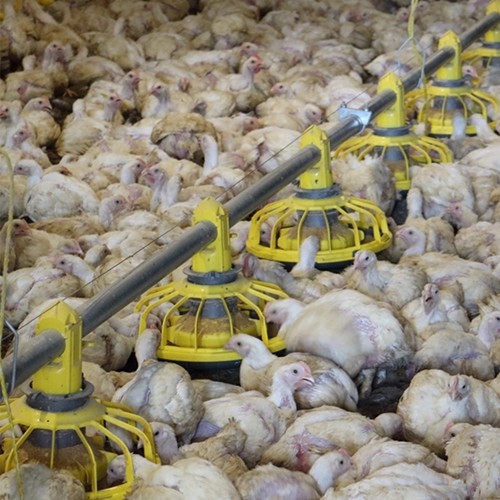

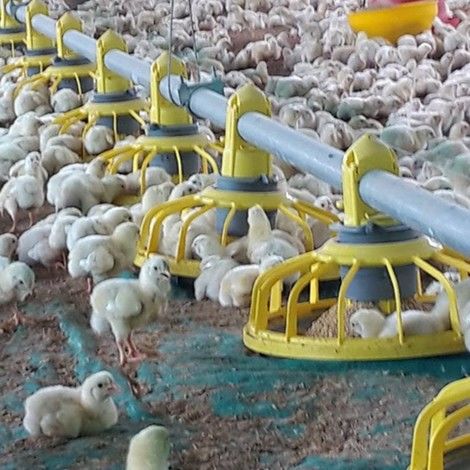

2. Automatic pan feeding line system

Performance parameters of feeding line system

(1) High-quality special driving reduction motor.

(2) V-shaper Bin(with hopper)

Bin volume: 115L, hopper volume: 38L

Material: Hot-DIP galvanized sheet.

(3) Feeding system: Diameter of conveying pipe: Diameter: 45mm

Material: Hot-DIP galvanized sheet pipe with the zinc coating amount of morethan 275 square meter.

Helical spring auger from South Africa feeding capacity: 450kg/h.

(4) Material level sensor from Israel: Time delay range0 to 2 hours



3. Automatic nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.



4. Automatic ventilation fan system
This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window


5. Environment control system
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working m-ode according to the local climate and raising environment


6. Cooling pad system

Installation:Submersible pump being installed under water,keep the water source clean and the ground neat and beautiful.


Water Volume Control:control the volume of water by adjusting the valve,keep the cooling pad drenched evenly after water supplying,make the water flow down along the corrugation of the wet curtain.


Water Quality Control:Filter being installed at the water source can keep the supplied water clean.The special substance being applied on the surface of wet curtain can effectively prevent algaebacteria from breeding on the surface


7. Spraying and disinfecting system
This system effectively cools, humidifies, dedusts and disinfects the hen house(the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)


System Pictures:

14 Grids 72mm Ground Broiler Chicken Shed Construction 0


14 Grids 72mm Ground Broiler Chicken Shed Construction 1


14 Grids 72mm Ground Broiler Chicken Shed Construction 2


14 Grids 72mm Ground Broiler Chicken Shed Construction 3
