Closed House Chicken 20T Poultry Farm Equipment

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 3500 - 85000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Name: Automatic Broiler Steel Structure Constrction House Feeding System: Automatic Pan Feeder Line
Drinking System: Automatic Nipple Drinker Line Type: Fully Automatic Operation
Application: Poultry, Broiler, Breeder, Duck House Delivery Time: 30 Days
Life Span: Over 15 Years Contact: Whatsapp 008618830728667
High Light:

20T Poultry Farm Equipment


4 Pans Poultry Farm Equipment


600Kg chicken poultry house

Product Description

Prefabricated Automatic Poultry House Farm Steel Construction Building Equipment for broiler breeder house shed


Automatic Poultry House:

Steel Structure Construction Poultry Closed House Building For Chicken Farming Automatic Shed

Steel structure poultry farm building has features of high fire resistance, strong corrosion resistance.
As long as you can have your own thoughts, we will help you to realize it.
Poultry farm is mainly used for broiler and layer chicken, you can choose free range or cage system with automatic quipment to breed.
We can introduce our partner (the equipments' supplier )to you,then we work together to provide more workable project for you.
Parts&Accessories Specification

Feed silo

(Option 1)

Manpower hopper

(Option 2)

Feed silo:

1). Silo with standard ladder and guard railing, safe and reliable;

2). Firm connection and good sealing performance;

3). Galvanized steel sheet, more than 10 years service life.

4). Size: 3T, 5T, 8T, 10T, 15T, 18T, 20T.

Manpower hopper:

1). Galvanized steel sheet;

2). Size: 600Kg, 800Kg

Driving motor

Power: 0.75Kw

Voltage: 380V/220V/customized, Three-phase/Single-phase

Frequency: 50Hz

Feed conveying pipe

with auger inside

Diamater of conveying pipe: Φ75mm, Material:PVC

Helical spring auger: imported from South Africa, feed ability:1400Kg/h

Conveying length: 60m

Sensor imported from Germany



Automatic Feeding System:


The automatic feeding system consists of the tower, drive, material pipe, auger and other systems. The closed design and automatic feeding increase the management efficiency, reduce various cross infections, and realize the high automation of the whole chicken farm production process.



The silo consist of main body, cover, ladder, supporting leg etc. the main body is made of hot-dip galvanized sheet with double surface coating thickness 275g/m2, the main size is Φ1830mm, Φ2750mm,Φ3670mm etc.

Features and advantage:
1. Set inspection hole on the lower for checking feed level.
2. The vent is on the upper to prevent the temperature of feedstuff too high in the silo
3. Can be equipped with weighing system, to accurate weigh feed in the silo and record the volume of inlet feed and outlet feeding.
4. With high strength, corrosion resistance, long life, easy installation.

Main feeding system is a complete set of automatic feeding system, including a material conveying pipe,silo, auger, drive motor and a material level sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the feeding pan system .There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.


Automatic poultry feeding line system:

Chicken disk type automatic feeding system consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an antiperching device and a material level sensor.

The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.


Feeding system:

Diameter of conveying pipe:45mm

Material :hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2

Helical spring auger from South Africa feeding capacity:450kg/h


Parts&Accessories Specification
Vice hopper

Size: 70Kg, 90Kg;

Material: hot-dip galvanized sheet, thickness: 1mm



Drving motor

Power: 0.75Kw/1.1Kw/1.5Kw,

Voltage: 380V/220V/customized, Three-phase$2FSingle-phase

Frequency: 50Hz, AC current

Pan feeding lines

Feed pipe:

Diameter of feed pipe: Φ45mm

Material: hot-dip galvanized sheet pipe with the zinc coating amount—more than 275g/m2.


Helical spring auger, imported from South Africa, feeding ability:400Kg/h

Feed pan:

14 or 16 grilles, ensuring enough feeding space; Made of high wear-resistant pure engineering plastic——PP (Polypropylene), very durable; Feed discharge amount adjustable, meet eating demands from day-old chicks to adult chickens.

Feeding line specification: 4 feed pans/3m, 3 feed pans/3m

Feed pan capacity: 50-55 broilers/pan


imported from Germany, time delay range: 0-2hours

The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed and will stop working when sensor touchs feed.

Lifting&suspension system It's very convenient to adjust the feeding line height by winch.


Automatic Nipple Drinking:


Square water supply pipe 22mmx22mm.

Light resistant water pipe prevent algae.

Nipple with stainless steel body and plastic shell.

Galvanized support pipe.

Easy push together assembly.

Folding hangers hold the water pipe firmly in peace.


Product name water press regulator for poultry drinking line
Usage reducing water pressure
Material ABS Engineering plastic
Regulating Range 0.2-0.25Mpa
Color orange
Application poultry drinking line


Advantage of poultry pressure regulator:

1.Large flow of automatic water supply

Regulator design with oversized intake flow regulator, the regulator is currently used by more than the amount of water increased by 50%.

2.Automatic washing

Designed to automatically flush and two-way combination of automatic water valve,when rotated to wash stalls, can automatically internal regulator inlet and rinse thoroughly,rinse after rotation to shift to automatic voltage regulator water supply.

3.Fast Supply Water

When the waterline needs a quick supply, rotary valves can be combined to wash stalls, doubling the amount of water flow rate is increased several times, the water in the water line

will quickly reach the end of the waterline, so timely synchronized poultry drinking water.

4.Automatic control

Automatic control, reduce labor intensity, closed water supply, easy to install and use.

Installation and dismantlement of feeder are extremely easy, one person can operate easily.

Ventilation system:

We have centrifugal push-pull type exhaust fans and butterfly cone fans, besides, we provide swung drop hammer

exhaust fans.

Specifications 50'' butterfly cone fan 50'' axial flow box fan 36'' axial flow box fan
Flow amount(m3/h) 51020 43170 20800
Size(L*W*H)(mm) 1380*1380*1360 1380*1380*450 1000*1000*450
Noise level(db) ≤65 ≤65 ≤64
Power(Kw) 1.1 1.1 0.4
Voltage(V) 380/220/others 380/220/others 380/220/others
Current(A) 2.8 2.8 1.25
Weight(Kg) 100 89 54


System Pictures:

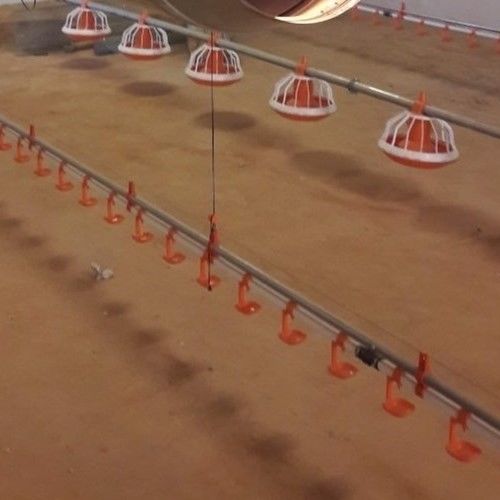

Closed House Chicken 20T Poultry Farm Equipment 0

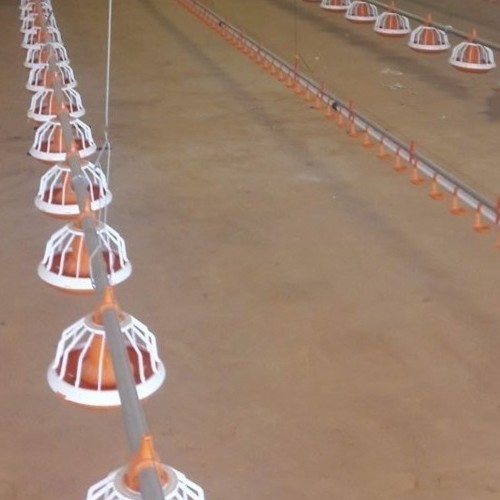

Closed House Chicken 20T Poultry Farm Equipment 1

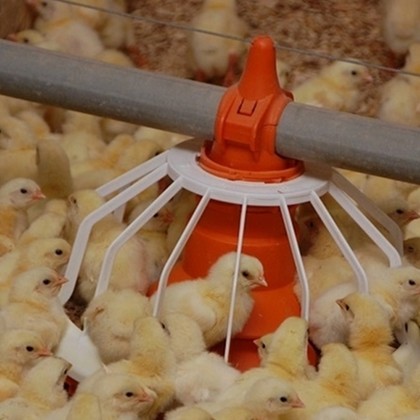

Closed House Chicken 20T Poultry Farm Equipment 2
