Poultry Farm Auto 380V Chicken House Equipment

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 3200 - 72000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Name: Automatic Broiler House Equipment Feeding System: Automatic Pan Feeder Line
Drinking System: Automatic Nipple Drinker Line Silo Material: Hot Dip Galvanized
Driving Motor: 380V, 50hz, 3 Phases, 0.75-1.1KW Feeding Pan: 14-16 Grid
Life Span: Over 15 Years Contact: Whatsapp 008618830728667
High Light:

380V Chicken House Equipment


20 Tons Chicken House Equipment


50hz broiler chicken equipment

Product Description

Prefabricated Automatic Poultry Broiler Poultry Equipment House Farm for broiler breeder shed


Automatic Poultry House:

Auto Broiler Poultry Equipment House For Chicken Feeding Farming Open Shed Machine China

Steel structure poultry farm building has features of high fire resistance, strong corrosion resistance.
As long as you can have your own thoughts, we will help you to realize it.
Poultry farm is mainly used for broiler and layer chicken, you can choose free range or cage system with automatic quipment to breed.
We can introduce our partner (the equipments' supplier )to you,then we work together to provide more workable project for you.
1. Main feed line system: Silo /manpower hopper is the beginning of main feed line.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
2. Automatic pan feeding line system: There is a feed sensor at the end of each feeding line which controls motor one and off to achieve automatic feed delivery to each feed pan.
3. Automatic Nipple drinking line system: supply clean water to each nipple steady, chicken can drink water from 360
4. Ventilation system: make chicken shed keep suitable temperature for different stage chicken
5. Environment control system: A variety of environment controllers are customized from Israel,it can reach a most advanced control leave in poultry house control.
6. Cooling pad system: The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.
7. Fogging system: It is effectively tools for cooling,damping,dedusting and disinfecting the house.
8. Heating system: In winter or chicks,it make chicken house has a suitable temperature.



Automatic Feeding System:



Specification of Silo
Model Diameter Height Tiers Volumn
10Tons 2.45m 6.8m 3 17.7m³
15Tons 2.75m 6.8m 3 22m³
20Tons 3.05m 7m 3 29m³



The silo consist of main body, cover, ladder, supporting leg etc. the main body is made of hot-dip galvanized sheet with double surface coating thickness 275g/m2, the main size is Φ1830mm, Φ2750mm,Φ3670mm etc.


Feed silos chicken farm cosists of silo body sheets, silo lid, collar, hopper sheets, roof panels, silo legs, ladder system. All parts are manufatured to engineering design specifications and quality checked to ensure hassle-free assembly and use

As a professional manufacturer of storage equipment, we have developed, designed and manufactured assembly steel silos
The standard ladder and fence is safe and reliable.
The feed bin is fastened strongly and sealed.
Our feed bin made by high quality galvanized steel sheet.
Bin lever indicators at bottom and roof

1). Silo standard ladder which has a guard railing and is safe and reliable;
2). Firm connection and good sealing performance;
3). High-quality plates, for more than 30-year service life


Steel silo the panel thickness 1.2mm,double side hot galvanized,supporting stent 3.0mm thickness.
2. 40 degree roof panel, with high efficiency and easy to full of feed.
3. Water proof design design directs moisture to drip off the silo side wall and keep the water off the silo hopper
4. Seal strip between hopper sheets prevent water from silo to avod feed moldy
5. Special designed opening devices, easy operation in wind
6  Special designed hopper panel can reduce feed piled up
7  Different type of bottom cone bucket with silo boot, meet complex feed conveyor requirement
8.  Ladder and inspection window, for checking feed condition
9. Electrical feed weighing system could equipped
10. Electrical printing system could equipped


Feeding tube and spiral wire

The motor drives spiral wire conveying feedstuff from silo to feeding device. The feeding device has crane type and chain type.


Item Chicken feeding system
Motor Power 220V or 380V, 0.75KW
Use for Chicken, Hen, Chick, Duck, Goose, Bird, Quail
Material of pipe Galvanized steel pipe
Length of pipe 3 meters
Feeding type Automatic spiral feeding line
Capacity of pan Each pan has 14grids or 16grids
Intervel of feeding pan 0.75m
Length Customized


Feed pan is the core of feeding system. Feed in the hopper is delivered by the motor, through delivery pipe to fulfill feed pans one by one.


Advantage of the Feeder Pan for Broiler

1 Whole set automatic control , saving labour.

2 Best design for chicken shed to achieve fast growth for chicken.

3 We just run high quality products ,long life span for equipment.

4 High quality and sweet aftersale service.



Automatic Nipple Drinking:


Use good quality engineering plastic for outer,for the inner,we use good quality stainless stell.All nipples are anti-rusting,service life over 10 years.

Double-sealing structure,with good seal ability,can avoid to effect the chicken house for leaking.Valve rod is movable in 360 degree,it's suitable for all chicken to drink.


Air inlet window:

* With UV resistant additive,air inlet has stronger anti-aging ability,longer service life.

* The unique structure on window edge making it more closely and firmly.

* Wind deflector can prevent cold wind blowing down,make the fresh air blow in the center of chicken house,which ensures a better ventilation effect.

* Double spring ensures excelling sealing.

* Flexible opening with anti-bird nets.

*Manuel control:Operater will check the pressure of chicken house,control the winch by hand until meet the request.


Environment control systems:

* Install different environment controller according to equipment components situation in poultry house.Our controller includes three series of T607,T610 and T616 imported from Israel Agrologic and MRS 6616 developed and produced by ourselves.

* Control box made by a mational standard box body,and power controls are CHNT and SCHNEIDER.

* Environment controller is designed to control poultry breeding equipment automatically and intelligently according to local climate and equipment requirements.

A variety of environment controllers are customized from Israel,it can reach a most advanced control level in poultry house control.



System Pictures:

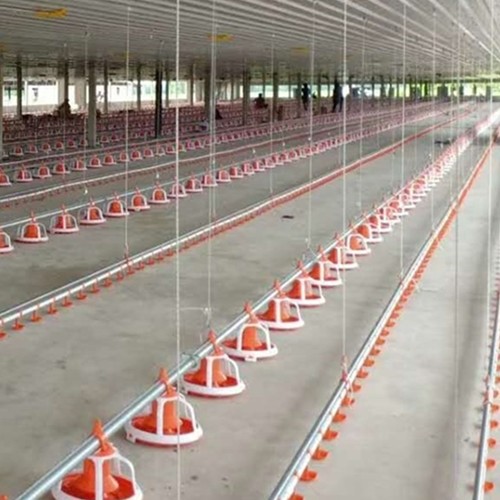

.Poultry Farm Auto 380V Chicken House Equipment 0

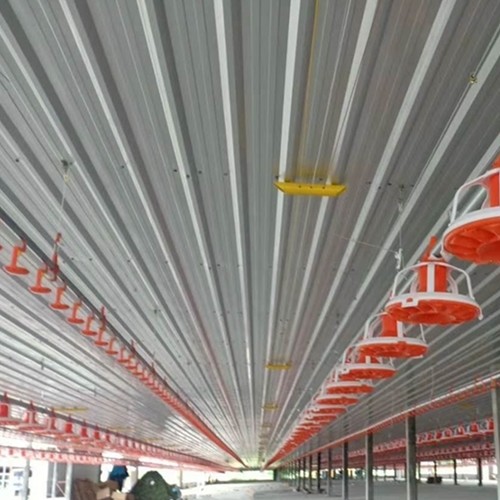

Poultry Farm Auto 380V Chicken House Equipment 1

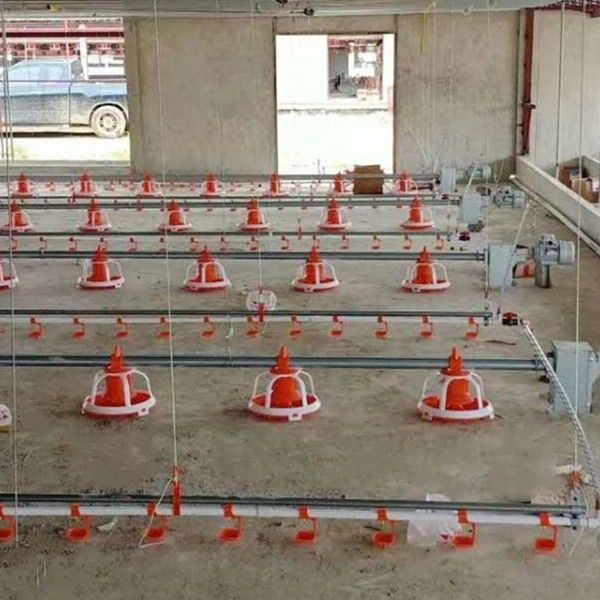

Poultry Farm Auto 380V Chicken House Equipment 2
