| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F01 |
| Minimum Order Quantity: | 1 house |
| Price: | 5000 - 50000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 - 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 houses per month |
| Name: | Automatic Poultry House Steel House | Feeding System: | Automatic Pan Feeding Line |
|---|---|---|---|
| Drinking System: | Automatic Nipple Drinking Line | Operation: | Fully Automatic |
| Usage: | Poultry, Broiler, Breeder, Duck House | Delivery Time: | 30 Days |
| Life Time: | 20 Years | Contact: | Whatsapp 008618830728667 |
| High Light: | 50℃ Poultry Farm Equipment,50kg Poultry Farm Equipment,Q235 modern poultry house |
||
Complete Automatic Poultry House Farm Steel Construction Building Equipment for broiler breeder house shed
Automatic Poultry House:
Customized Poultry House Steel Structure Chicken Farm Building For Chicken Automatic Broiler
Specifications:
A. Main Steel: Q345, Q235, Q345B, Q235B Etc
B. Colomn & Beam: Welded or hot rolled H section
C. Connection Method of Steel Structure: Welding Connection or Bolt Connection
D. Wall & Roof: EPS, Rockwool, Glasswool, PU sandwich panels; Or corrugated Steel Sheet
E. Door: Rolling Door or Sliding Door
F. Window: UPVC window or Aluminum Alloy Window
G. Surface: Hot dipped galvanized Or grey color painted
H. Crane: 5MT, 10MT, 15MT and more
Draing & Quotation:
A: Costomized design is acceptable;
B. Specification requested:
1. Size: Length * Width * Height
2. Local weather: Snow load, wind load
3. Wall and roof material
4. Door and window size and lcoation
5. Equipment you need
6. How many chickens will be feed in this chicken farm house
7. Do you need exhause fans and drop curtain
8. Equipment you need: Cooling Pad, Ventilation Fan, Feeding Pan, Nipple Watering System, Environment Control, Heating, etc.
| Specification | |||
| Main Steel Frame | Column&Beam | Q235,Q345 Welded H Section Steel | |
| Purlin | Q235 C&Z purlin | ||
| Knee brace | Q235 Angle Steel | ||
| Tie Rod | Q235 Circular Steel Pipe | ||
| Secondary Frame | Brace | Q235 Round Bar | |
| Vertical&Horizontal Support | Q235 Angle Steel,Round Bar or Steel Pipe | ||
| Roof Panel | EPS/Glass Fiber/Rockwool/PU Sandwich Panel or Steel Sheet | ||
| Maintenance system | Wall Panel | Sandwich Panel /Corrugated Steel Sheet | |
| Window | Aluminiumn Alloy/PVC/Sandwich Panel | ||
| Asscessories | Door | Sliding Sandwich Panel door/ Rooling Metal door | |
| Rainspout | PVC | ||
| Live load on roof | 50kg/Sqm(According to your request) | ||
| Wind Resistance Grade | 12 Grades | ||
| Earthquake-resistance | 8 Grades | ||
| Structure Usage | UP to 50 years | ||
| Temperature | Suitable temperature:-50℃~+50℃ | ||
| Options | Vast array of colors and textures availiable | ||
| Paint Options | Alkyd paiting,two primary painting,one finish painting(gray, red, blue,epoxy zinc etc) or Galvanized | ||
1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.
4. Environmental control system: Automatically control the temperature, humidity, light, etc.
5. Fogging system: Regularly disinfecte the poultry house.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.
Main Feeding System:
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.
| Consists | Item Name | Specifications | Remarks |
| silo( or big feed hopper), drive system, sensor, main feeding line pipe, auger | feed silo | 8t/10t/14t |
1.Silo foundation and the embedded parts should be borne by the buyer; 2.Feed silo adopts galvanized steel belt or fiber reinforced plastic, which is customized by the customer's demand; |
| big feed hopper | 600kg/800kg | ||
| drive system | Italy motor, 0.75kW | ||
| sensor | IFM brand | ||
| Feeding line pipe | 45mm galv. steel | ||
| auger | made in South Africa |

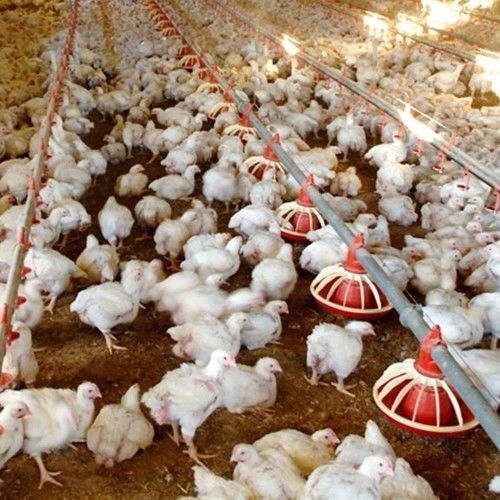

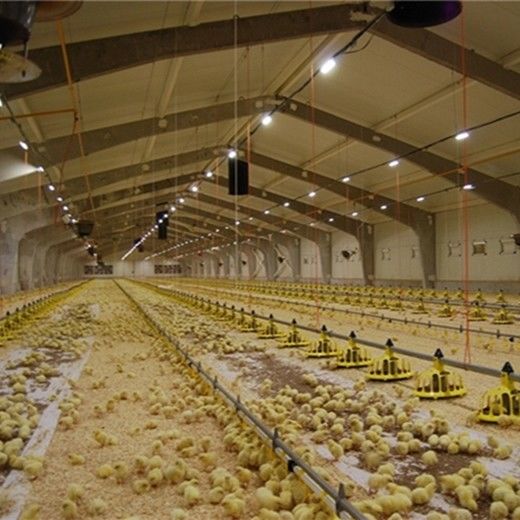

Automatic Pan Feeding:
Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.
The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance parameters of feeding line system.
360 degree high feed level; open grill design provides easy access; even feed distribution within the pan
Automatic Nipple Drinking:
Square water supply pipe 22mmx22mm.
Light resistant water pipe prevent algae.
Nipple with stainless steel body and plastic shell.
Galvanized support pipe.
Easy push together assembly.
Folding hangers hold the water pipe firmly in peace.
Cooling Pad System:
Length* Width*Thickness: it can be tailor made based on henhouse .
Frame: Galvanized Steel, Aluminium Alloy and Stainless Steel
Color: Brown, Brown&Green, Green, Black

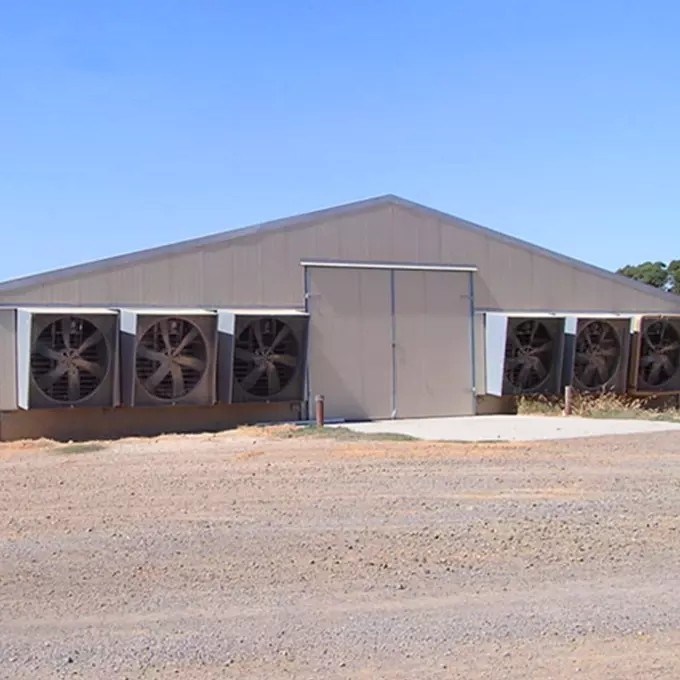

Ventilation Feeding:
| Consists | Item Name | Specifications | Remarks |
| 50" fan, 36" fan, frequency converter, air inlet, air inlet motor, manual winch, right and left cart with accessories | 50" fan | SIEMENS motor | 1.Special production process to ensure the smooth running of low noise and no vibration;2.Japan imported belt, to ensure long-term use without deformation;3.Air inlet adopts reasonable design mechanism, easy to open, good seal and heat preservation performance. |
| 36" fan | SIEMENS motor | ||
| frequency converter | 3kW | ||
| air inlet | three direction | ||
| air inlet motor | reliable and long service life | ||
| manual winch | H-1500-B | ||
| right and left cart with accessories | reliable and long service life |
Service:
1. We can supply both steel structure chicken house and inner full set automatic equipment for both laying hens and broilers
2. All the steel frame are galvanized steel
3. Insulation:galvanized steel sheet + glass wool composite at project sit or use EPS /glass wool sandwich panel
4. For layer /laying hens: we can supplier H type cage( battery cage) and A type cage,feeding line/drinking line /manure clean
system /spray indirect system are all automatic
5. For broilers: You can chose feed on floor or on the plastic floor,all the equipment we can supplier
6. We also can design and supplier equipment for you if you want to incubation and slaughter yourself. Including slaughter
workshop we can do one stop service.
System Pictures:
