Full Automatic 12 Birds PP Chicken Nipple Drinker System

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F03
Minimum Order Quantity: 1 house
Price: 2000 - 70000 USD
Packaging Details: Standard
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Name: Poultry Chicken Drinking System Nipple Drinker: 360 Degree Or 180 Degree
Advantage: Full Automatic Operation Water Pipe: Dia 25mm Pipe Or 22mm Square Pipe
Cup Material: Pure PP Nipple Capacity: 15 Nipples/3m, 12 Nipples/3m
High Light:

Auto Chicken Nipple Drinker System


PP Chicken Nipple Drinker System


180° broiler nipple system

Product Description

                                                           Automatic Poultry Nipple Drinking System for Broiler Farm House Shed


We can supply the follow equipments for chicken farm:

1. Main feed line system

2. Automatic pan feeding system

3. Automatic nipple drinking system

4. Ventilation system

5. Cooling pad system

6. Environment control system

7.Foggy system

8.Heating system

9. Plastic Slat system



Features of nipple.

The nipple sheel is made of high-quality engineering plastics, and the valve rod inside is made of high-quality stainless steel. All these features make it anti-corrosion , anti-rust, and more than ten years’service life.

Double-decked seal structure can effectively avoid wasting water and the resulting impact on the environment humidity.

Stem can rotate freely at 360 degree to meet bird water demands of different periods.


Feeding capacity

Brolier: 8-12 birds/nipple

Birds in cage: 12 birds/nipple

Duck: 10 birds/nipple


G.I. Water Line Supporting Pipe

Hot galvanized sheet rolling forming technology, galvanized alyer 275g/m2, with reinforcing ribs, more rust-resistant and longer service life compared with welded pipe.



Front part of the drinking line:

Quality of the water is of high importance to most drinking system. Speical desing of our front part can supply water and dose medicine, it can also wash sediment and dirt effectively with it’s large diameter clean-tube. All these can protect the system and reduce the workload.


PVC tube and balance pipe

Balance pipe Hot galvanized pipe
Drink pipe Mater PVC
Length 3m
width 25mm
hole 12-hole/15-hole

Drip cup and nipple

Pressure regulator Adjustable pressure range :0-0.6MPa
Nipple shell High quality engineering plastics
Valve rod High quality stainless steel
Lifetime 10 years
High sensitivity 360°

Doser, pressure regulator anf filter

doser, Injection rate:02.-2%
Pressure regulator Operating pressure:0.3-6bar
Filter Backlashing filter is equipped with handle,easy for operation

Hanging accessaries

Model 150 take-off and landing winch Nylon pulley
Two-link card round Etc


Pressure regulator with large water flow

Massive recoil tuner, stable tuning, high dexterity, sufficient and even distributed liquid, neat waterline reflush , save water and time

Standard double ball valve , easy to change

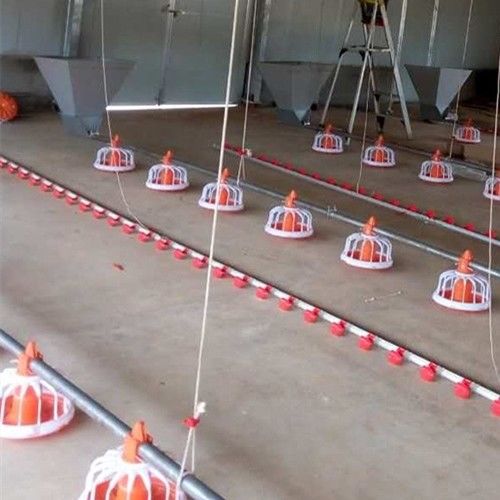

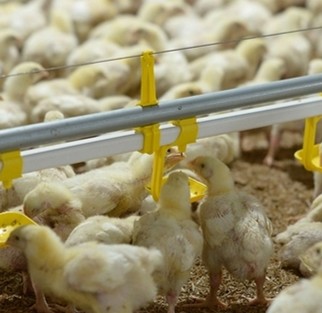

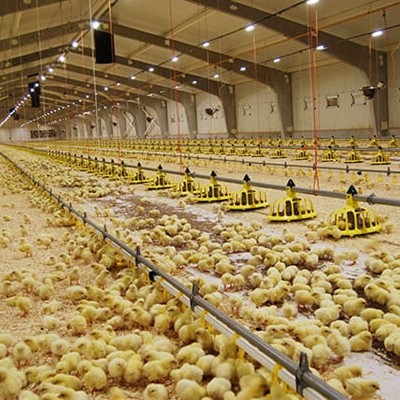

System Pictures:


Full Automatic 12 Birds PP Chicken Nipple Drinker System 0


Full Automatic 12 Birds PP Chicken Nipple Drinker System 1


Full Automatic 12 Birds PP Chicken Nipple Drinker System 2
