380V Nipple Drinker Automatic Feeding Machine For Poultry

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F03
Minimum Order Quantity: 1 house
Price: 2500 - 70000 USD
Packaging Details: Standard
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Name: Poultry Chicken Water Drinking Type: Auto Drinking System
Advantage: Intelligent Control,saving Labour Nipple Material: POM Plastic And 304 SS For Nipple Drinker
Nipple Capacity: 8-12/nipple Voltage: 220V/380V
High Light:

Automatic Feeding Machine For Poultry


Nipple Drinker pvc chicken feeder


380V linear feeder poultry

Product Description

                                                           Automatic Poultry Nipple Drinking System for Broiler Farm Project


We can supply the follow equipments for chicken farm:

1. Main feed line system

2. Automatic pan feeding system

3. Automatic nipple drinking system

4. Ventilation system

5. Cooling pad system

6. Environment control system

7.Foggy system

8.Heating system

9. Plastic Slat system



1. Nipple Drinker

Components of Nipple Drinker:

(1) Plastic frame (supports stainless nipple drinker and hooks onto tubes)

(2) Stainless nipple drinker

(3) With 360 degree sensitivity, never get rusty, leak and make sure water falling smoothly.


Features of nipple:


1. Drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
2. Provide the right amount of water for their climate and house conditions.
3. The single-arm water receiving cup with a reasonable structure is more suitable for new culture idea

4. Nipple is easy to be dismounted and replaced

5. The service life of the high-quality stainless steel material with optimum anti-corrosion performance can reach more than 10years




1.Clean water---direct drinking for Chicken from nipple drinker, No spiling and soaking, like the original container style drinker, to make sure chicken can get clean, fresh water, which can avoid some bird diseases.

2.Save labor---connect with PVC pipe or water container, do not need to check the water condition very often, just need to make sure PVC pipe connect with water or the water container have water.

3.Easy for Chicken to use it---Bright red/yellow/orange design, attract to birds or chicken and the nipple drinker dispense a drip of water whenever they are pecked, they can avoid some birds diseases for chicken with playing.

4.Easy to clean for nipple, because of removable parts


2. Drip cup



1)Style: Double/Single Arm

2)Material : high quality pp/pvc plastic

3)Color : red , yellow ,orange



3. Water pipe


We have two kind of water pipe : round pipe which is 25mm in diameter , or square pipe which is 22mm in diameter .


4.Water regulator


1)Color: yellow or red

2)Material : high quality PVC, plastic

3) Water Regulator is installed at the head or middle of drinking line.



5.Hanging system

Proper height is very important for healthy growth of bird and the height

is adjustable .


Product Name Automatic Chicken Feeding Pan System
pan material PP
pan color red&white,orange&white
pan capability 40-50 birds/pan
pan specification 3-4 pan/3m
pan 14 grills
pipe diameter 75mm*3.6mm
pipe material PVC
Size 36*36
Feature Durable
Application chicken, broiler, breeder etc


Automatic pan feeding system:

Automatic pan feeding system consists of driving device, hopper, conveying pipe, auger, suspension lifting device, anti-perching device and feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

1) High-quality special driving reduction motor
Power: 0.75kw, Voltage:380V Frequency: 50HZ, Three-phase
2) V-shaped Hopper
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-DIP galvanized sheet
3) Feeding Pipe
Diameter of conveying pip: Φ 45mm
Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 g/


Product name Poultry water feeder
Size customizable
Color Red and Yellow
Material ABS polypropylene
function Poultry water feeder
Product Keywords broiler nipple drinker,plastic bird drinkers,automatic poultry drinkers



System Pictures:

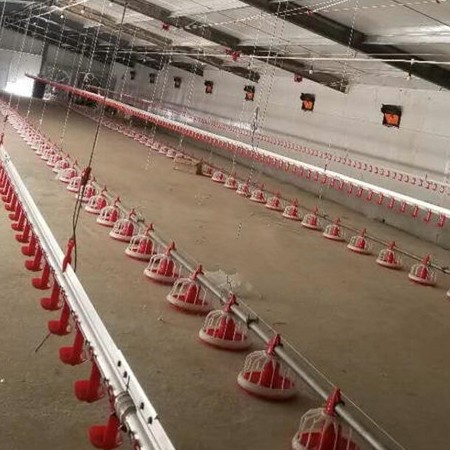

380V Nipple Drinker Automatic Feeding Machine For Poultry 0

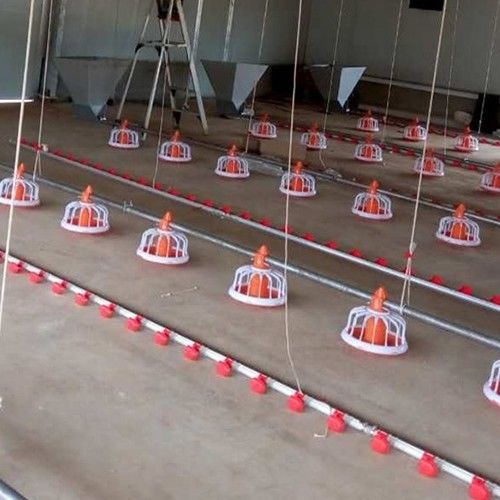

380V Nipple Drinker Automatic Feeding Machine For Poultry 1

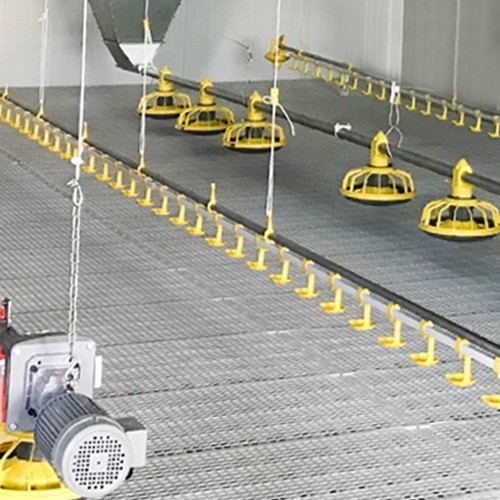

380V Nipple Drinker Automatic Feeding Machine For Poultry 2
