304 SS Broiler Breeder Farm Nipple System In Poultry Farm

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F01
Minimum Order Quantity: 1 house
Price: 3500 - 70000 USD
Packaging Details: Standard
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 houses per month
Detail Information
Water Pipe: 3m 22x22mm PVC Square Pipe Nipple Qty: 15nipples/3m Or 12nipples/3m Or 12nipples/4m
Application: Broiler Farm Shed / Breeder Farm Shed Material: POM Plastic And 304 SS For Nipple Drinker
Life Span: Over 10 Year Production Time: 15 Days
High Light:

nipple system in poultry farm


3m poultry farm drinking system


2.2cm chicken nipple drinker

Product Description

                                                           Automatic Poultry Nipple Drinking System for Broiler Farm Project


We can supply the follow equipments for chicken farm:

1. Main feed line system

2. Automatic pan feeding system

3. Automatic nipple drinking system

4. Ventilation system

5. Cooling pad system

6. Environment control system

7.Foggy system

8.Heating system

9. Plastic Slat system



3.Automatic nipple drinking system:

(1). Function:

The system can provide clean and fresh water to broiler chickens steadily, the water will be out when birds touch nipples.

Our nipple's rod can be movable in 360 degrees, easy to drink.

(2). Specification:

a) Waterline front system

This front part is controller of water, it's main function is to adjust water supplying pressure

and stabilize drinking volume, which is usually installed in control room, include:

b) Pressure regulator

Good regulating stability, high switching performance;

Water supply is sufficient&equality;

Recoil cleaning with good cleaning result, save time and water;

Good quality movable valve, easy to change.

c) Nipple drinker lines:

The drinking line specification: 15 nipples/3m, 12 nipples/3m



Poultry Automatic Feeding System:

Diameter of conveying pipe: φ75mm, φ90mm
Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h

Material level sensor from Germany time delay range 0 to 2 hours


Nippler drinker and drinker cup

High quality enginnering plastic and stainless steel. 360 degree movable

Double-sealing structure with good seal ability to avoid leaking.

Single-arm drip cup with a reasonable structure is more suitable for new culture idea.

Pressure regulator
Double water-inlet-tube and flushing pressure regulator ensure large water flow.
Convenient waterline flushing, which can save water and time. It is equipped with the standard double ball valve, which is easy to change.

Water-level display pipe
Use high transparency and impact resistant material, sturdy and durable, and convenient to watch water level.
Poultry Days Water Level Height(mm)
1~ 7 days 50~80mm 8~14 days 80~200mm ≥ 15 days 200~350mm
Hanging system
It is easy to adjust the height of drinking system in different poultry growth. It is very important

to keep a right and appropriate height,too high or low can cause poultry bone distortion, which

is bad for poultry growth and waste water.


Broiler Feeding System:


Including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor.

The main function of the system is to transport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop.


Product name Poultry water feeder
Size customizable
Color Red and Yellow
Material ABS polypropylene
function Poultry water feeder
Product Keywords broiler nipple drinker,plastic bird drinkers,automatic poultry drinkers



System Pictures:

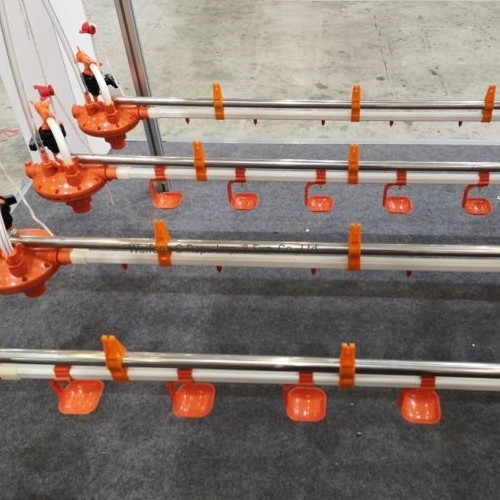

304 SS Broiler Breeder Farm Nipple System In Poultry Farm 0

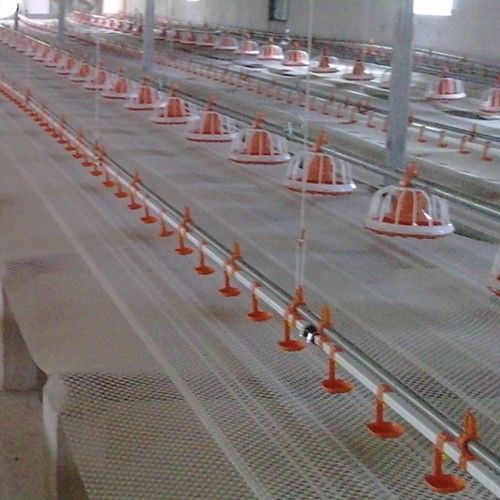

304 SS Broiler Breeder Farm Nipple System In Poultry Farm 1

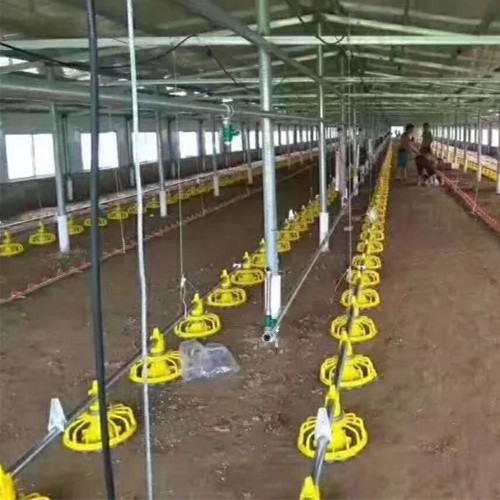

304 SS Broiler Breeder Farm Nipple System In Poultry Farm 2
