50 Inch Exhaust Fan

Basic Information
Place of Origin: China
Brand Name: XDA
Model Number: XDA-F7
Minimum Order Quantity: 10 set
Price: 1000 - 10000 USD
Packaging Details: Standard
Delivery Time: 15 - 30 days
Payment Terms: L/C, T/T
Supply Ability: 10000 sets
Detail Information
Blade Material: Stainless Steel Size: 36" / 50"
Poultry Fan Motor: 380V 50HZ Phase: Single Or Three Phase
High Light:

50 inch exhaust fan

,

exhaust ventilation fan with shutter

,

exhaust fan 6 inch with shutter


Product Description

50" Fans Ventilation System for Automatic Poultry Broiler Breeder Farm Equpment



Automatic Poultry House:



Poultry house Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purling Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System Purling Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall panel Sandwich Panel / Corrugated Steel Sheet/steel wire
Accessories Window Aluminum Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rain spout PVC



Automatic Poultry Keeping system:



1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.

2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.

4. Environmental control system: Automatically control the temperature, humidity, light, etc.

5. Fogging system: Regularly disinfecte the poultry house.

6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.



Fans Feature:



1.275g good quality galvanized sheet frame and shutters, durable. Special fan blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.



2.Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete, high corrosion resistance.



3.Chinese famous motor OEM by special design for fan(or you can choose Siemens motor), the first put in the phase lack protection device which would power off when shortage of electricity.



4.Fan bearing adopts imported double-row bearing with special waterproof design, water cant enter. High strength, lower noise, maintenance free and long service life.



5.Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.



6.Using the most advanced automatic belt tensioner to ensure working efficiency and good performance.



7.Hot-dip galvanized blade support and safe net ensure never rust.



8.Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.

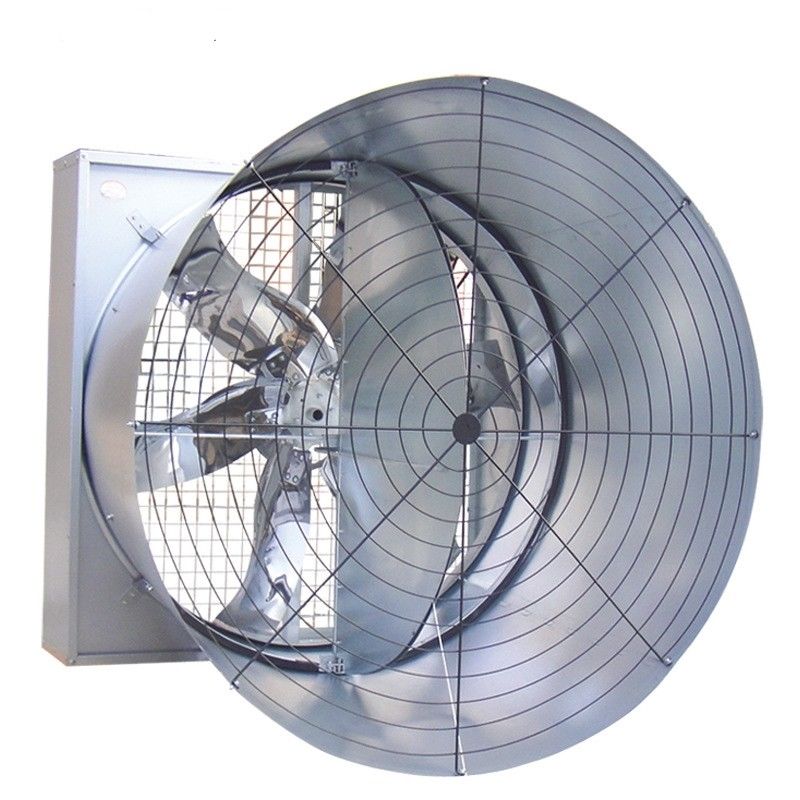

Butterfly Cone Fan Parameter:



Double door close Using advanced front double door opening device, small wind resistance, good sealing, high efficiency, lengthened cone design improve exhaust power.
Material Zinc coating weight of Galvanized sheet is 275g/m2,avoiding rust effectively.
Rubber sealing Fan double doors closed with the rubber sealing which effectively avoid air backflow when start fans at different time. Greatly improve the operation efficiency by 15-20% compared with the same power fan.
Fan blade Fan blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
intelligent dynamic-balance tester Fan blades are adjusted by intelligent dynamic-balance tester, ensure the fan smooth running, lower vibration, less noise, increase stability.
B type belt Use B type belt, lifespan is 3 times longer than A type belt.
Spoort and safe net Hot-dip galvanized blade support and safe net ensure never rust.
CNC production line Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.

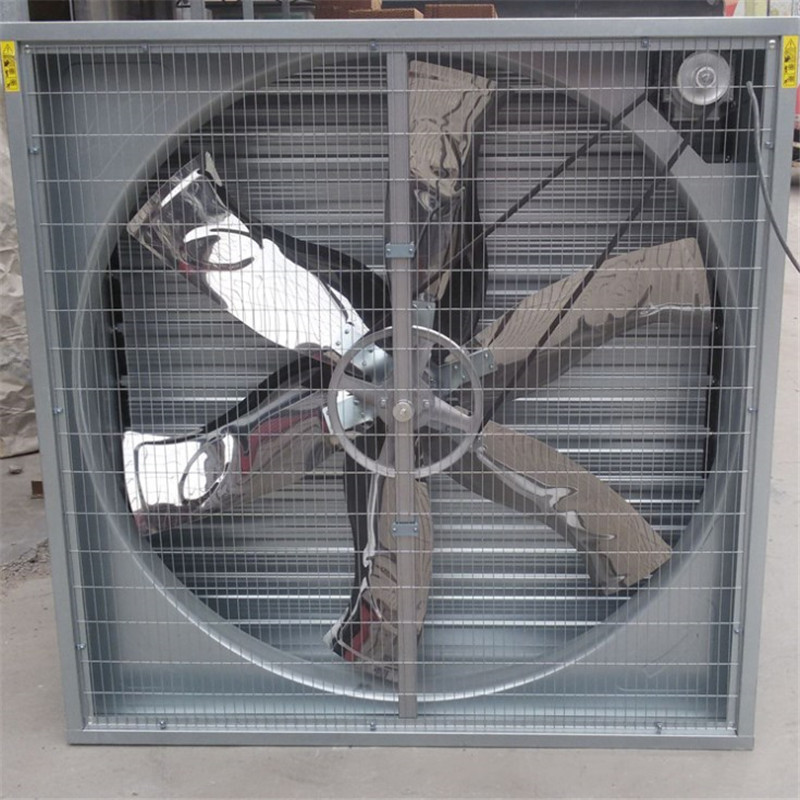

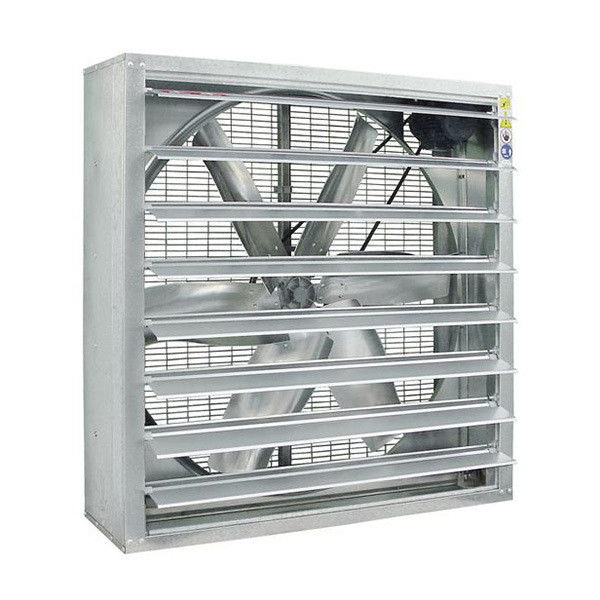

50 Inch Exhaust Fan 0



50 Inch Exhaust Fan 1



50 Inch Exhaust Fan 2



50 Inch Exhaust Fan 3
