Automatic Poultry Farm Equipment for Broiler/Breeder/Duck
Automatic Poultry House:
| STEEL STRUCTURE COMPONENTS | ||
| Main frame | Main beam | Hot rolled H beam,buildup H beam,Q235B/Q355B grade steel |
| Secondary beam | ||
| Main column | Hot rolled H beam,buildup H beam,Q235B/Q355B grade steel | |
| Wind-resistance column | ||
| Secondary frame | Tie bar | Round pipe |
| Bracing | Steel angle bar/Round bar,X-bracing | |
| Purline | C/Z section pre-galvanized steel | |
| Hanger rod | 12mm galvazined round bar | |
| Knee brace | 50x5 EA | |
| Roof and wall system | Roof panel | Single corrugated steel sheeting,PU sandwich panel,Rockwool sandwich pnael,glass wool sandwich panel,EPC sandwich panel |
| Wall panel | ||
| Skylight panel | 2mm thickness FPR | |
| Window | PVC/Plastic steel/Aluminum window | |
| Door | Electric/hand roller door,walk door etc | |
| Gutter | Galvanized/stainless steel gutter | |
| Downpipe | PVC/Aluminum downpipe | |
| Ventilating system | Exhaust fan etc | |
| Bolts | Anchor bolts,high strength bolts,normal bolts | |
Automatic Poultry Keeping system:
1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.
4. Environmental control system: Automatically control the temperature, humidity, light, etc.
5. Fogging system: Regularly disinfecte the poultry house.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.
Breeder Chain Feeding System:
Automatic Prefab Steel Structure Poultry Farm House With Design Building Turnkey Project
The driving device is cyclical pin wheel reducer, which working more stable, feeding averagely, low noise compare with gear reducer, the feeding speed can up to 36m/min.
The feed trough and connection parts is elevating style, the height can be adjusted according to the different broiler life stage.
The surface of 90 digress corner wheel and guiding orbit have the special treatment of hardness, the bear is no need fill oil whch material is alloy whicn anti. corrosion, and have the long working life
The feeding trough is made of anti -corrosion and rust steel, at the same time equipped with feed grill which size is 44mm, which effectively separate the cock from female breeders, The grill width is variable according to customer needs.

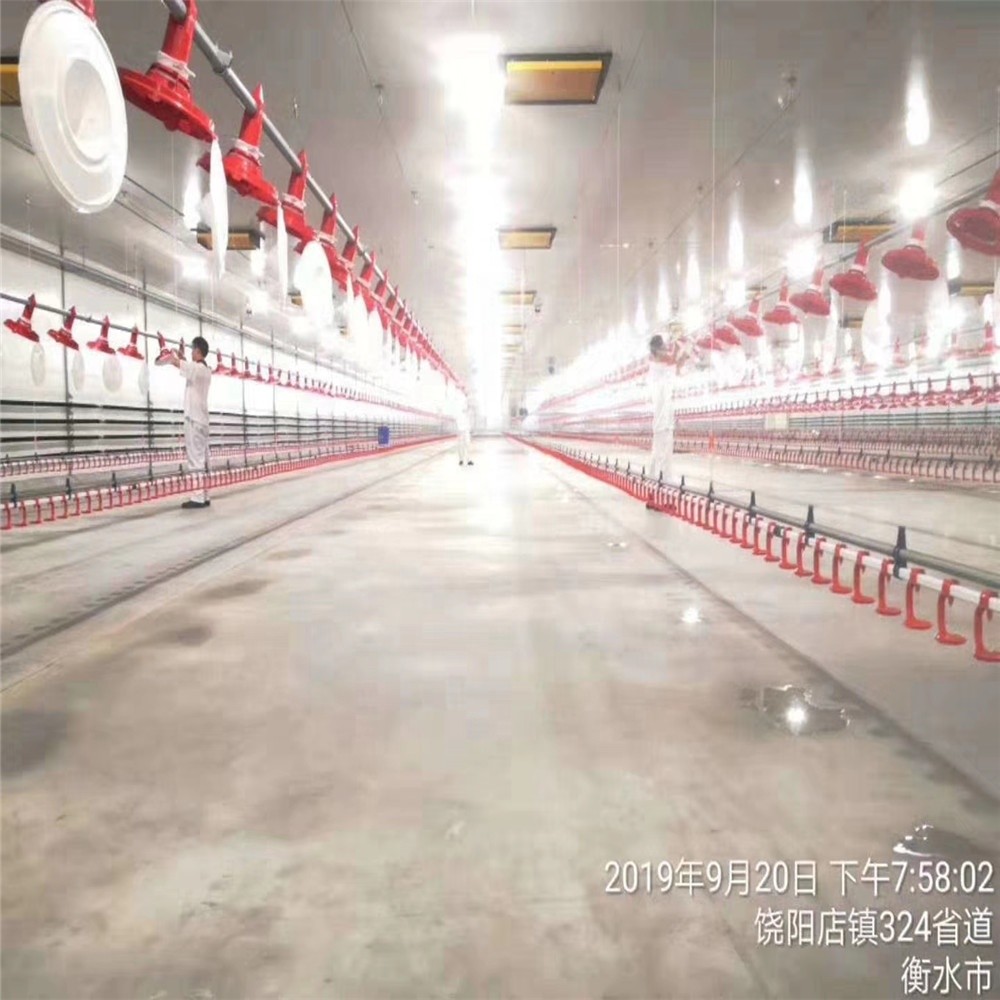

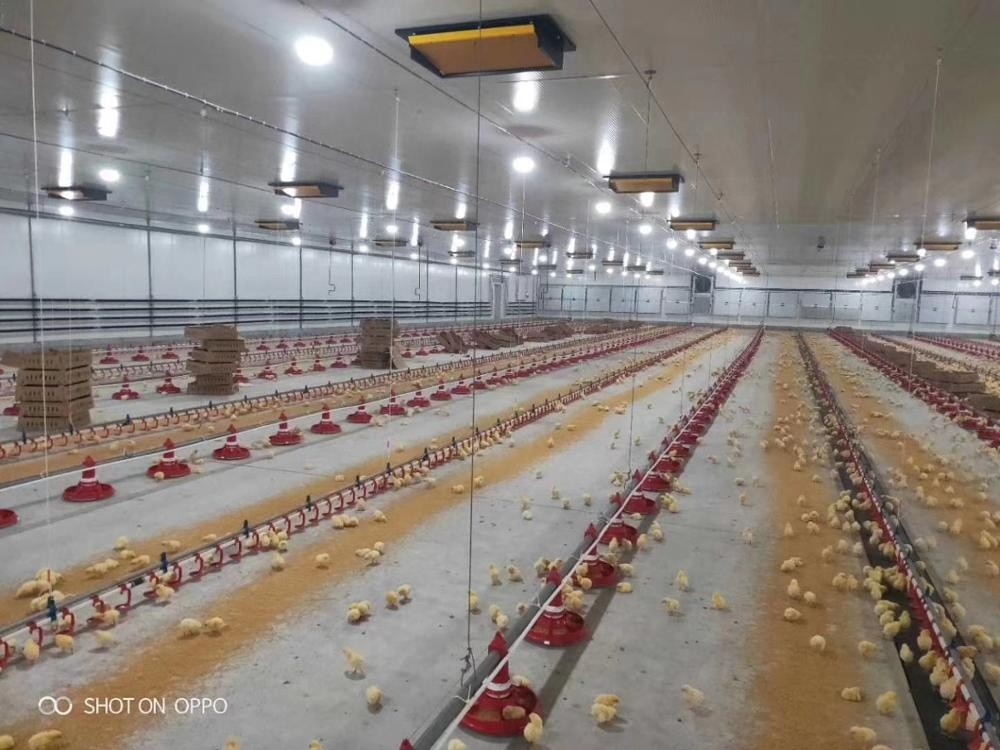

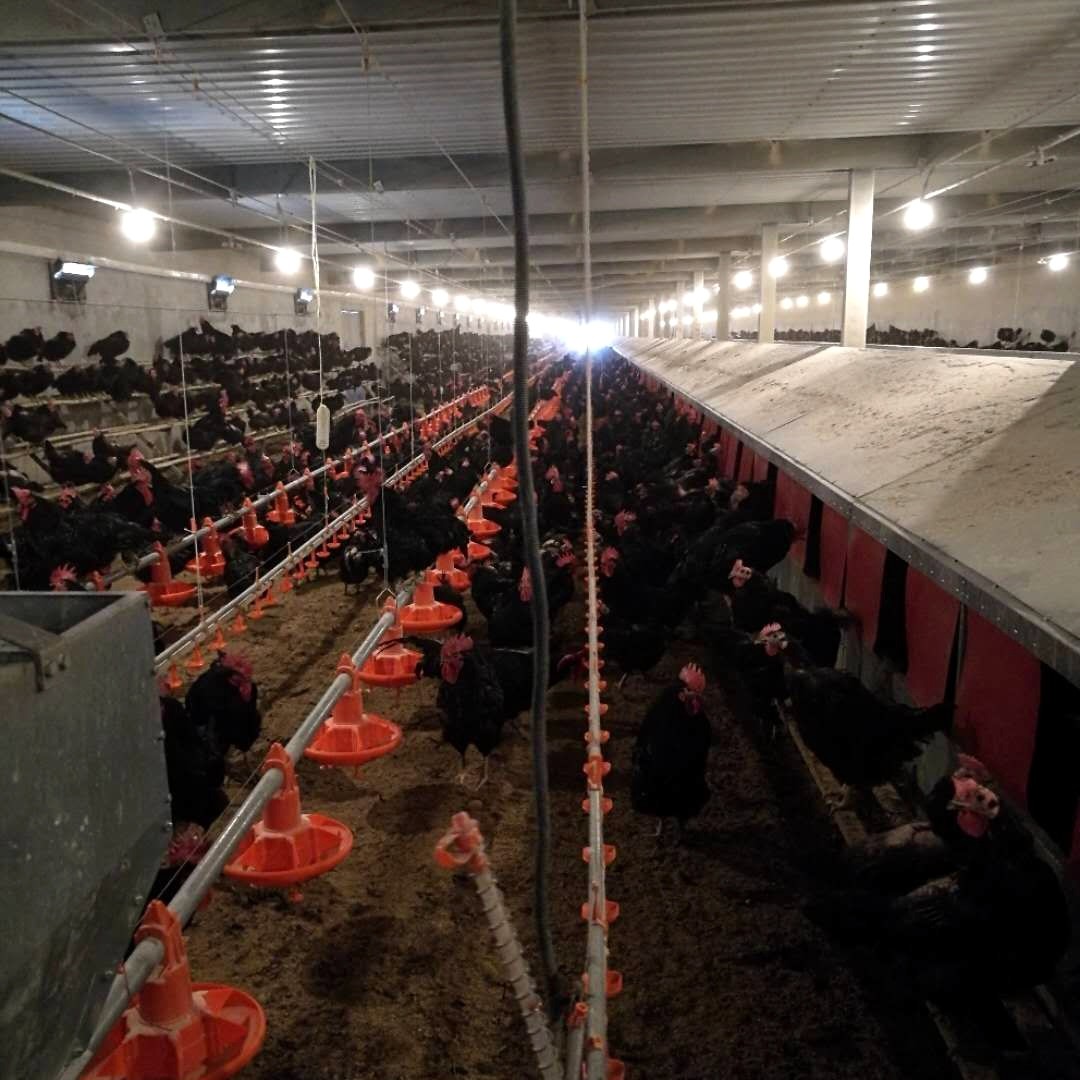

System Pictures:
