Detail Information

Name:	Chicken House Cooling Pad	Size:	Customized Size
Type:	7090/7060	Application:	Poultry House Cooling System
Packing:	Cartons	Contact:	Whatsapp 008618830728667
High Light:	honeywell evaporative cooler replacement pads , honeywell co60pm replacement pads , cooling pad for poultry farm

Product Description

7090/5090/7060 Corrugated Cellulose Evaporative Cooling Pad Price for Air Cooler

Cooling pad surface coated with special material, which can ensure the cooling pad surface no moss, and inhibit the growth of bacteria; The top set with dredge water cooling pad, to make sure uniform water spread.

1.Use the new material and the spatial crossing linking technology,high hydroscopic,high water-resistant,anti-mildew and long service life.

2.The product involves surface active agent,absorb water naturally,fast speed of pervasion,lasting effectiveness.A drop of water can diffuse in 4-5 seconds.Height of water absorption:60-70mm/5minutes,200mm/1.5hours,completely achieve international standard.

3. Large evaporation area,cooling efficiency as high as 80%. 4.Strict production as per standard,width of 600mm cooling pad involves 85 sheets,raw material adopts imported kraft paper(100g/㎡,thickness:0.18-0.20 mm,tension resistance at 70N,absorbability height as 45mm/10min,moisture at 5%-8%,humidity at 18N)

Cooling Pad Color:◎ BROWN COLOR
◎ GREEN COLOR
◎ GREEN&BROWN COLOR ◎ ONE SIDE BLACK-COATED (WASHABLE)
◎ ONE SIDE GREEN-COATED(WASHABLE)
◎ ONE SIDE YELLOW-COATED(WASHABLE)

Cooling Pad Frame:
◎ Aluminum alloy frame
◎ Galvanized steel frame
◎ PVC frame
Specification Size:
◎ Thickness 100mm frame
◎ Thickness 150mm frame Note:Frame could be customized in any size.

It is the most economical and effective way to reduce temperature of chicken house in summer.even in the hottest summer,it can control thetemperature of chicken house under 30 degree,then make the effect of hot temperature on the growth of poultry to miniumum.

Advantages:

Hygroscopicity: Though with the special craft processing crossing linking

technology , corrugated paper has high absorbability, high water resistant ,

anti-midew and long service life.

Dry solution: When water stop flowing on the cooling pad surface , the protective coating will dry quickly , so it could prevent parasitic microbes survive on the surface , thus inhibiting the algae and other organic matter from breeding in the surface.

Non-porous surface: Prevent the algae and mineral substance from residing in the deep , and drying off the surface.

Cooling pad parameters:

Thickness : 100mm; 150mm Height : 1660mm ; 1960mm; 2160mm

Frame : Galvanized sheet and Aluminium alloy Width: 300mm; 600mm

Aluminimus alloy frame : Hign strength , good corrosion resistance , water distribution uniformity , beatutiful and practical.

Cooling pad instructions for use:

Installation way : Sinking pump located into the water pool , it can reduce water pollution ,

and also make the ground clean and clear.

Water output control : Control the water output by regulator , when supply water ,

it make the cooling pad wet uniformly , and the water will flow down along the

cooling pad corrugated ripple.

Water quality control : Up water location has filter , it can clean the water ,

the cooling pad surface has special coating , it can prevent the bacteria and

algae from growing effectively.


Poultry Industry Evaporative cooling systems are vital for optimizing the air quality inside tunnel ventilated poultry buildings during periods of hot weather. By maintaining lower air temperatures heat-stress related problems are reduced.
Horticulture Industry A consistent air temperature is very important inside a greenhouse. There is a delicate balance that must be maintained for maximum production. Using a high quality evaporative cooling media within your evaporative system will assures that balance.
Dairy Industry Heat stress on dairy cows can result in a decrease in milk production. A recirculation type evaporative cooling system using high quality evaporative cooling media will minimize production loss during extreme outside temperature spikes.
Swine Industry Maintaining a consistent air temperature inside a swine facility is key to animal comfort and production. Installing an evaporative cooling system with pad is a proven way to provide a more consistent air temperature and quality...
Industrial Evaporative cooling is an energy efficient solution for the industry, where hot indoor climate leads to low productivity and unsatisfied working staff. this can increase the number of errors and accidents in your production lines.
Commercial evaporative cooling media can be ordered in customized sizes to fit in any air handling unit working with evaporative cooling technology, to improve the working environment of your business, not only for your customers but also for your staff.
Residential The media you use on your cooler will directly affect its performance, the consistent performance of  cooler pad will enchance the performance of your cooler.



Model	Height(mm)	Width(mm)	Thickness(mm)	Flute	Angle
7090	1500/1800/2000/Customized	300/600/Customized	100/150/200/Customized	7mm	45°/45°
7060	1500/1800/2000/Customized	300/600/Customized	100/150/200/Customized	7mm	45°/45°
5090	Customized	Customized	Customized	5mm	45°/45°

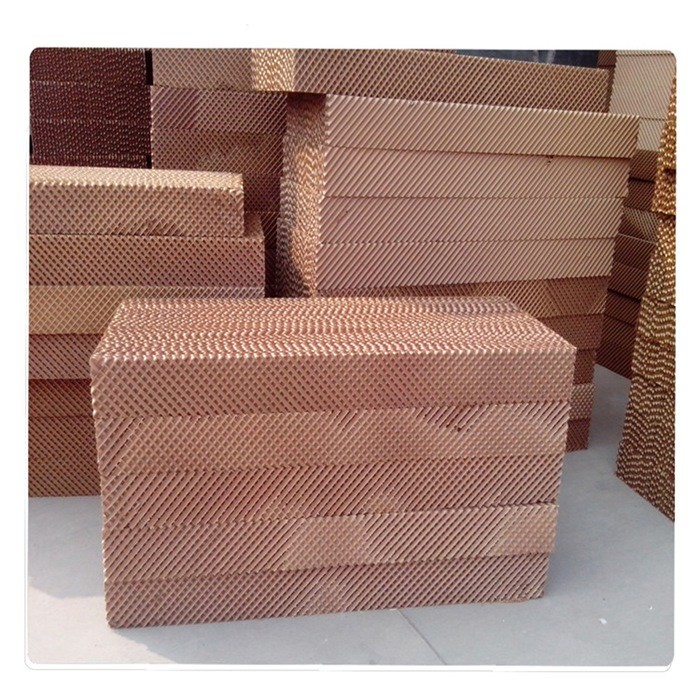

Honeywell Evaporative Cooler Replacement Pads 0

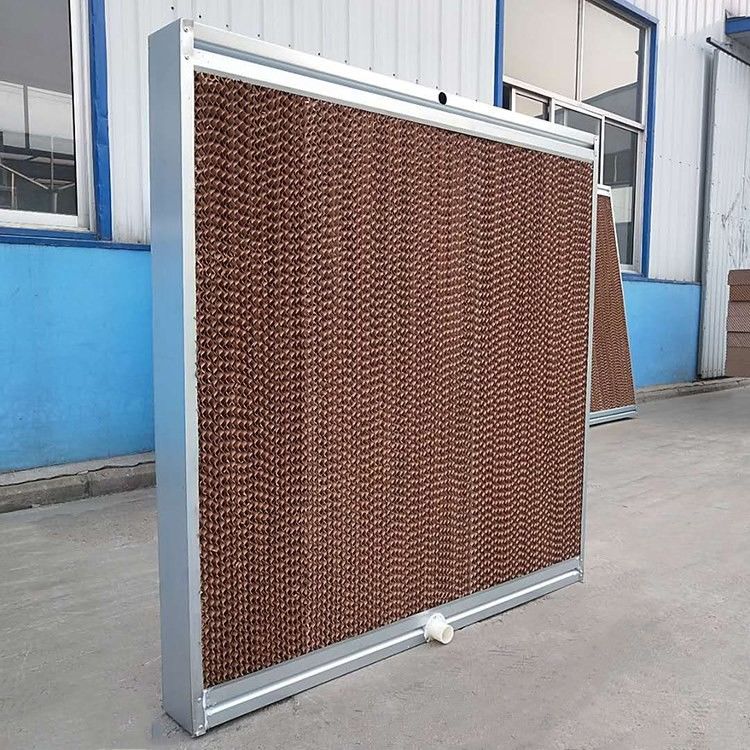

Honeywell Evaporative Cooler Replacement Pads 1

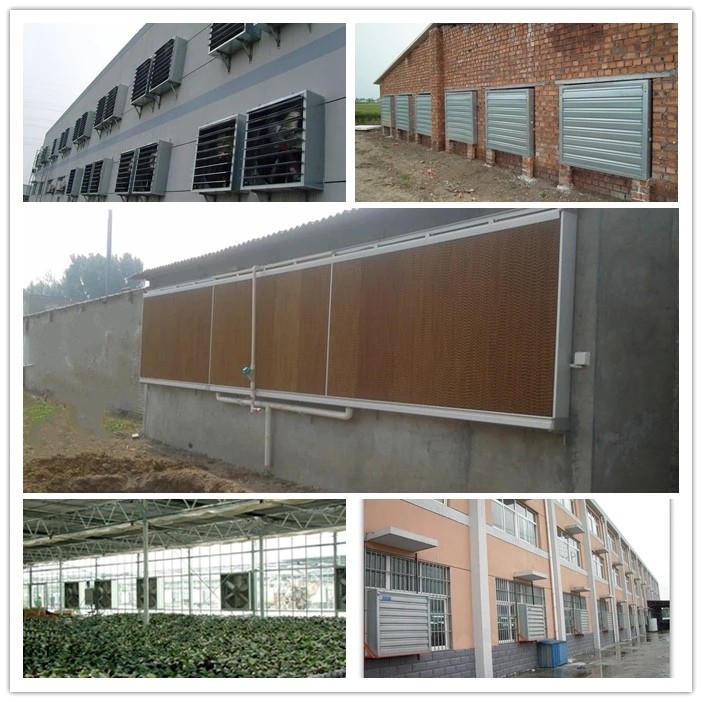

Honeywell Evaporative Cooler Replacement Pads 2
