| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F01 |
| Minimum Order Quantity: | 1 house |
| Price: | 4500 - 70000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 houses per month |
| Water Pipe: | 3m 22x22mm PVC Square Pipe | Nipple Qty: | 15nipples/3m Or 12nipples/3m Or 12nipples/4m |
|---|---|---|---|
| Application: | Broiler Farm Shed / Breeder Farm Shed | Material: | POM Plastic And 304 SS For Nipple Drinker |
| Life Span: | Over 10 Year | Production Time: | 15 Days |
| Support: | Galv. 25mm Or 26.7mm | Type: | Automatic |
| High Light: | 26.7mm Chicken Nipple Drinker System,PVC Chicken Nipple Drinker System,POM plastic quail feeding system |
||
Automatic Poultry Nipple Drinking System for Broiler Farm Project
Nipple Drinking System:
Nipple style watering system had been typically used by professional chicken farmers for many years due to many outstanding reasons. No more poop in water. No spiling and soaking the nesting material so the chickens can get nature gravity fed by fresh, clean water without dieases.
Consist of :
1. Nipples
2.Drip cup
3.Water pipe
4.Winch
5.Water regulator
6.Hanging system
7.End water outfall system
Specifications
1. Nipple Drinker
Components of Nipple Drinker:
(1) Plastic frame (supports stainless nipple drinker and hooks onto tubes)
(2) Stainless nipple drinker
(3) With 360 degree sensitivity, never get rusty, leak and make sure water falling smoothly.
Advantages:
1.Clean water---direct drinking for Chicken from nipple drinker, No spiling and soaking, like the original container style drinker, to make sure chicken can get clean, fresh water, which can avoid some bird diseases.
2.Save labor---connect with PVC pipe or water container, do not need to check the water condition very often, just need to make sure PVC pipe connect with water or the water container have water.
3.Easy for Chicken to use it---Bright red/yellow/orange design, attract to birds or chicken and the nipple drinker dispense a drip of water whenever they are pecked, they can avoid some birds diseases for chicken with playing.
4.Easy to clean for nipple, because of removable parts
Poultry Automatic Feeding System:
Diameter of conveying pipe: φ75mm, φ90mm
Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
Material level sensor from Germany time delay range 0 to 2 hours
| Product Name | Automatic Chicken Feeding Pan System |
| pan material | PP |
| pan color | red&white,orange&white |
| pan capability | 40-50 birds/pan |
| pan specification | 3-4 pan/3m |
| pan | 14 grills |
| pipe diameter | 75mm*3.6mm |
| pipe material | PVC |
| Size | 36*36 |
| Feature | Durable |
| Application | chicken, broiler, breeder etc |

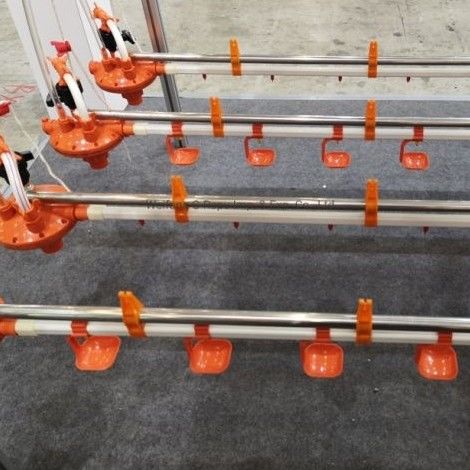

Nippler drinker and drinker cup
High quality enginnering plastic and stainless steel. 360 degree movable
Double-sealing structure with good seal ability to avoid leaking.
Single-arm drip cup with a reasonable structure is more suitable for new culture idea.
Pressure regulator
Double water-inlet-tube and flushing pressure regulator ensure large water flow.
Convenient waterline flushing, which can save water and time. It is equipped with the standard double ball valve, which is easy to change.
Water-level display pipe
Use high transparency and impact resistant material, sturdy and durable, and convenient to watch water level.
Poultry Days Water Level Height(mm)
1~ 7 days 50~80mm 8~14 days 80~200mm ≥ 15 days 200~350mm
Hanging system
It is easy to adjust the height of drinking system in different poultry growth. It is very important
to keep a right and appropriate height,too high or low can cause poultry bone distortion, which
is bad for poultry growth and waste water.

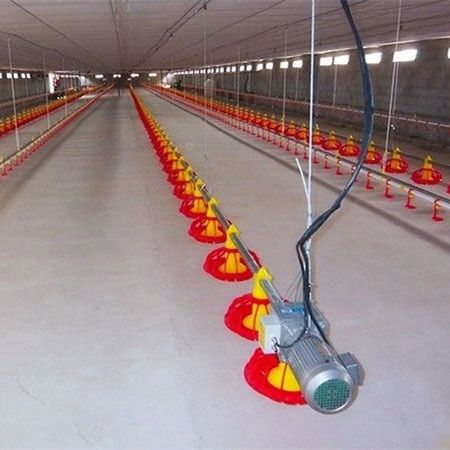

Broiler Feeding System:
Including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor.
The main function of the system is to transport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop.

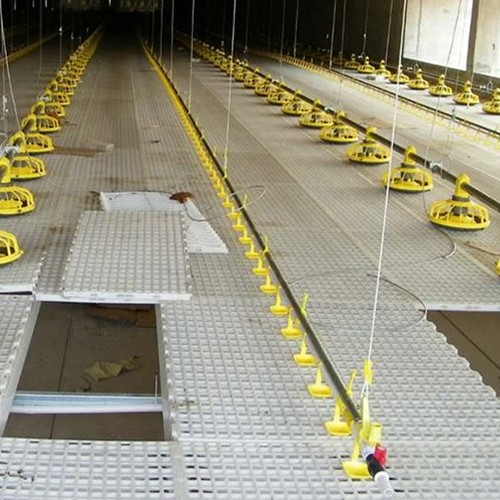

System Pictures:
