| Place of Origin: | China |
|---|---|
| Brand Name: | XDA |
| Model Number: | XDA-F01 |
| Minimum Order Quantity: | 1 house |
| Price: | 6000 - 30000 USD |
| Packaging Details: | Standard |
| Delivery Time: | 15 - 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 houses per month |
| Feeder Material: | PP | Life Time: | Over 15 Years |
|---|---|---|---|
| Use For: | Breeder/Broiler | Type: | Automatic |
| Feed Pipe: | 45mm Galv. Steel Pipe | Lead Time: | 15 -20 Days |
| Broiler Drinker: | 15nipples/3m | Contact: | Whatsapp 008618830728667 |
| High Light: | PVC Poultry Farm Equipment,4.5cm Poultry Farm Equipment,45mm Broiler Farm Equipment |
||
Automatic Poultry Broiler Breeder Farm Equipment of Complete House
Automatic Poultry Farm Equipment For Broiler Chicken Farming Complete Turnkey Project
Automatic Poultry House:
| Poultry house | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purling | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance System Purling | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel |
| Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet | ||
| Wall panel | Sandwich Panel / Corrugated Steel Sheet/steel wire | |
| Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rain spout | PVC | |
Automatic Poultry Keeping system:

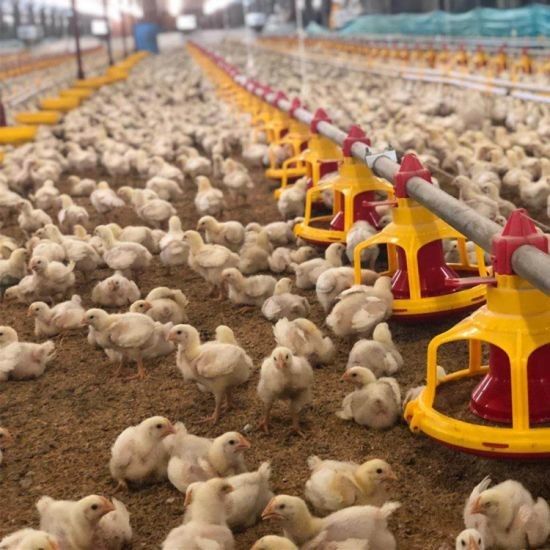

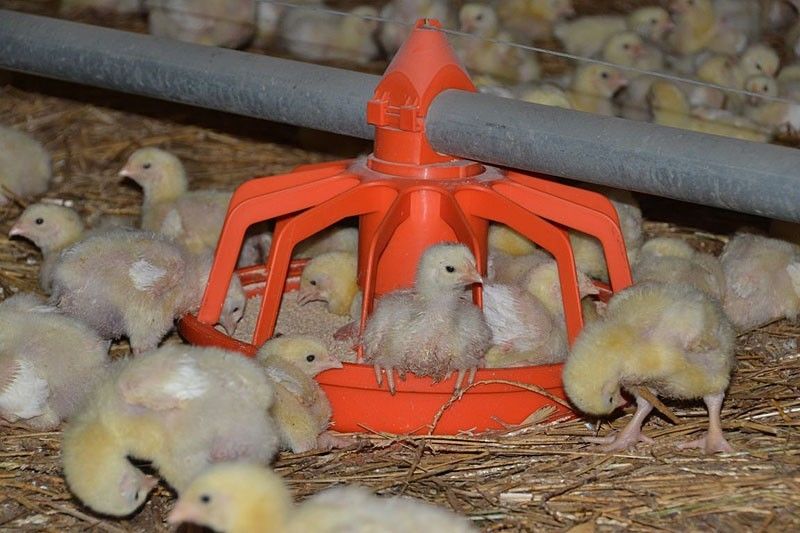

1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.
4. Environmental control system: Automatically control the temperature, humidity, light, etc.
5. Fogging system: Regularly disinfecte the poultry house.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.

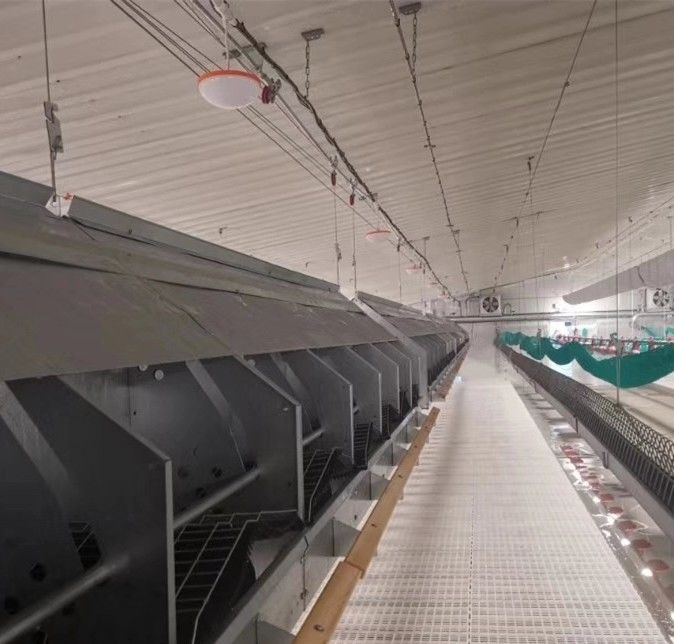

Breeder Chain Feeding System:
The driving device is cyclical pin wheel reducer, which working more stable, feeding averagely, low noise compare with gear reducer, the feeding speed can up to 36m/min.
The feed trough and connection parts is elevating style, the height can be adjusted according to the different broiler life stage.
The surface of 90 digress corner wheel and guiding orbit have the special treatment of hardness, the bear is no need fill oil whch material is alloy whicn anti. corrosion, and have the long working life
The feeding trough is made of anti -corrosion and rust steel, at the same time equipped with feed grill which size is 44mm, which effectively separate the cock from female breeders, The grill width is variable according to customer needs.
System Pictures:
